Removal [12/2023 - ]: Procedure

  1. SECURE VEHICLE
    1. For PC60:

      Refer to PROCEDURE - Step 1

    2. For UA81E / UA81F:

      Refer to PROCEDURE - Step 1

    3. For P810:

      Refer to PROCEDURE - Step 1
  2. REMOVE LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY
    1. GTY1237237Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) - -
  3. REMOVE LOWER NO. 2 INSTRUMENT PANEL PAD SUB-ASSEMBLY
    1. GTY1240512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) - -
  4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. For PC60:

      Refer to PROCEDURE - Step 1

    2. For UA81E / UA81F:

      Refer to PROCEDURE - Step 1

    3. For P810:

      Refer to PROCEDURE - Step 1

  5. REMOVE SHIFTING HOLE COVER ASSEMBLY
    1. GTY1230614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
      1. Apply protective tape to the area shown in the illustration.
      2. Disengage the 8 clips and claw as shown in the illustration to remove the shifting hole cover assembly.
      3. Disconnect the connector.
  6. REMOVE TRANSMISSION FLOOR SHIFT ASSEMBLY
    1. For PC60:

      Refer to PROCEDURE - Step 5

    2. For UA81E / UA81F:

      Refer to PROCEDURE - Step 5

    3. For P810:

      Refer to PROCEDURE - Step 5
  7. REMOVE UPPER CONSOLE COVER
    1. GTY1228028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape to the area shown in the illustration.
      2. Using a moulding remover, disengage the 2 clips and claw as shown in the illustration to remove the upper console cover.
  8. REMOVE INSTRUMENT PANEL BOX SUB-ASSEMBLY
    1. GTY1238460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  9. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  10. REMOVE COWL SIDE TRIM SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  11. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. GTY1228420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  12. REMOVE NO. 2 INSTRUMENT PANEL SAFETY PAD
    1. GTY1237024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction
  13. REMOVE NO. 1 SWITCH HOLE BASE
    1. GTY1234525Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  14. REMOVE DOOR SCUFF PLATE ASSEMBLY RH
    1. Use the same procedure as for the LH side.
  15. REMOVE COWL SIDE TRIM BOARD RH
    1. Use the same procedure as for the LH side.
  16. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. GTY1230509Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  17. DISCONNECT FRONT DOOR OPENING TRIM WEATHERSTRIP RH
    1. GTY1235043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
    1. GTY1240142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Apply protective tape to the area shown in the illustration.
      2. Using a moulding remover, disengage the 6 clips and 3 guides as shown in the illustration to remove the instrument panel finish panel end RH.
  19. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY
    1. GTY1227964Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

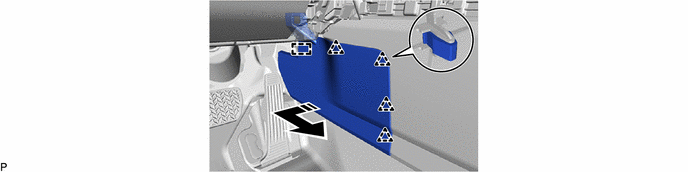

  20. REMOVE FRONT NO. 1 CONSOLE BOX INSERT
    1. GTY1236552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  21. REMOVE FRONT NO. 2 CONSOLE BOX INSERT
    1. GTY1235664Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  22. REMOVE BATTERY SERVICE HOLE COVER (for PHEV Model)

    Refer to PROCEDURE - Step 6

  23. REMOVE NO. 2 CONSOLE BOX HOLE COVER
    1. GTY1238209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Power Outlet Socket - -
      Place Hand Here Remove in this Direction
  24. REMOVE CONSOLE BOX ASSEMBLY
    1. GTY1233038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  25. REMOVE CONSOLE BOX WIRE

    HINT:

    • Perform this procedure only when replacement of the console box wire is necessary.
    • The illustration shown is an example only. The illustration may differ from the actual parts according to the model.
    1. GTY1234863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE STEREO JACK ADAPTER ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the lower center instrument panel finish panel is necessary

    Refer to PROCEDURE - Step 5
  27. REMOVE USB CHARGER SOCKET

    HINT:

    Perform this procedure only when replacement of the lower center instrument panel finish panel is necessary

    Refer to PROCEDURE - Step 12
  28. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY (w/ Panoramic View Monitor System)

    HINT:

    Perform this procedure only when replacement of the lower center instrument panel finish panel is necessary

    Refer to PROCEDURE - Step 9

  29. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

    HINT:

    Perform this procedure only when replacement of the lower center instrument panel finish panel is necessary

    1. GTY1240203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)
  30. REMOVE INSTRUMENT PANEL CUP HOLDER

    HINT:

    Perform this procedure only when replacement of the instrument panel cup holder is necessary.

    1. GTY1234861Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Use the same procedure for all instrument panel cup holders.
  31. REMOVE GLOVE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

    HINT:

    Perform this procedure only when replacement of the glove compartment door lock cylinder assembly is necessary.

    1. GTY1236529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Move the glove compartment door lever as shown in the illustration.
      2. Using a screwdriver with its tip wrapped with protective tape, press the cylinder lock plate to release it and pull out the glove compartment door lock cylinder assembly from the glove compartment door lever to remove it as shown in the illustration.
