Disassembly [09/2023 - 12/2023] : Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [09/2023 - ]
  2. REMOVE DECK BOARD ASSEMBLY (for HEV Model)

    Refer to PROCEDURE - Step 2

  3. REMOVE BATTERY SERVICE HOLE COVER (for HEV Model)

    Refer to PROCEDURE - Step 3

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    for T24A-FTS Gasoline Model:

    Refer to PROCEDURE - Step 3

    for T24A-FTS 1Motor-HEV Model:

    Refer to PROCEDURE - Step 2

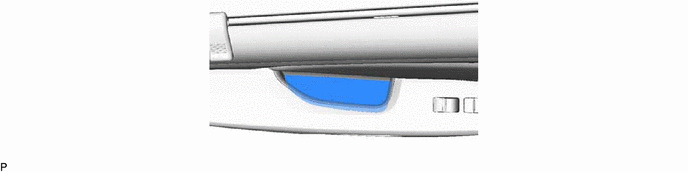

  5. REMOVE REAR DOOR ARMREST COVER
    1. GTY1237407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

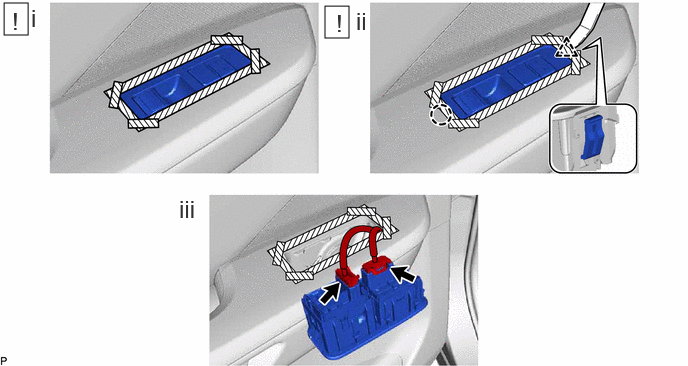

  6. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL
    1. GTY1234841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Apply protective tape to the rear door trim board sub-assembly as shown in the illustration.
      2. Using a moulding remover, disengage the clip and claw.
      3. Disconnect the 2 connectors to remove the rear power window regulator switch assembly with rear door armrest base panel.
  7. REMOVE REAR DOOR COURTESY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1

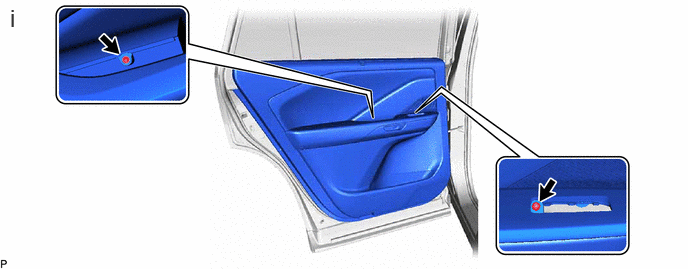

  8. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
    1. GTY1238335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 2 screws.

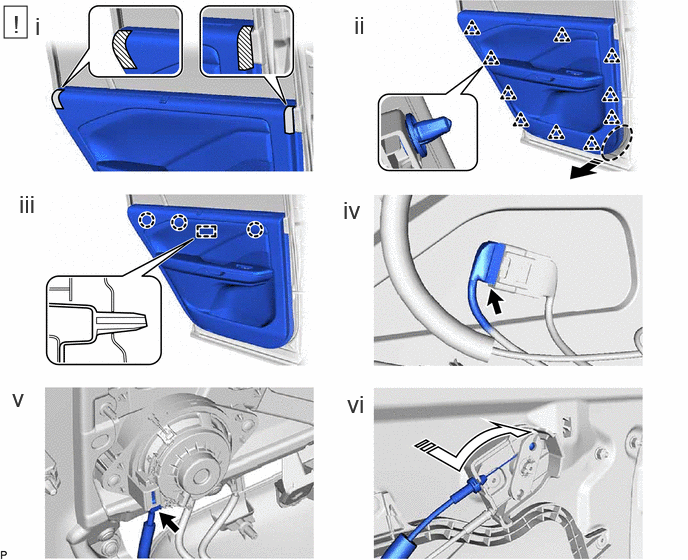

    2. GTY1227764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) - -
      1. Apply protective tape to the rear door panel as shown in the illustration.
      2. Disengage the 10 clips as shown in the illustration.
      3. Disengage the 3 claws and guide.
      4. Disconnect the connector.
      5. Disconnect the connector.
      6. Disconnect the rear door inside locking cable assembly as shown in the illustration to remove the rear door trim board sub-assembly.

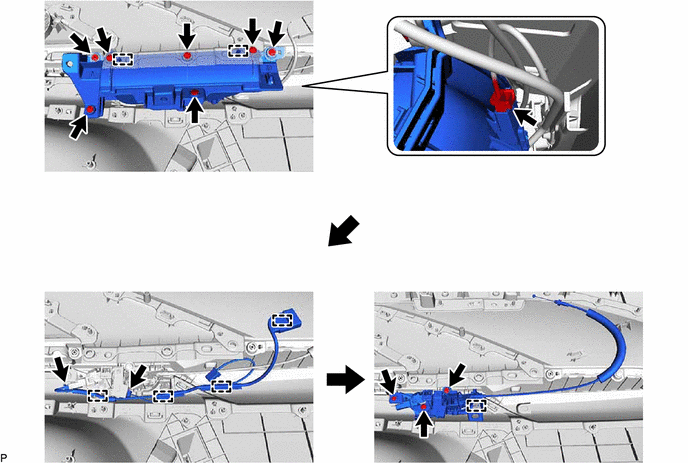

  9. REMOVE REAR DOOR INSIDE HANDLE SUB-ASSEMBLY
    1. GTY1239695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY

    Refer to REMOVAL [09/2023 - ]

  11. REMOVE REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY

    Refer to PROCEDURE - Step 6

  12. REMOVE REAR SPEAKER ASSEMBLY

    Refer to PROCEDURE - Step 5

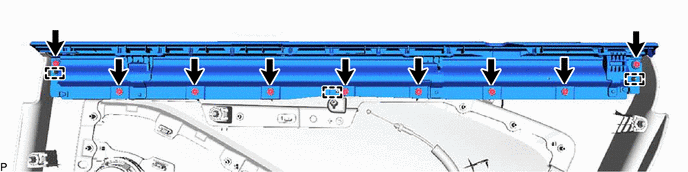

  13. REMOVE REAR CURTAIN SUB-ASSEMBLY (w/ Sunshade)
    1. GTY1237402Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE CURTAIN HOOK (w/ Sunshade)

    HINT:

    Use the same procedure for both curtain hooks.

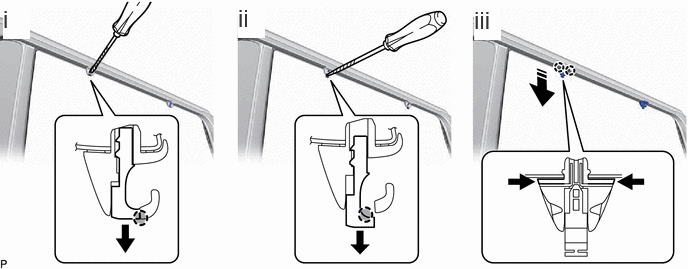

    1. GTY1197828Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Insert Screwdriver Here Remove in this Direction
      1. Using a screwdriver with its tip wrapped with protective tape, push out the pin as shown in the illustration.
      2. Using a screwdriver with its tip wrapped with protective tape, disengage the pin.
      3. Disengage the 2 claws to remove the 2 curtain hooks.

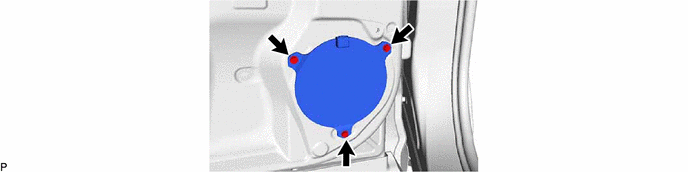

  15. REMOVE REAR DOOR SPEAKER COVER
    1. GTY1237342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

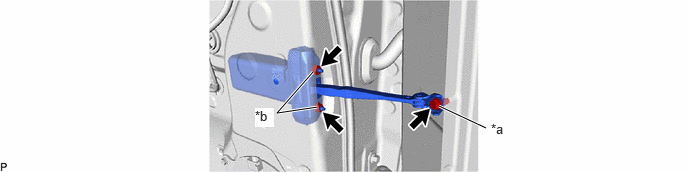

  16. REMOVE REAR DOOR CHECK ASSEMBLY
    1. GTY1240134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt *b Nut

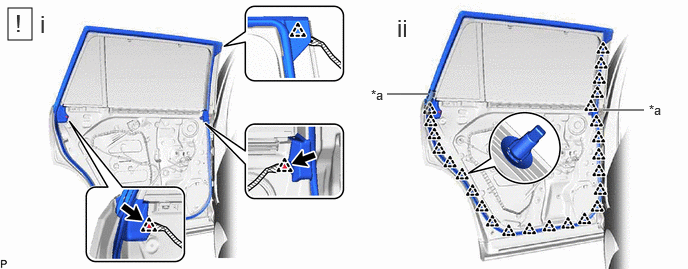

  17. REMOVE REAR DOOR WEATHERSTRIP
    1. GTY1240693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape - -
      1. Using a clip remover with its tip wrapped with protective tape, disengage the 3 clips.
      2. Disengage the 25 clips and separate the double-sided tape to remove the rear door weatherstrip.

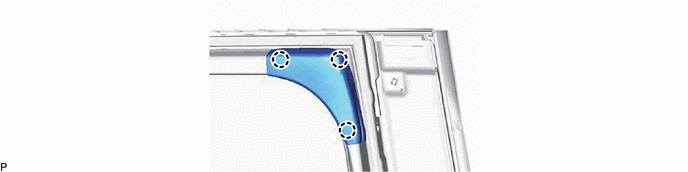

  18. REMOVE REAR DOOR FRAME GARNISH
    1. GTY1197201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

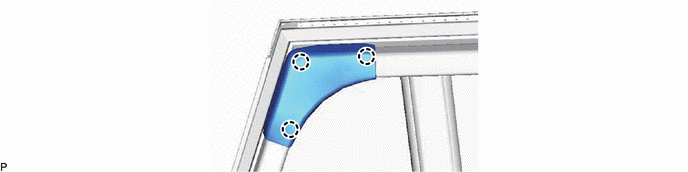

  19. REMOVE NO. 2 REAR DOOR FRAME GARNISH
    1. GTY1195533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

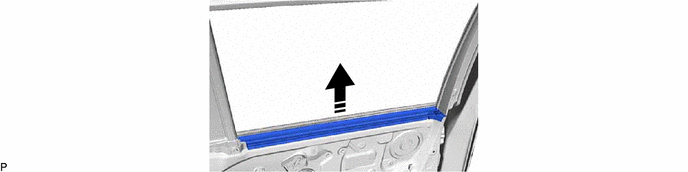

  20. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP WITH NO. 1 REAR DOOR VENT SEAL
    1. GTY1238876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  21. REMOVE NO. 1 REAR DOOR VENT SEAL
    1. GTY1194370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

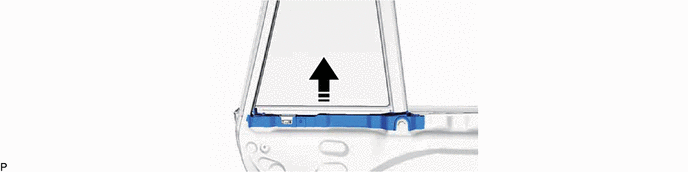

  22. REMOVE QUARTER WINDOW STOP UPPER
    1. GTY1201428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

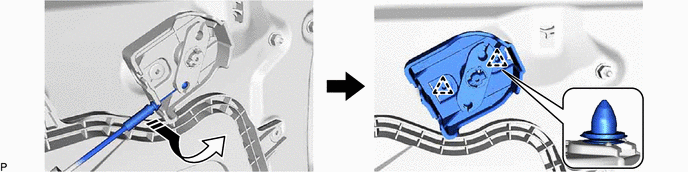

  23. REMOVE REAR DOOR LOCK CONTROL BELLCRANK SUB-ASSEMBLY
    1. GTY1238868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

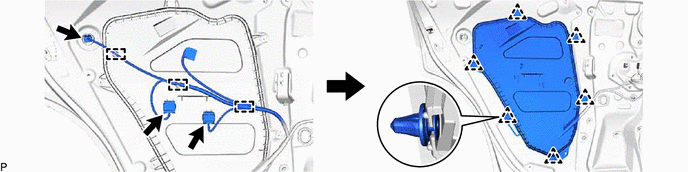

  24. REMOVE REAR DOOR SERVICE HOLE COVER
    1. GTY1237354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

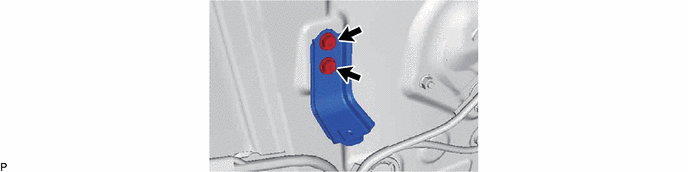

  25. REMOVE REAR DOOR ARMREST SET BRACKET
    1. GTY1197077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

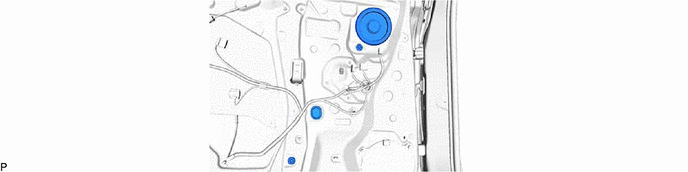

  26. REMOVE HOLE PLUG
    1. GTY1237359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

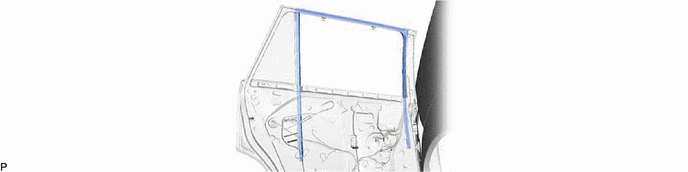

  27. REMOVE REAR DOOR GLASS RUN
    1. GTY1241075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

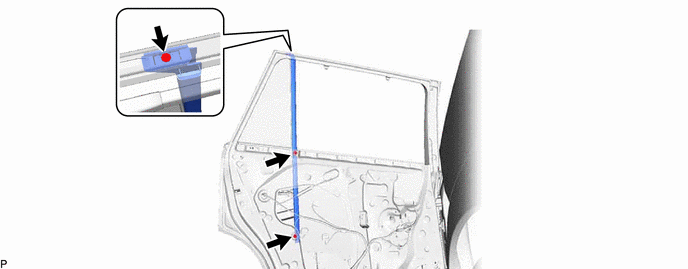

  28. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY
    1. GTY1237357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

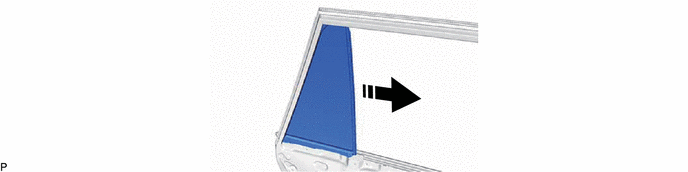

  29. REMOVE REAR DOOR QUARTER WINDOW GLASS
    1. GTY1196771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  30. REMOVE REAR DOOR QUARTER WINDOW WEATHERSTRIP
    1. GTY1197072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

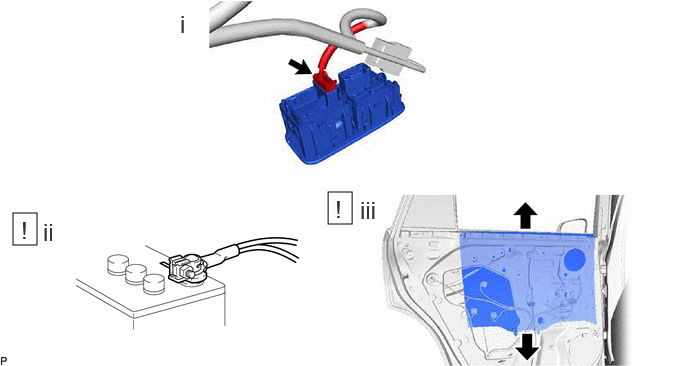

  31. REMOVE REAR DOOR GLASS SUB-ASSEMBLY
    1. GTY1229271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the rear power window regulator switch assembly.
      2. Connect the cable to the negative (-) auxiliary battery terminal and turn the ignition switch to ON.
      3. Move the rear door glass sub-assembly so that the door glass bolts can be seen and turn the ignition switch off.

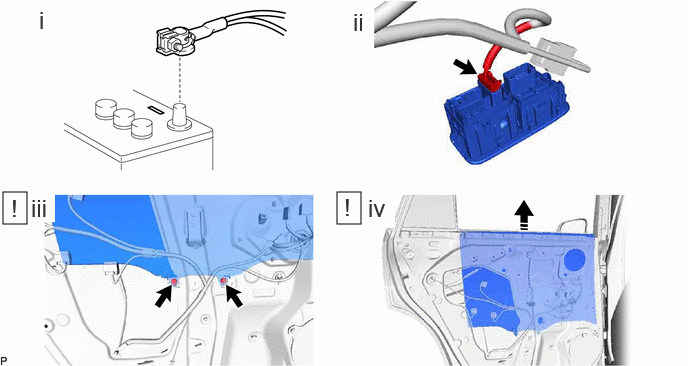

    2. GTY1230684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Disconnect the cable from the negative (-) auxiliary battery terminal.
      2. Disconnect the rear power window regulator switch assembly.
      3. Remove the 2 bolts.
        NOTE:

        After the bolts are removed, do not allow the rear door glass sub-assembly to fall.

      4. Remove the rear door glass sub-assembly as shown in the illustration.
        NOTE:

        Do not damage the rear door glass sub-assembly.

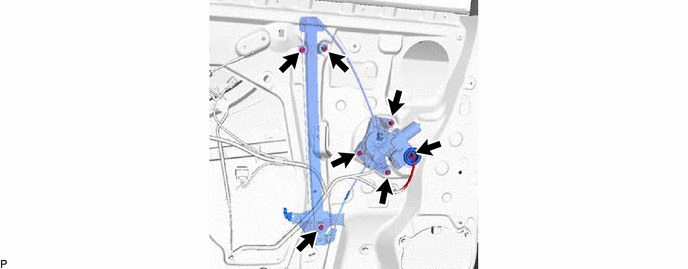

  32. REMOVE REAR DOOR WINDOW REGULATOR ASSEMBLY
    1. GTY1241074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE REAR DOOR LOCK WITH MOTOR ASSEMBLY WITH CABLE
    Refer to PROCEDURE - Step 11
  34. REMOVE DOOR LOCK WIRING HARNESS SEAL

    Refer to PROCEDURE - Step 12

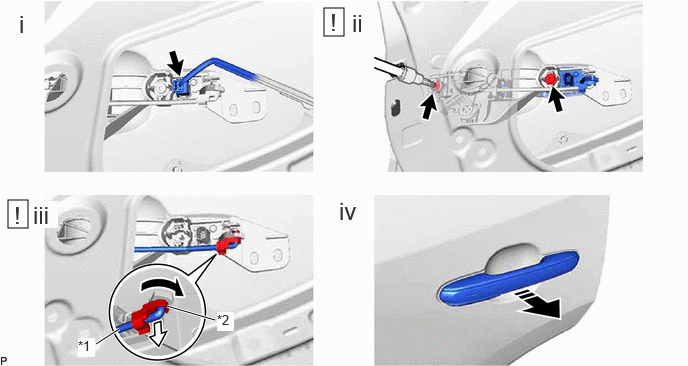

  35. REMOVE REAR DOOR OUTSIDE HANDLE ASSEMBLY
    1. GTY1236506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rod *2 Snap
      Remove in this Direction - -
      1. Disconnect the connector.
      2. Using a T30 "TORX" socket wrench, loosen the 2 screws.

        HINT:

        The screw cannot be removed because it is integrated into the rear door outside handle frame sub-assembly.

      3. Disengage the snap as shown in the illustration to disconnect the rod.
      4. Remove the rear door outside handle assembly as shown in the illustration.

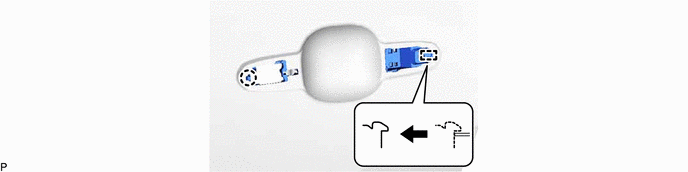

  36. REMOVE REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY
    1. GTY1237351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

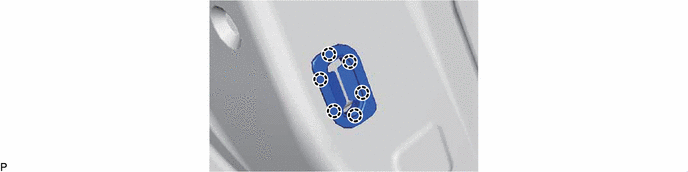

  37. REMOVE REAR DOOR LOCK CHILD PROTECTION COVER
    1. GTY1197175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

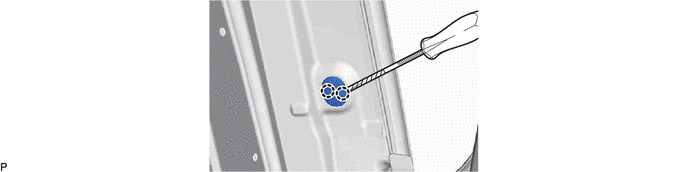

  38. REMOVE DOOR WINDOW FRAME MOULDING CLIP
    1. GTY1197172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

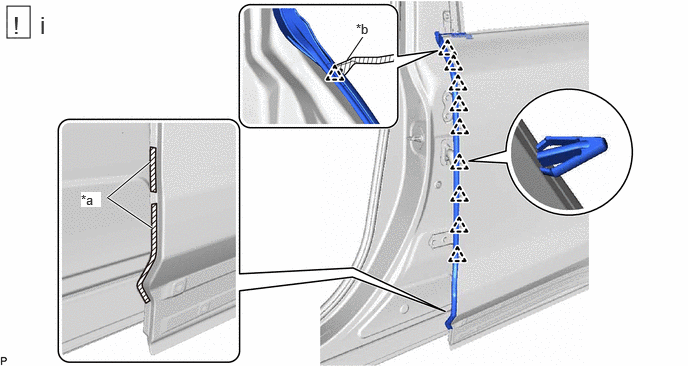

  39. REMOVE REAR DOOR NO. 3 WEATHERSTRIP
    1. GTY1197117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Double-sided Tape *b Protective Tape
      1. Using a clip remover with its tip wrapped with protective tape, disengage the 9 clips and separate the 2 pieces of double-sided tape to remove the rear door No. 3 weatherstrip.

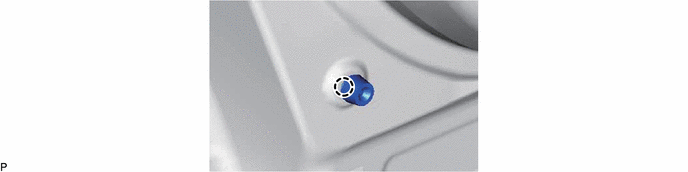

  40. REMOVE REAR DOOR PANEL CUSHION
    1. GTY1195329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  41. REMOVE REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY
    Refer to PROCEDURE - Step 1

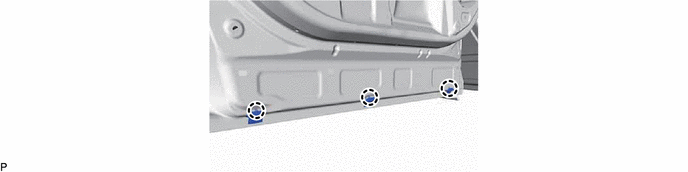

  42. REMOVE REAR DOOR DUST PROOF SEAL
    1. GTY1196614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

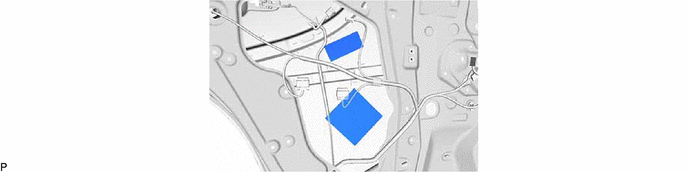

  43. REMOVE REAR DOOR SILENCER PAD
    1. GTY1196613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE REAR DOOR BELT MOULDING ASSEMBLY
    Refer to PROCEDURE - Step 3
  45. REMOVE REAR DOOR WINDOW FRAME FRONT MOULDING
    Refer to PROCEDURE - Step 2
  46. REMOVE REAR DOOR WINDOW FRAME REAR MOULDING
    Refer to PROCEDURE - Step 3
  47. REMOVE REAR DOOR WINDOW FRAME UPPER MOULDING
    Refer to PROCEDURE - Step 4
  48. REMOVE REAR DOOR LOWER OUTSIDE STRIPE
    Refer to PROCEDURE - Step 3
  49. REMOVE REAR INNER BLACK OUT TAPE
    Refer to PROCEDURE - Step 4
  50. REMOVE REAR DOOR OUTSIDE STRIPE
    Refer to PROCEDURE - Step 5
  51. REMOVE BLE DOOR DIGITAL KEY RECEIVER ASSEMBLY
    Refer to PROCEDURE - Step 4
