Removal [09/2023 - ]: Procedure

Refer to REMOVAL [09/2023 - ]

Refer to PROCEDURE - Step 26 [09/2023 - 12/2023] , or refer to PROCEDURE - Step 26 [12/2023 - ]

NOTE: Be careful when removing the BLE door digital key receiver assembly. If the BLE door digital key receiver assembly is dropped, replace it with a new one.

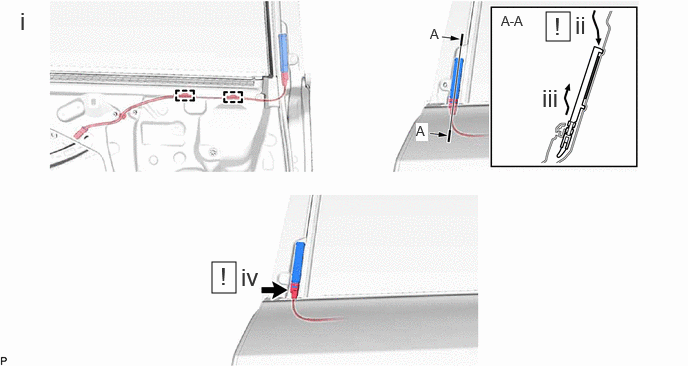

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Disengage the 2 clamps.
   2. Peel off the BLE door digital key receiver assembly using a moulding remover.
   3. Pull up the BLE door digital key receiver assembly.
   4. Disconnect the connector to remove the BLE door digital key receiver assembly.
      NOTE:

      Prevent the detached wire harness from falling into the door panel.
