Replacement [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT DRIVE SHAFT ASSEMBLY RH
Refer to REMOVAL [10/2022 - ]
REMOVE DRIVE SHAFT BEARING BRACKET
Refer to PROCEDURE - Step 1

REMOVE TRANSFER CASE OIL SEAL RH

Using SST, remove the transfer case oil seal RH from the transfer assembly.

SST: 09308-00010

NOTE:

Do not scratch the press-fitting surface of the transfer case oil seal RH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Transfer Case Oil Seal RH

INSTALL TRANSFER CASE OIL SEAL RH

Coat the lip of a new transfer case oil seal RH with MP grease.

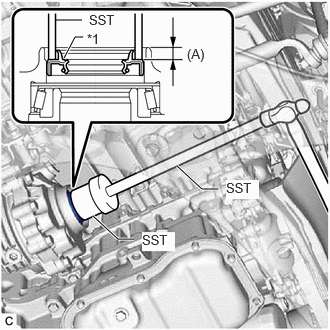

Using SST and a hammer, tap in the transfer case oil seal RH to the transfer assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Transfer Case Oil Seal RH

SST: 09631-32020
SST: 09950-60021
1. 09951-00680
SST: 09950-70010
1. 09951-07360

Drive in Depth (A)

7.5 to 8.5 mm (0.296 to 0.334 in.)

NOTE:

Tap the transfer case oil seal RH uniformly so that the transfer case oil seal RH is straight.
Do not tap the transfer case oil seal RH in too far.

INSTALL DRIVE SHAFT BEARING BRACKET
Refer to PROCEDURE - Step 55
INSTALL FRONT DRIVE SHAFT ASSEMBLY RH
Refer to INSTALLATION [10/2022 - ]
