Removal [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    NOTE:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [10/2022 - ]
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 2

  3. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 2 [08/2023 - ]

  4. REMOVE REAR FLOOR BOARD REAR RH

    Refer to PROCEDURE - Step 6 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 6 [08/2023 - ]

  5. REMOVE DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 10 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 11 [08/2023 - ]

  6. REMOVE 4WD ECU ASSEMBLY

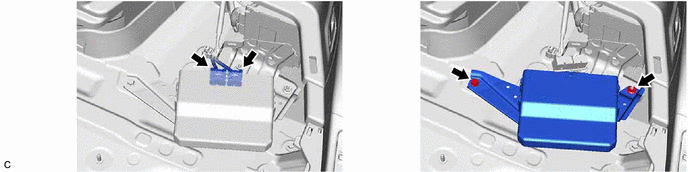

    1. GTY1128044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
