Removal [10/2022 - ]: Procedure

  1. PRECAUTION
    NOTE:
    • After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

      Refer to BEFORE DISCONNECTING BATTERY [10/2022 - ]

    • When replacing the battery, use a new battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to WORK PROCEDURE [10/2022 - ]

    1. GTY1133218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

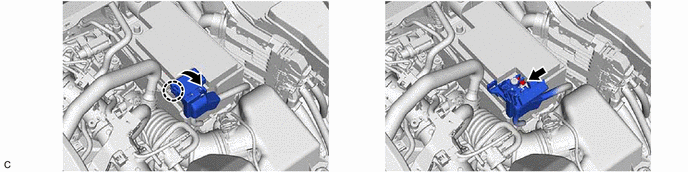

  3. DISCONNECT CABLE FROM POSITIVE BATTERY TERMINAL
    1. GTY1129775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

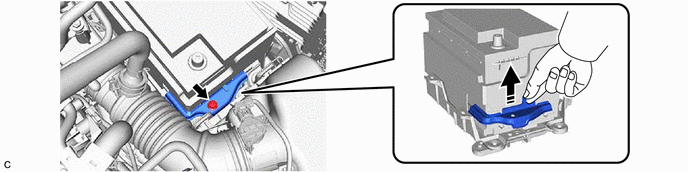

  4. REMOVE NO. 2 BATTERY CLAMP
    1. GTY1133219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

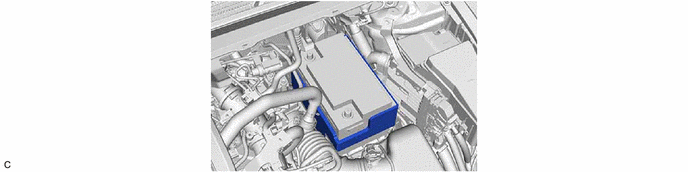

  5. REMOVE BATTERY INSULATOR
    1. GTY1133220Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

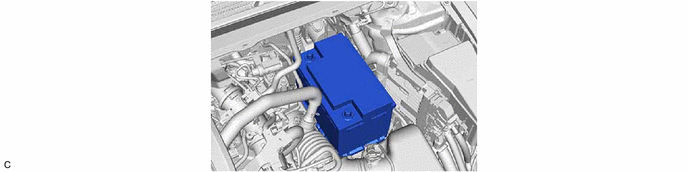

  6. REMOVE BATTERY
    1. GTY1133221Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
