Installation [10/2022 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus RX 350, 2024 Lexus RX 350, and 2023 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TRANSMISSION OIL COOLER

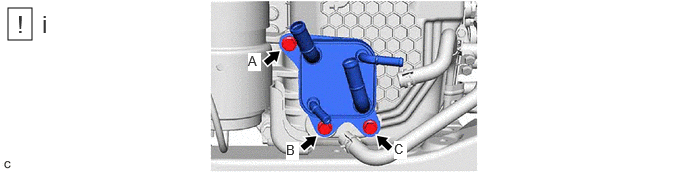

    1. GTY1062989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the transmission oil cooler to the automatic transaxle case sub-assembly with the 3 bolts.

        Torque: 13.5 N.m (138 kgf/cm, 10 ft.lbf)

        HINT:

        Tightening order: Temporarily tighten bolt (A) → Fully tighten bolt ((B) → (C) → (A))

  2. CONNECT OUTLET NO. 1 OIL COOLER HOSE

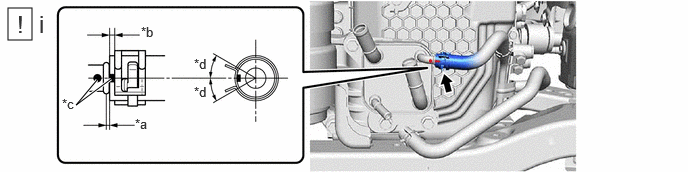

    1. GTY1063082Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 0 to 3 mm (0 to 0.118 in.) *b 2 to 7 mm (0.0787 to 0.276 in.)
      *c Paint Mark *d 30° (Paint Mark Location)
      1. Connect the outlet No. 1 oil cooler hose to the transmission oil cooler and slide the clip to secure it.
        NOTE:
        • Make sure to slide the outlet No. 1 oil cooler hose until it contacts the hose stopper of the transmission oil cooler.
        • Make sure to align the paint mark of the outlet No. 1 oil cooler hose with paint mark of the transmission oil cooler.
        • Make sure that the paint mark of the outlet No. 1 oil cooler hose and clip are within the location shown in the illustration.
  3. CONNECT INLET NO. 1 OIL COOLER HOSE

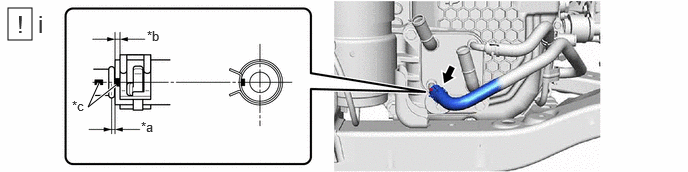

    1. GTY1061679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 0 to 3 mm (0 to 0.118 in.) *b 2 to 7 mm (0.0787 to 0.276 in.)
      *c Paint Mark - -
      1. Connect the inlet No. 1 oil cooler hose to the transmission oil cooler and slide the clip to secure it.
        NOTE:
        • Make sure to slide the inlet No. 1 oil cooler hose until it contacts the hose stopper of the transmission oil cooler.
        • Make sure to align the paint mark of the inlet No. 1 oil cooler hose with the paint mark of the transmission oil cooler.
        • Make sure that the clip is within the location shown in the illustration.
  4. CONNECT WATER BY-PASS HOSE ASSEMBLY

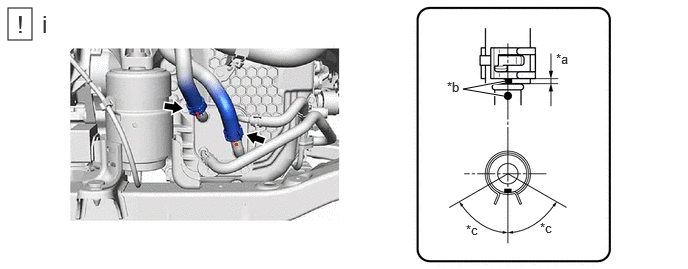

    1. GTY1063126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 2 to 7 mm (0.0787 to 0.276 in.) *b Paint Mark
      *c 60° (Claw of Clip Location) - -
      1. Connect the water by-pass hose assembly to the transmission oil cooler and slide the 2 clips to secure it.
        NOTE:
        • Make sure to slide the water by-pass hose assembly until it contacts the hose stopper of the transmission oil cooler.
        • Make sure to align the paint mark of the water by-pass hose assembly with the paint mark of the transmission oil cooler.
        • Make sure that the claws of the clip are within the location shown in the illustration.
  5. INSTALL NO. 1 AUTOMATIC TRANSMISSION OIL COOLER TUBE CLAMP
  6. INSTALL ENGINE WIRE
  7. INSTALL AIR CLEANER ASSEMBLY
    Refer to PROCEDURE - Step 53
  8. INSTALL INLET AIR CLEANER ASSEMBLY
    Refer to PROCEDURE - Step 54
  9. INSTALL COOL AIR INTAKE DUCT SEAL
  10. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 5

  11. ADJUST AUTOMATIC TRANSAXLE FLUID

    Refer to ADJUSTMENT [10/2022 - ]

  12. INSPECT FOR ENGINE COOLANT LEAK

    Refer to PROCEDURE - Step 1

  13. INSPECT FOR AUTOMATIC TRANSAXLE FLUID LEAK
  14. INSTALL FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 82

  15. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 84

  16. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 85

  17. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 86

  18. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 87
