Removal [08/2023 - ]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE DECK BOARD ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE BATTERY SERVICE COVER PLATE (except Gasoline Model)
    1. for T24A-FTS 1Motor-HEV Model:

      Refer to PROCEDURE - Step 2

    2. for A25A-FXS:

      Refer to PROCEDURE - Step 2

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
    WARNING:

    Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. for T24A-FTS Gasoline Model:

      Refer to PROCEDURE - Step 2

    2. for T24A-FTS 1Motor-HEV Model:

      Refer to PROCEDURE - Step 3

    3. for A25A-FXS:

      Refer to PROCEDURE - Step 3

  5. REMOVE REAR DECK FLOOR BOX (for Gasoline Model)

    Refer to PROCEDURE - Step 4

  6. REMOVE REAR DECK FLOOR BOX LH

    Refer to PROCEDURE - Step 5

  7. REMOVE REAR FLOOR BOARD REAR RH

    Refer to PROCEDURE - Step 6

  8. REMOVE JUNCTION BLOCK SERVICE COVER (except Gasoline Model)

    Refer to PROCEDURE - Step 7

  9. REMOVE REAR FLOOR BOARD REAR LH

    Refer to PROCEDURE - Step 8

  10. REMOVE JUNCTION BLOCK SERVICE COVER LH

    Refer to PROCEDURE - Step 9

  11. REMOVE DECK FLOOR BOX LH (w/o Spare Tire)

    Refer to PROCEDURE - Step 10

  12. REMOVE DECK FLOOR BOX RH

    Refer to PROCEDURE - Step 11

  13. SEPARATE REAR SEATBACK ASSEMBLY RH
    1. GTY1126363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. SEPARATE REAR SEATBACK ASSEMBLY LH
    1. GTY1128395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE DECK BOARD SET SUPPORT LH

    Refer to PROCEDURE - Step 14

  16. REMOVE DECK BOARD SET SUPPORT

    Refer to PROCEDURE - Step 15

  17. REMOVE REAR SEAT CUSHION ASSEMBLY
    1. GTY1129562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Rear Seat Cushion Frame Hook (Front Side) *b Rear Seat Cushion Frame Hook (Rear Side)
      Place Hand Here Remove in this Direction (1)
      Remove in this Direction (2) - -
      1. Lift the front edge of the rear seat cushion assembly as shown in the illustration and disengage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly from the rear seat cushion lock hooks.

        Standard Measurement

        Area Measurement Area Measurement
        A 120 mm (4.72 in.) B 160 mm (6.30 in.)
        C 40 mm (1.57 in.) - -
        NOTE:
        • Disengage each hook at the front part of the rear seat cushion frame one area at a time.
        • Be sure to hold the parts of the seat cushion assembly directly next to the rear seat cushion frame hooks when lifting it. Lifting a different part of the cushion may deform the rear seat cushion frame.
      2. Disengage the 2 rear seat cushion frame hooks on the rear side of the rear seat cushion assembly as shown in the illustration.
    2. GTY1124060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/o Occupant Detection Sensor or w/o Climate Control System or w/o Seat Heater System *B w/ Occupant Detection Sensor or w/ Climate Control System or w/ Seat Heater System
      1. Disconnect the 2 connecters.
    3. Remove the rear seat cushion assembly.
      NOTE:

      Be careful not to damage the vehicle body.

  18. REMOVE REAR SEAT CUSHION LOCK HOOK
    1. GTY1122733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for RH Side *B for LH Side

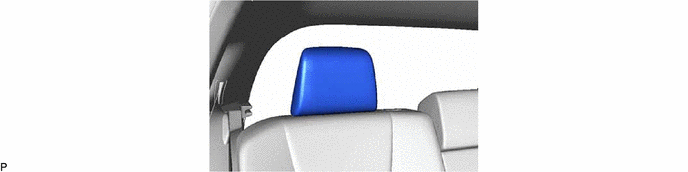

  19. REMOVE REAR SEAT HEADREST ASSEMBLY (for RH Side)
    1. GTY1129168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY (for RH Side)
    1. GTY1126359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. REMOVE REAR SEAT HEADREST ASSEMBLY (for LH Side)
    1. GTY1126362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
    1. GTY1127369Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape Remove in this Direction
      Insert Screwdriver Here - -
      1. Using a screwdriver with its tip wrapped with protective tape, disconnect the rear center seat outer belt assembly as shown in the illustration.
  23. REMOVE REAR SEATBACK ASSEMBLY RH
    1. GTY1127609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Power Seat - -
      Direction to defeat Remove in this Direction
      1. Disconnect each connector.
      2. Disconnect the airbag connector to the rear seatback assembly RH.
        NOTE:

        When disconnecting any airbag connector, take care not to damage the airbag wire harness.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector.

        Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [10/2022 - ]

      3. Remove the 5 bolts.
      4. Disengage the pin and remove the rear seatback assembly RH.
        NOTE:

        Be careful not to damage the vehicle body.

  24. REMOVE REAR SEATBACK ASSEMBLY LH
    1. GTY1128395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the 3 clips.
    2. GTY1124176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Power Seat - -
      Direction to defeat Remove in this Direction
      1. Disconnect each connector.
      2. Disconnect the airbag connector to the rear seatback assembly LH.
        NOTE:

        When disconnecting any airbag connector, take care not to damage the airbag wire harness.

        HINT:

        Refer to How to Connect or Disconnect Airbag Connector.

        Refer to HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR [10/2022 - ]

      3. Remove the 5 bolts.
      4. Disengage the pin and remove the rear seatback assembly LH.
        NOTE:

        Be careful not to damage the vehicle body.
