Removal [10/2015 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2024 Lexus RC 300, 2023 Lexus RC 300, 2022 Lexus RC 300, 2021 Lexus RC 300, and 2020 Lexus RC 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 1 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 1 [11/2017 - 10/2018] , or refer to PROCEDURE - Step 1 [10/2018 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2 [09/2014 - 11/2017] , or refer to PROCEDURE - Step 2 [11/2017 - 10/2018] , or refer to PROCEDURE - Step 2 [10/2018 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

  3. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 5

  4. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 12

  5. REMOVE ENGINE ROOM ECU OUTLET DUCT

    See step  10 [10/2015 - 11/2017], or see step  9 [11/2017 - ]

  6. DISCONNECT ENGINE ROOM MAIN WIRE

    See step  11 [10/2015 - 11/2017], or see step  10 [11/2017 - ]

  7. DRAIN ENGINE COOLANT

    See step  2

  8. REMOVE RADIATOR RESERVE TANK ASSEMBLY

    See step  12 [10/2015 - 11/2017], or see step  11 [11/2017 - ]

  9. REMOVE RADIATOR HOSE SUB-ASSEMBLY

    See step  13 [10/2015 - 11/2017], or see step  12 [11/2017 - ]

  10. DISCONNECT NO. 2 RADIATOR HOSE SUB-ASSEMBLY

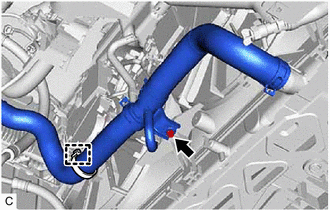

    1. Disconnect the No. 2 radiator hose sub-assembly from the radiator hose clamp.
      GTY654939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the radiator hose clamp from the fan shroud assembly.
    3. Remove the bolt to disconnect the No. 2 radiator hose sub-assembly from the fan shroud assembly.
  11. REMOVE FAN SHROUD ASSEMBLY

    See step  16 [10/2015 - 11/2017], or see step  15 [11/2017 - ]

  12. REMOVE COOLING FAN WIRE

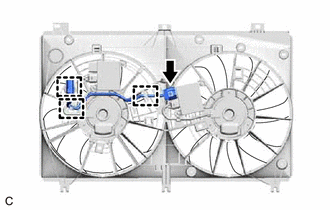

    1. Disconnect the cooling fan wire connector.
      GTY667410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clamps to remove the cooling fan wire.
  13. REMOVE FAN

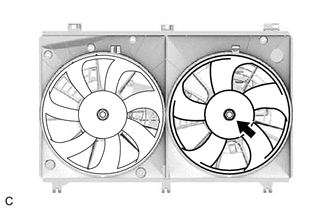

    1. Remove the nut and fan.
      GTY667415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. REMOVE NO. 2 FAN

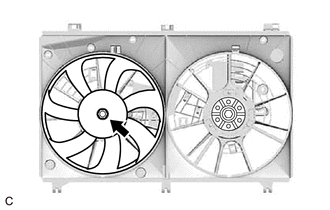

    1. Remove the nut and No. 2 fan.
      GTY684621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE COOLING FAN MOTOR

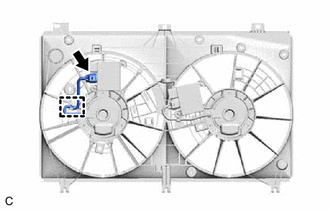

    1. Disconnect the cooling fan motor connector.
      GTY667414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

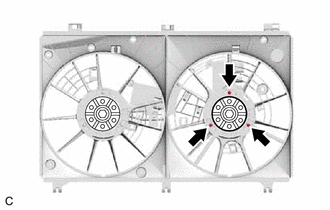

    3. Remove the 3 screws and cooling fan motor.
      GTY667419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 2 COOLING FAN MOTOR

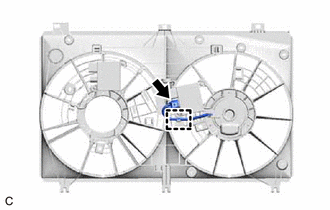

    1. Disconnect the No. 2 cooling fan motor connector.
      GTY684622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.

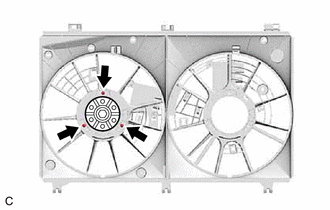

    3. Remove the 3 screws and No. 2 cooling fan motor.
      GTY667418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
