Removal [10/2022 - ]: Procedure

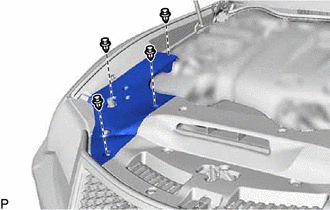

  1. REMOVE ENGINE ROOM SIDE COVER
    1. Remove the 4 clips and engine room side cover.
      GTY805477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

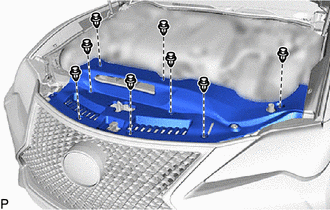

  2. REMOVE COOL AIR INTAKE DUCT SEAL
    1. Remove the 8 clips and cool air intake duct seal.
      GTY805476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT BUMPER ASSEMBLY

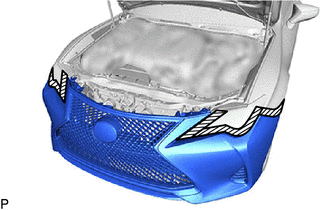

    1. Apply protective tape around the front bumper assembly as shown in the illustration.
      GTY819894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Disconnect the connector.

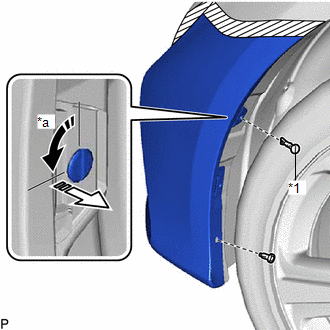

    3. Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip as shown in the illustration.
      GTY790176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Pin Hold Clip
      *a 90°
      Remove in this Direction (1)
      Remove in this Direction (2)

      HINT:

      Use the same procedure for the RH side and LH side.

    4. Remove the clip.

      HINT:

      Use the same procedure for the RH side and LH side.

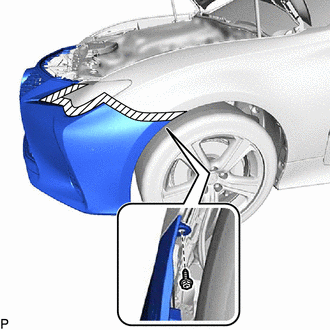

    5. Remove the screw.
      GTY805488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

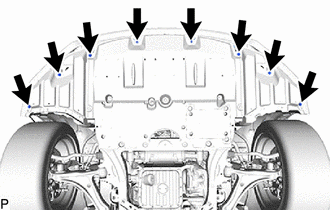

    6. Remove the 8 screws.
      GTY805483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

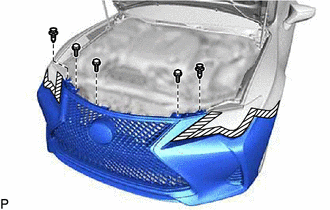

    7. Remove the 3 bolts.
      GTY805485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the 2 clips.

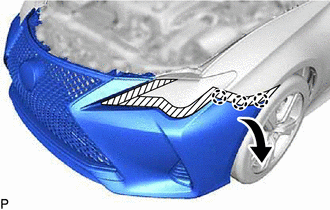

    9. Disengage the 3 claws as shown in the illustration.
      GTY805481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the RH side and LH side.

    10. Pull the side of the front bumper assembly and disconnect the 6 connectors.
      NOTE:

      Do not apply excessive force when pulling back the front bumper assembly.

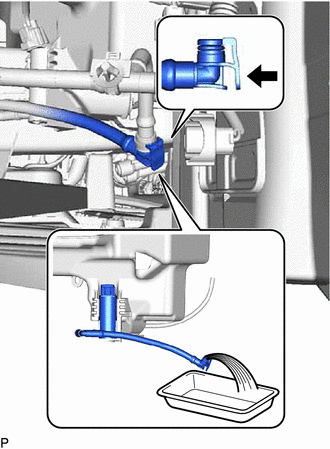

    11. w/ Headlight Cleaner System:
      1. Disconnect the washer hose and drain the washer fluid as shown in the illustration.

        HINT:

        Use a container to collect the washer fluid.

        GTY801254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

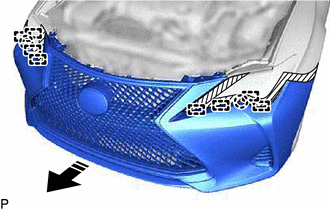

    12. Disengage the 2 claws and 8 guides to remove the front bumper assembly as shown in the illustration.
      GTY793681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
