Removal [09/2014 - 11/2017]: Procedure

REMOVE ENGINE ROOM SIDE COVER

Remove the 4 clips and engine room side cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

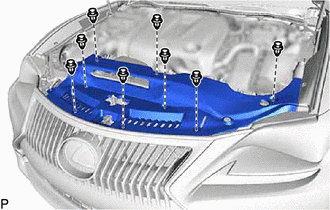

REMOVE COOL AIR INTAKE DUCT SEAL

Remove the 8 clips and cool air intake duct seal.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT BUMPER ASSEMBLY

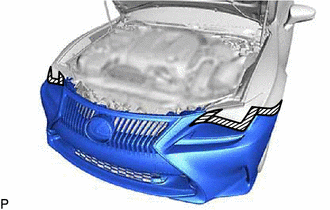

Apply protective tape around the front bumper assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

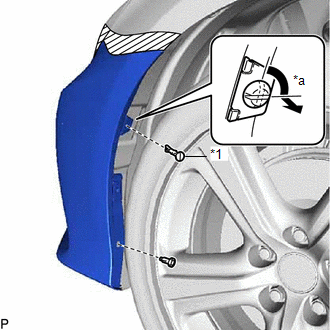

Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Pin Hold Clip
*a	90°

HINT:

Use the same procedure for the RH side and LH side.

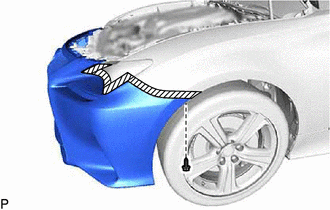

Remove the screw.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure for the RH side and LH side.

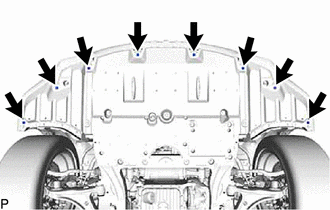

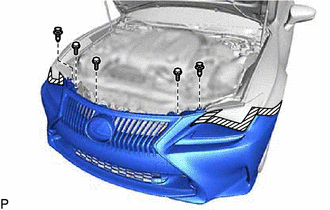

Remove the 8 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

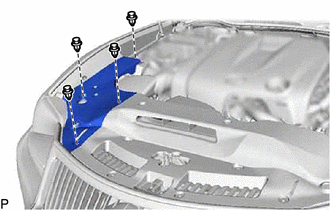

Remove the 3 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

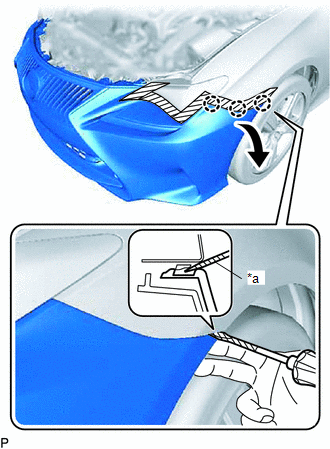

Using a screwdriver with its tip wrapped with protective tape, disengage the 3 claws as shown in the illustration.

*a	Screwdriver
	Protective Tape

HINT:

Use the same procedure for the RH side and LH side.

w/ Fog Light:
1. Pull the side of the front bumper assembly and disconnect the 2 fog light connectors.
  NOTE:
  Do not apply excessive force when pulling back the front bumper assembly.
Pull the side of the front bumper assembly and disconnect the 3 connectors.
NOTE:
Do not apply excessive force when pulling back the front bumper assembly.

w/ Headlight Cleaner System:

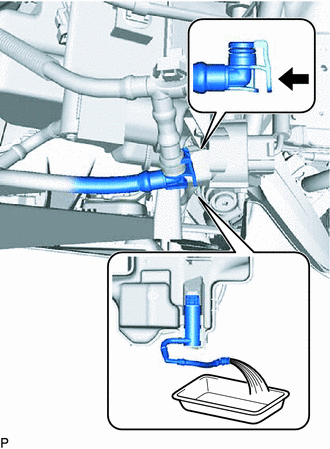

Disconnect the washer hose and drain the washer fluid.

HINT:

Use a container to collect the washer fluid.

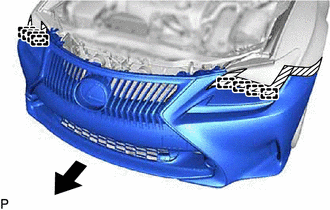

Disengage the 8 guides and remove the front bumper assembly as shown in the illustration.
