Removal [09/2014 - 11/2017]: Procedure
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE AIR FUEL RATIO SENSOR
Refer to REMOVAL [09/2014 - 11/2017]

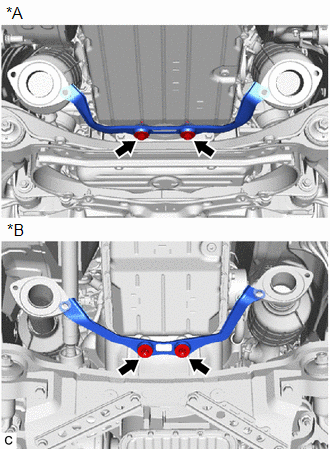

- REMOVE FRONT SUSPENSION MEMBER BRACE (for 2WD)
Refer to PROCEDURE - Step 14 [09/2014 - 10/2015]
, or refer to PROCEDURE - Step 14 [10/2015 - 11/2017]
- REMOVE FRONT CENTER FLOOR COVER LH (for Full Cover Type)
Refer to PROCEDURE - Step 2 [09/2014 - 10/2015]
, or refer to PROCEDURE - Step 2 [10/2015 - 11/2017]
- REMOVE FRONT CENTER FLOOR COVER RH (for Full Cover Type)
Refer to PROCEDURE - Step 3 [09/2014 - 10/2015]
, or refer to PROCEDURE - Step 3 [10/2015 - 11/2017]
- REMOVE FRONT CENTER FLOOR BRACE
Refer to PROCEDURE - Step 6 [09/2014 - 10/2015]
, or refer to PROCEDURE - Step 6 [10/2015 - 11/2017]
- DISCONNECT HEATED OXYGEN SENSOR CONNECTOR
Refer to PROCEDURE - Step 3
- REMOVE FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)
- for Bank 1:

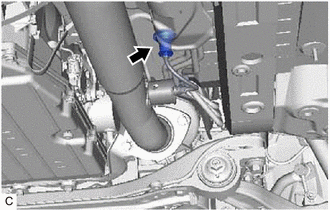

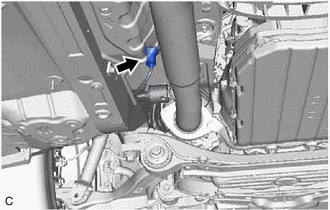

- Disconnect the heated oxygen sensor grommet from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- for Bank 2 (for 2WD):
- Disconnect the heated oxygen sensor grommet from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- for Bank 2 (for AWD with Front Floor Cover LH):

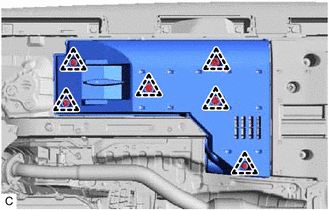

- Disconnect the 6 clips and remove the front floor cover LH from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

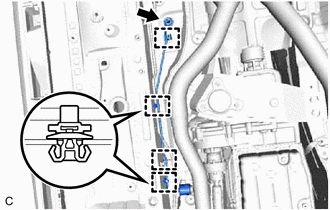

- Disconnect the heated oxygen sensor grommet from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the 3 clamps.
- for Bank 2 (for AWD without Front Floor Cover LH):

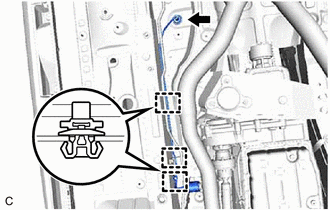

- Disconnect the heated oxygen sensor grommet from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the 4 clamps.
- Remove the 4 bolts and 4 nuts to disconnect the front exhaust pipe assembly (TWC: Rear Catalyst).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

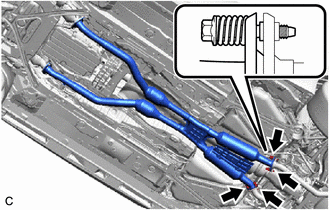

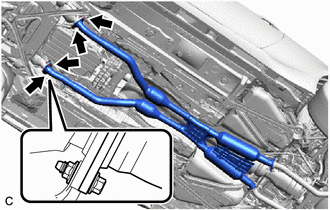

- Remove the 4 bolts, 4 compression springs and front exhaust pipe assembly (TWC: Rear Catalyst).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the 4 exhaust pipe gaskets from the front exhaust pipe assembly (TWC: Rear Catalyst).
- REMOVE NO. 1 EXHAUST PIPE SUPPORT BRACKET SUB-ASSEMBLY
- Remove the 2 bolts and No. 1 exhaust pipe support bracket sub-assembly from the automatic transmission with transfer assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE FRONT PROPELLER SHAFT ASSEMBLY (for AWD)
Refer to PROCEDURE - Step 3
- REMOVE NO. 2 ENGINE OIL LEVEL DIPSTICK GUIDE

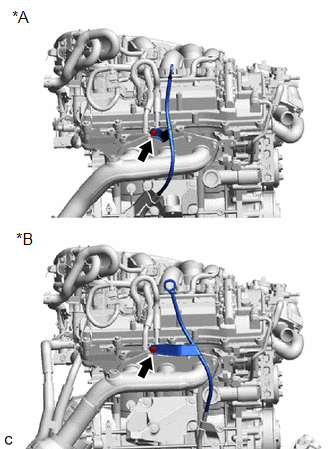

- Remove the engine oil level dipstick.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Remove the bolt and No. 2 engine oil level dipstick guide from the camshaft housing sub-assembly RH.
- Remove the O-ring from the No. 2 engine oil level dipstick guide.
- REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY RH (TWC: Front Catalyst)

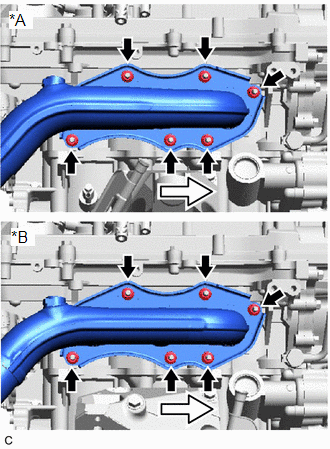

- Using a 12 mm deep socket wrench, remove the 6 nuts and exhaust manifold sub-assembly RH (TWC: Front Catalyst).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *A |
for 2WD |
| *B |
for AWD |
 |
Front |

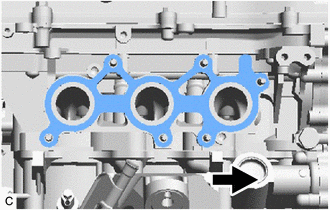

- Remove the exhaust manifold to head gasket from the cylinder head sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
 |
Front |
- REMOVE EXHAUST MANIFOLD SUB-ASSEMBLY LH (TWC: Front Catalyst)

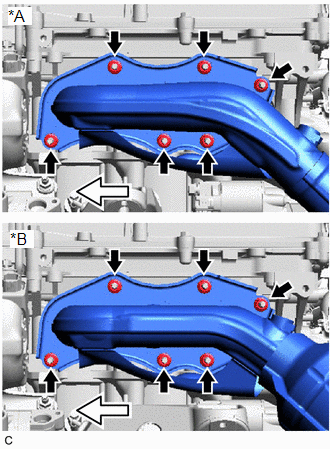

- Using a 12 mm deep socket wrench, remove the 6 nuts and exhaust manifold sub-assembly LH (TWC: Front Catalyst).
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
| *A |
for 2WD |
| *B |
for AWD |
|
Front |

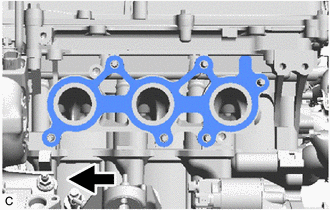

- Remove the exhaust manifold to head gasket LH from the cylinder head sub-assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
|
Front |
