Removal [09/2014 - 11/2017]: Procedure
WARNING: This page is about a different car, the 2017 Lexus RC 350, 2017 Lexus RC 300, 2016 Lexus RC 350, 2016 Lexus RC 300, and 2015 Lexus RC 350. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE FRONT SEAT ASSEMBLY LH (for AWD)
Refer to REMOVAL [09/2014 - ]
- REMOVE CONSOLE BOX ASSEMBLY
Refer to REMOVAL [09/2014 - 10/2018]
- DISCONNECT HEATED OXYGEN SENSOR CONNECTOR
- for Bank 1:

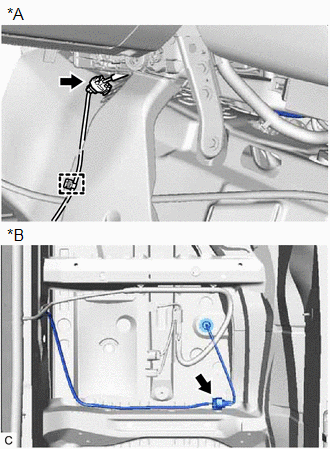

- Turn back the floor carpet.
- Disconnect the heated oxygen sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the clamp.
- for Bank 2:
- Turn back the floor carpet.
- Disconnect the heated oxygen sensor connector.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- for 2WD:
- Disengage the clamp.
- REMOVE HEATED OXYGEN SENSOR
- for Bank 1:
- Disconnect the heated oxygen sensor grommet from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If the heated oxygen sensor has been struck or dropped, replace it.
- for Bank 2 (for 2WD):
- Disconnect the heated oxygen sensor grommet from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If the heated oxygen sensor has been struck or dropped, replace it.
- for Bank 2 (for AWD with Front Floor Cover LH):
- Disengage the 6 clips and remove the front floor cover LH.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disconnect the heated oxygen sensor grommet from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the 3 clamps.
- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If the heated oxygen sensor has been struck or dropped, replace it.
- for Bank 2 (for AWD without Front Floor Cover LH):
- Disconnect the heated oxygen sensor grommet from the vehicle body.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- Disengage the 4 clamps.
- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
NOTE:
If the heated oxygen sensor has been struck or dropped, replace it.
