Removal [11/2017 - ]: Procedure

  1. REMOVE ENGINE ROOM SIDE COVER

    Refer to PROCEDURE - Step 1 [11/2017 - 10/2018] , or refer to PROCEDURE - Step 1 [10/2018 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

  2. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 2 [11/2017 - 10/2018] , or refer to PROCEDURE - Step 2 [10/2018 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

  3. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  4. REMOVE INLET NO. 1 AIR CLEANER

    Refer to PROCEDURE - Step 19

  5. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 23

  6. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 11

  7. DRAIN ENGINE COOLANT

    See step  2

  8. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR

    Refer to PROCEDURE - Step 6 [11/2017 - 11/2019] , or refer to PROCEDURE - Step 6 [11/2019 - ]

  9. REMOVE HOOD LOCK ASSEMBLY

    Refer to PROCEDURE - Step 7 [11/2017 - 11/2019] , or refer to PROCEDURE - Step 7 [11/2019 - ]

  10. DISCONNECT HOOD LOCK CONTROL CABLE ASSEMBLY
    1. Disengage the clamp to disconnect the hood lock control cable assembly from the upper radiator support.
      GTY500612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 1 RADIATOR HOSE
    1. Slide the 2 clips and remove the No. 1 radiator hose from the radiator assembly and water inlet.
      GTY813055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. DISCONNECT ENGINE ROOM MAIN WIRE
    1. Disconnect the cooling fan ECU connector.
      GTY784271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

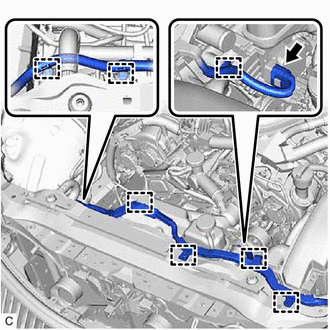

    2. Disengage the 7 clamps to disconnect the engine room main wire from the upper radiator support.
  13. REMOVE RADIATOR RESERVE TANK ASSEMBLY

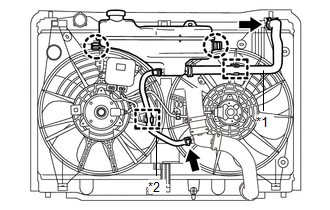

    1. Slide the clip and disconnect the radiator reserve tank hose from the radiator assembly.
      GTY810877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Radiator Reserve Tank Hose
      *2 Outlet Radiator Reserve Tank Hose
    2. Disengage the clamp to disconnect the radiator reserve tank hose from the fan shroud assembly.
    3. Slide the clip and disconnect the outlet radiator reserve tank hose from the radiator pipe.
    4. Disengage the clamp to disconnect the outlet radiator reserve tank hose from the fan shroud assembly.
    5. Disengage the 2 claws and remove the radiator reserve tank assembly from the fan shroud assembly.
  14. REMOVE NO. 2 RADIATOR HOSE SUB-ASSEMBLY

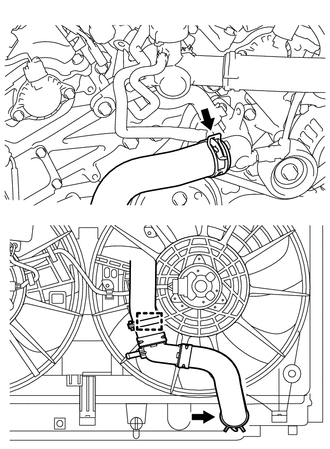

    1. Disengage the clamp to disconnect the No. 2 radiator hose sub-assembly from the radiator hose clamp.
      GTY777222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the radiator hose clamp from the fan shroud assembly.
    3. Slide the 2 clips and remove the No. 2 radiator hose sub-assembly from the radiator assembly and water inlet with thermostat sub-assembly.
  15. REMOVE UPPER RADIATOR SUPPORT
    GTY784270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

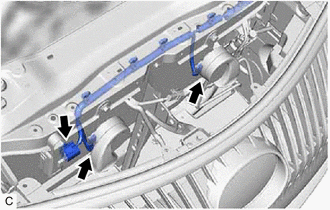

    1. Disconnect the 2 horn connectors and smog ventilation sensor connector.

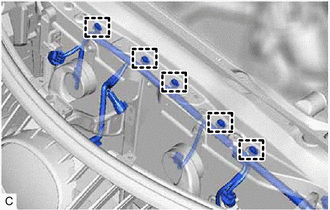

    2. Disengage the 5 clamps to disconnect the wire harness from the upper radiator support.
      GTY784262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

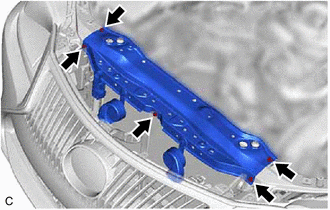

    3. Remove the 5 bolts and upper radiator support.
      GTY784264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. SEPARATE COOLER CONDENSER ASSEMBLY

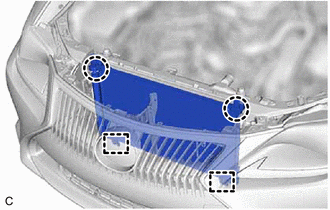

    1. Disengage the 2 claws.
      GTY784266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 guides to separate the cooler condenser assembly from the radiator assembly.
      NOTE:

      Do not damage the cooler condenser assembly or radiator assembly when separating the cooler condenser assembly.

  17. REMOVE ENGINE ROOM ECU OUTLET DUCT
    GTY813029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the engine room ECU outlet duct from the fan shroud assembly.
  18. REMOVE RADIATOR ASSEMBLY
    1. Remove the radiator assembly with the fan shroud assembly from the vehicle body.
      NOTE:

      Do not apply excessive force to the cooler condenser assembly or pipe when removing the radiator assembly.

    2. Disengage the 3 claws.
      GTY505025Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disengage the 3 guides to remove the fan shroud assembly from the radiator assembly.
      NOTE:

      Do not damage the radiator assembly when removing the fan shroud assembly.

  19. REMOVE RADIATOR SUPPORT CUSHION
    1. Remove the 2 radiator support cushions from the radiator assembly.
  20. REMOVE LOWER RADIATOR SUPPORT
    1. Remove the 2 lower radiator supports from the radiator assembly.
