Removal [11/2019 - ]: Procedure

Refer to PROCEDURE - Step 1 [10/2018 - 10/2022] , or refer to PROCEDURE - Step 1 [10/2022 - ]

Refer to PROCEDURE - Step 2 [10/2018 - 10/2022] , or refer to PROCEDURE - Step 2 [10/2022 - ]

Refer to PROCEDURE - Step 9 [11/2019 - 10/2022] , or refer to PROCEDURE - Step 9 [10/2022 - ]

Refer to PROCEDURE - Step 10 [11/2019 - 10/2022] , or refer to PROCEDURE - Step 10 [10/2022 - ]

1. Disconnect the hood lock control cable assembly to remove the hood lock control lever sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disengage the 2 clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 2 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disengage the clamp to remove the hood lock release lever protector.

1. Disconnect the connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 3 bolts.
3. Disconnect the hood lock control cable assembly to remove the hood lock assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Tie a string to the end of the hood lock control cable assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   Use a length of string long enough to pass through the engine compartment.

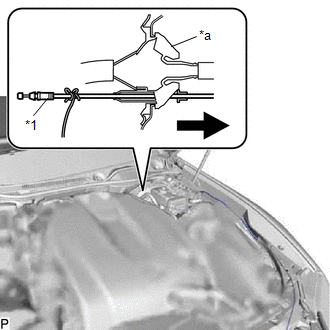

2. Pull out the hood lock control cable assembly through the grommet as shown in the illustration.

   HINT:

   Leave the string inside the grommet.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Hood Lock Control Cable Assembly
   *a	Grommet

3. Disconnect the string from the hood lock control cable assembly.

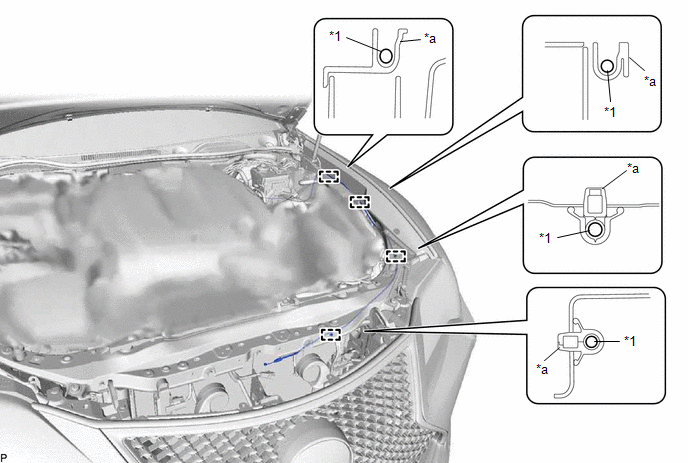

4. Using a screwdriver, disengage the 4 clamps.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Hood Lock Control Cable Assembly	-	-
   *a	Clamp	-	-

   HINT:

   Tape the screwdriver tip before use.

5. Pull the hood lock control cable assembly from the engine compartment to remove it.
