Installation [03/2023 - 03/2024]: Procedure

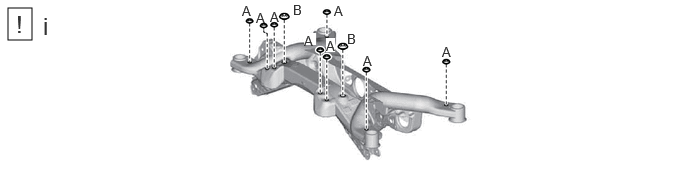

- INSTALL HOLE PLUG
- TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH

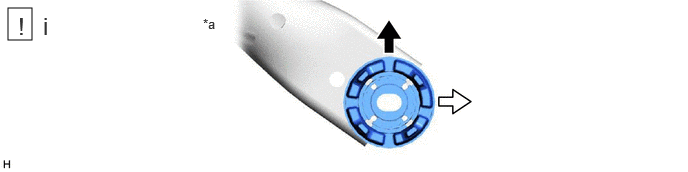

*a View from Underneath - - Front of the Vehicle Outside of the Vehicle - Confirm the installation direction and temporarily install a new rear suspension member front body mounting cushion.NOTE:
- Position the rear suspension member front body mounting cushion in the correct direction.
- Do not apply lubricant to the outer sleeve of the rear suspension member front body mounting cushion.
- Confirm the installation direction and temporarily install a new rear suspension member front body mounting cushion.
- INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH

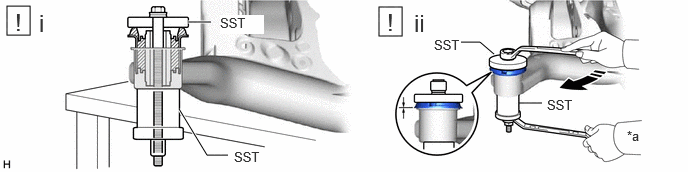

*a Hold - - Turn - - - Install SST as shown in the illustration.
- SST: 09570-24011
- SST: 09830-10010
- 09830-01010
- 09830-01020
- 09830-01040
- 09830-01050
NOTE:Apply molybdenum grease to the threads and tip of the SST center bolt before use.
- Using SST, install the rear suspension member front body mounting cushion until there is no clearance between the rear suspension member sub-assembly and rear suspension member front body mounting cushion.
- SST: 09570-24011
- SST: 09830-10010
- 09830-01010
- 09830-01020
- 09830-01040
- 09830-01050
NOTE:If the rear suspension member sub-assembly is scratched, apply paint to the scratched areas of the rear suspension member sub-assembly.
- Install SST as shown in the illustration.
- TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH
*a View from Underneath - - Front of the Vehicle Outside of the Vehicle - Confirm the installation direction and temporarily install a new rear suspension member front body mounting cushion.NOTE:
- Position the rear suspension member front body mounting cushion in the correct direction.
- Do not apply lubricant to the outer sleeve of the rear suspension member front body mounting cushion.
- Confirm the installation direction and temporarily install a new rear suspension member front body mounting cushion.
- INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH
- TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH

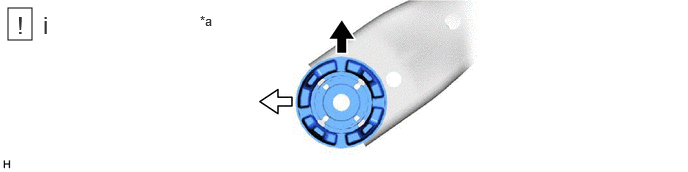

*a View from Underneath - - Front of the Vehicle Outside of the Vehicle - Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion LH.NOTE:
- Position the rear suspension member rear body mount cushion LH in the correct direction.
- Do not apply lubricant to the outer sleeve of the rear suspension member rear body mount cushion LH.
- Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion LH.
- INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH

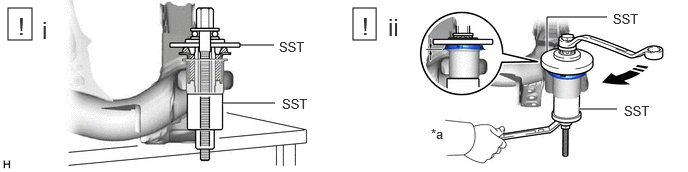

*a Hold - - Turn - - - Install SST as shown in the illustration.
- SST: 09710-28031
- 09711-02030
- 09711-02040
- 94622-51200
- SST: 09950-60021
- 09951-00720
- 09951-00890
NOTE:Apply molybdenum grease to the threads and tip of the SST center bolt before use.
- SST: 09710-28031
- Using SST, install the rear suspension member rear body mount cushion LH until there is no clearance between the rear suspension member sub-assembly and rear suspension member rear body mount cushion LH.
- SST: 09710-28031
- 09711-02030
- 09711-02040
- 94622-51200
- SST: 09950-60021
- 09951-00720
- 09951-00890
NOTE:If the rear suspension member sub-assembly is scratched, apply paint to the scratched areas of the rear suspension member sub-assembly.
- SST: 09710-28031
- Install SST as shown in the illustration.
- TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH
*a View from Underneath - - Front of the Vehicle Outside of the Vehicle - Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion RH.NOTE:
- Position the rear suspension member rear body mount cushion RH in the correct direction.
- Do not apply lubricant to the outer sleeve of the rear suspension member rear body mount cushion RH.
- Confirm the installation direction and temporarily install a new rear suspension member rear body mount cushion RH.
- INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH
- INSTALL REAR UPPER CONTROL ARM ASSEMBLY LH
Refer to PROCEDURE - Step 1 - INSTALL REAR UPPER CONTROL ARM ASSEMBLY RH
- INSTALL DIFFERENTIAL SUPPORT MEMBER CUSHION
- INSTALL REAR SUSPENSION MEMBER SUB-ASSEMBLY

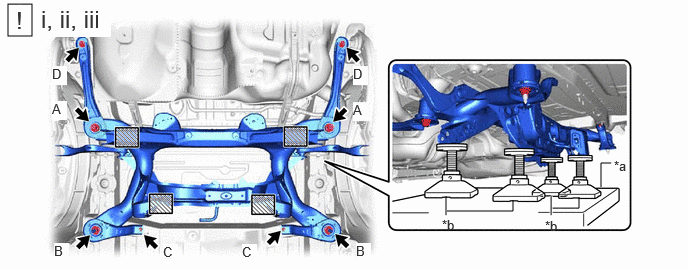

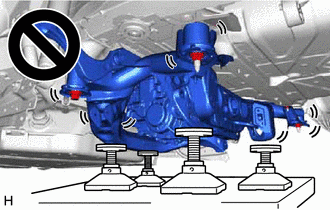

*a Engine Lifter *b Attachment Attachment and Wooden Block Placement Location - - - Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.WARNING:
- The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
- If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
NOTE:- Use attachments or equivalent tools to keep the rear suspension member sub-assembly level.
- Keep supporting the rear suspension member sub-assembly until the installation has been completed.
- Raise the rear suspension member sub-assembly until there is no clearance between the rear suspension member sub-assembly and vehicle.
- Install the rear suspension member sub-assembly with rear suspension member brace LH, rear suspension member brace RH, rear suspension arm bracket sub-assembly LH, rear suspension arm bracket sub-assembly RH, 4 bolts and 4 nuts.
Bolt A
Torque: 158 N.m (1611 kgf/cm, 117 ft.lbf)
Nut B
Torque: 158 N.m (1611 kgf/cm, 117 ft.lbf)
Nut C
Torque: 18 N.m (184 kgf/cm, 13 ft.lbf)
Nut D
Torque: 90 N.m (918 kgf/cm, 66 ft.lbf)
- Using an engine lifter and 4 attachments or equivalent tools, support the rear suspension member sub-assembly as shown in the illustration.
- INSTALL FRAME WIRE
- INSTALL REAR NO. 1 DIFFERENTIAL MOUNT CUSHION
for A25A-FKS: Refer to PROCEDURE - Step 1
for T24A-FTS: Refer to PROCEDURE - Step 1 - TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH
Refer to PROCEDURE - Step 8 - TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY RH
- INSTALL REAR STABILIZER BAR
Refer to PROCEDURE - Step 6 - INSTALL DIFFERENTIAL CARRIER ASSEMBLY
for A25A-FKS: Refer to INSTALLATION [11/2021 - ]
for T24A-FTS: Refer to INSTALLATION [03/2023 - ]
- INSPECT AND ADJUST REAR WHEEL ALIGNMENT
Refer to ADJUSTMENT [11/2021 - ]
- PERFORM INITIALIZATION
Parking Assist Monitor System Refer to CALIBRATION [11/2021 - ] Panoramic View Monitor System Refer to CALIBRATION [11/2021 - 03/2024] Lighting System (w/ Automatic Headlight Beam Level Control System) Refer to INITIALIZATION [03/2022 - ]
