Installation [03/2023 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

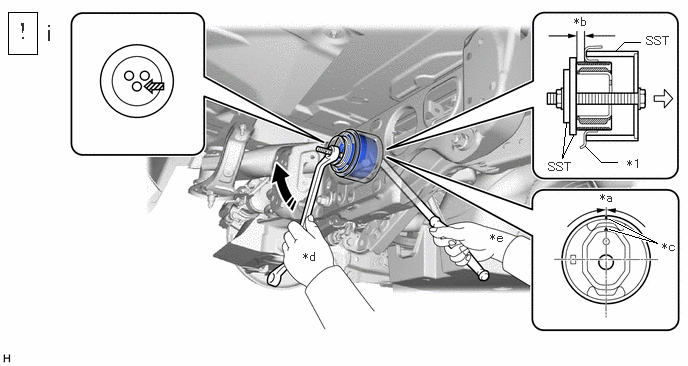

   *1	Rear Suspension Member Sub-assembly	-	-
   *a	-3° to 3°	*b	9.8 to 10.8 mm (0.3858 to 0.4252 in.)
   *c	Protrusion	*d	Turn
   *e	Hold	-	-
   	Turning Direction		Front of Vehicle
   	SST Bolt Position	-	-

   1. Using SST, install a new rear No. 1 differential mount cushion.
      • SST: 09316-12010
      • SST: 09570-24011
      NOTE:

      • Make sure that the rear No. 1 differential mount cushion is aligned within 3° from the center.
      • Install the rear No. 1 differential mount cushion so that the protrusion is positioned as shown in the illustration.
      • Be sure to use the correct combination of SST.
      • Before using SST, apply grease to SST bolt.
      • Temporarily install the rear No. 1 differential mount cushion to the rear suspension member sub-assembly in order to prevent it from tilting, and then install SST.
      • Make sure that SST contacts the entire circumference of the rear No. 1 differential mount cushion.
      • Do not tilt the bolts of SST.
