Installation [11/2021 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Stopper

   *b

   Cutout

   1. Install the 2 rear stabilizer bushings to the outside of the stoppers on the rear stabilizer bar.
      NOTE:

      Be sure to install the rear stabilizer bushings so that each cutout faces the front of the vehicle.

      HINT:

      The cutout of the rear stabilizer bushing can be positioned either up or down.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Arrow Mark	*b	Identification Mark
   	Upper Side of the Vehicle	-	-

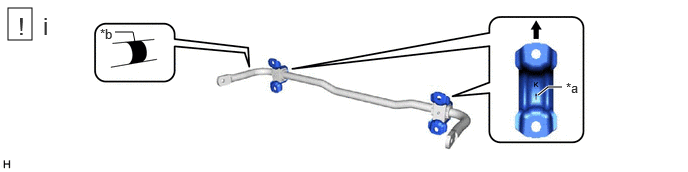

   1. Install the 2 rear No. 1 stabilizer bar brackets to the 2 rear stabilizer bushings.
      NOTE:

      • Ensure that the identification mark faces the right side of the vehicle.
      • Be sure to install the rear No. 1 stabilizer bar bracket so that each arrow mark faces the upper side of the vehicle.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   1. Install the rear stabilizer link assembly LH to the rear stabilizer bar with the nut.

      Torque: 100 N.m (1020 kgf/cm, 74 ft.lbf)

      HINT:

      If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Identification Mark

   -

   -

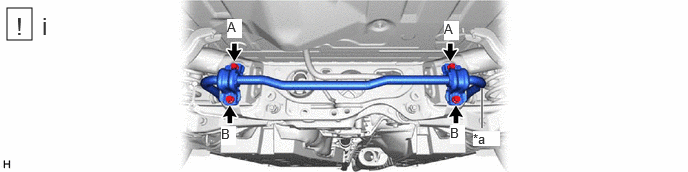

   1. Install the rear stabilizer bar, rear stabilizer link assembly LH, rear stabilizer link assembly RH, 2 rear No. 1 stabilizer bar brackets, 2 rear lower stabilizer brackets and 2 rear stabilizer bushings to the rear suspension member sub-assembly with the 4 bolts.

      Torque: 78 N.m (795 kgf/cm, 58 ft.lbf)

      NOTE:

      • Ensure that the identification mark faces the right side of the vehicle.
      • Temporarily tighten the bolt (A) and then fully tighten the 2 bolts in the order of (B) and (A).

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

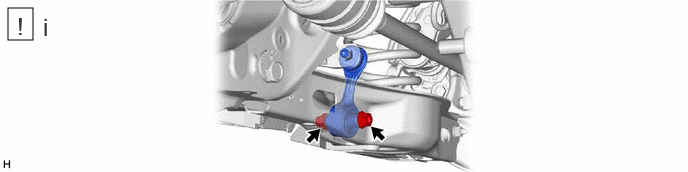

   1. Install the rear stabilizer link assembly LH to the rear No. 2 suspension arm assembly with the bolt and nut.

      Torque: 81 N.m (826 kgf/cm, 60 ft.lbf)

      NOTE:

      Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
