Removal [03/2024 - ]: Procedure
- REMOVE FRONT FENDER FRONT SPLASH SHIELD LH
Refer to PROCEDURE - Step 7
- REMOVE FRONT FENDER FRONT SPLASH SHIELD RH
Refer to PROCEDURE - Step 8
- REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 9
- REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 10
- DRAIN COOLANT (for Inverter)
Refer to PROCEDURE - Step 1
- REMOVE FRONT BUMPER ASSEMBLY
for Sport Package: Refer to REMOVAL [03/2024 - ]
except Sport Package: Refer to REMOVAL [03/2024 - ]
- REMOVE FRONT NO. 2 BUMPER ENERGY ABSORBER
Refer to PROCEDURE - Step 46
- REMOVE FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
Refer to PROCEDURE - Step 51
- REMOVE HEADLIGHT ASSEMBLY LH
for LED Type Turn Signal Light: Refer to REMOVAL [11/2021 - ]
for Bulb Type Turn Signal Light: Refer to REMOVAL [11/2021 - ]
- REMOVE HEADLIGHT ASSEMBLY RH
- Use the same procedure as for the LH side.
- REMOVE INLET AIR CLEANER ASSEMBLY
Refer to PROCEDURE - Step 4
- REMOVE HOOD SUPPORT TENSION SPRING
Refer to PROCEDURE - Step 3 - REMOVE HOOD LOCK CONTROL COVER
Refer to PROCEDURE - Step 8
- DISCONNECT HOOD LOCK CONTROL CABLE AND LEVER SET
Refer to PROCEDURE - Step 9
- REMOVE HOOD LOCK CONTROL JUNCTION ASSEMBLY
Refer to PROCEDURE - Step 10
- REMOVE HOOD LOCK ASSEMBLY LH
Refer to PROCEDURE - Step 11
- REMOVE HOOD LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
Refer to PROCEDURE - Step 12
- REMOVE NO. 2 RADIATOR TO SUPPORT SEAL
Refer to PROCEDURE - Step 8
- REMOVE NO. 3 RADIATOR TO SUPPORT SEAL
Refer to PROCEDURE - Step 9
- REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE RH
Refer to PROCEDURE - Step 10
- REMOVE FRONT RADIATOR SIDE AIR GUIDE PLATE LH
Refer to PROCEDURE - Step 11
- REMOVE THERMISTOR ASSEMBLY
Refer to REMOVAL [11/2021 - ]
- REMOVE NO. 1 RADIATOR AIR GUIDE LH
Refer to PROCEDURE - Step 24

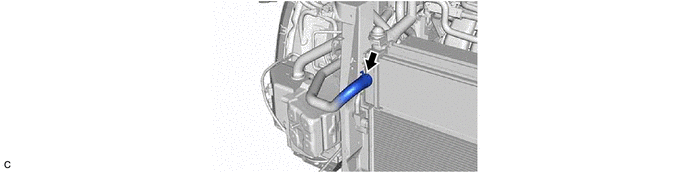

- DISCONNECT NO. 3 INVERTER COOLING HOSE NOTE:
- Put pieces of cloth into the pipes and disconnected hoses or cover the pipes and hoses with plastic bags to prevent foreign matter from entering the radiator assembly (for inverter coolant) and inverter cooling system.
- Do not apply excessive force to the No. 3 inverter cooling hose.
- REMOVE NO. 1 RADIATOR AIR GUIDE RH
Refer to PROCEDURE - Step 26
- REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY
Refer to PROCEDURE - Step 27
- REMOVE RADIATOR ASSEMBLY

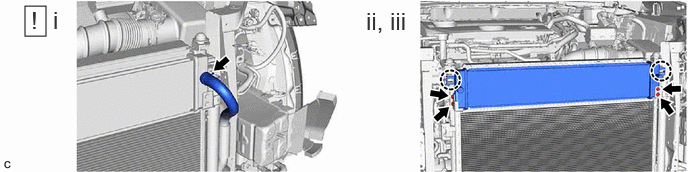

- Slide the clip and disconnect the No. 4 inverter cooling hose from the radiator assembly (for inverter coolant).NOTE:
- Put pieces of cloth into the pipes and disconnected hoses or cover the pipes and hoses with plastic bags to prevent foreign matter from entering the radiator assembly (for inverter coolant) and inverter cooling system.
- Do not apply excessive force to the No. 4 inverter cooling hose.
- Remove the 4 bolts.
- Disengage the 2 claws and remove the radiator assembly (for inverter coolant) from the radiator assembly.
- Slide the clip and disconnect the No. 4 inverter cooling hose from the radiator assembly (for inverter coolant).
