Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.

DRAIN ENGINE COOLANT (for Engine)
Refer to REPLACEMENT [11/2021 - ]
REMOVE RADIATOR UPPER AIR GUIDE PLATE
Refer to PROCEDURE - Step 1 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 1 [03/2024 - ]

REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

Refer to PROCEDURE - Step 19 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 19 [03/2024 - ]

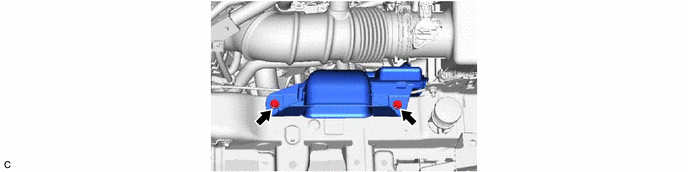

REMOVE INLET AIR CLEANER ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT NO. 2 VENTILATION HOSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Grommet

DISCONNECT NO. 5 WATER BY-PASS HOSE

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SEPARATE THROTTLE BODY WITH MOTOR ASSEMBLY

Disconnect the throttle body with motor assembly connector.
Using an 8 mm socket wrench, remove the 3 bolts and separate the throttle body with motor assembly from the intake manifold.

DISCONNECT NO. 6 WATER BY-PASS HOSE

NOTE:

If the throttle body with motor assembly has been struck or dropped, replace it.

REMOVE THROTTLE BODY GASKET
