Removal [05/2023 - ]: Procedure

  1. PRECAUTION
    WARNING:

    Be sure to read Precaution thoroughly before servicing.

    Refer to PRECAUTION [05/2023 - ]

    GTY824211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:

    After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [05/2023 - ]

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to PROCEDURE - Step 3

    WARNING:
    • Wait at least 90 seconds after disconnecting the cable from the negative(-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY581108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT DOOR TRIM COVER SUB-ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 2

  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 4

  5. REMOVE FRONT DOOR ASSIST GRIP ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 5

  6. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 7

  7. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH

    Refer to PROCEDURE - Step 10

  8. REMOVE NO. 1 SPEAKER WITH BOX ASSEMBLY

    Refer to PROCEDURE - Step 5

  9. REMOVE NO. 1 FRONT DOOR HOLE COVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  10. REMOVE FRONT DOOR FRONT LOWER FRAME UPPER COVER LH

    Refer to PROCEDURE - Step 8

  11. REMOVE FRONT DOOR DIVISION BAR SEAL LH

    Refer to PROCEDURE - Step 12

  12. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY LH

    Refer to PROCEDURE - Step 10

  13. REMOVE FRONT DOOR INSIDE PANEL SUB-ASSEMBLY LH
    1. Insert a hand into the service hole and detach the snap lock and remove the door lock side rod as shown in the illustration.
      GTY952199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
    2. GTY786781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt from the vehicle body.

    3. GTY786782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Detach the claws and disconnect the front door wire LH.

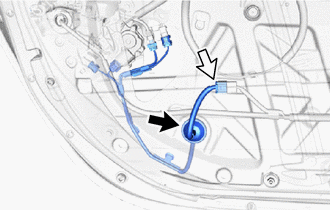

    4. Remove the grommet and disconnect the connector.
      GTY953924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Grommet
      Connector
    5. GTY1242968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Open in this Direction

      Detach the claw and open the wire harness protector.

    6. Disconnect the 2 connectors.
    7. Detach the clamps.
      GTY1241603Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

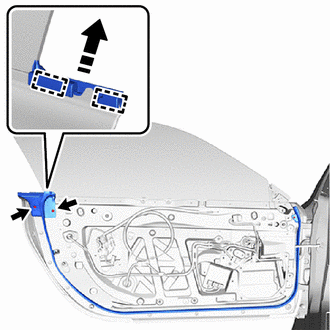

    8. Disconnect the front door weatherstrip LH.
      GTY953490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      1. Using a clip remover, remove the 2 clips.
      2. Detach the hooks and disconnect the front door weatherstrip LH as shown in the illustration.
    9. Remove the 4 bolts.
      GTY954084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      "TORX" screw
      Bolt
      "TORX" bolt
      (w/ Rubber Cushion)
    10. Using a T30 "TORX" socket wrench, remove the "TORX" bolt and 10 "TORX" screws.
    11. Detach the center door guide piece in the direction indicated by the arrow shown in the illustration and remove the front door inside panel sub-assembly LH together with the front door glass sub-assembly LH.
      NOTE:
      • Although CFRP material has high strength, there is a possibility of cracking if an excessive load is applied. As a result, pay attention to how it is handled.
      • Perform this operation with 2 or more people because of the risk of deformation or damage.
      • Be careful not to damage the front door glass sub-assembly LH.
      GTY953141Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  14. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH
    1. Disconnect the connector.
      GTY783200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      "TORX" screw
      Connector
    2. Using a T30 "TORX" socket wrench, remove the 3 screws.
  15. REMOVE DOOR LOCK WIRING HARNESS SEAL
    1. When reusing the front door lock with motor assembly LH:
      GTY802852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the door lock wire harness seal from the front door lock with motor assembly LH.
  16. REMOVE FRONT DOOR LOCK COVER SUB-ASSEMBLY LH
    1. Using a screwdriver, detach the claws as shown in the illustration.
      GTY794734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Open in this Direction
    2. Detach the claws to remove the front door lock cover sub-assembly LH.
      GTY802858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE FRONT DOOR OPEN LEVER LOCK REMOTE CONTROL CABLE
    1. Detach the clamp and remove the front door open lever lock remote control cable from the front door lock with motor assembly LH as shown in the illustration.
      GTY793447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  18. REMOVE FRONT DOOR LOCK / UNLOCK KNOB INSIDE LOCKING CABLE
    1. Detach the clamp and remove the front door lock / unlock knob inside locking cable from the front door lock with motor assembly LH as shown in the illustration.
      GTY812592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
