Removal [07/2020 - ]: Procedure

  1. REMOVE FRONT DOOR TRIM COVER SUB-ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 2 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 2 [05/2023 - ]

  2. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH (for Driver Side)

    Refer to PROCEDURE - Step 4 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 4 [05/2023 - ]

  3. REMOVE FRONT DOOR ASSIST GRIP ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 5 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 5 [05/2023 - ]

  4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY RH (for Front Passenger Side)

    Refer to PROCEDURE - Step 7 [07/2020 - 05/2023] , or refer to PROCEDURE - Step 7 [05/2023 - ]

  5. REMOVE NO. 1 SPEAKER WITH BOX ASSEMBLY
    NOTE:

    Do not touch the cone part of the speaker.

    1. Disconnect the connector.

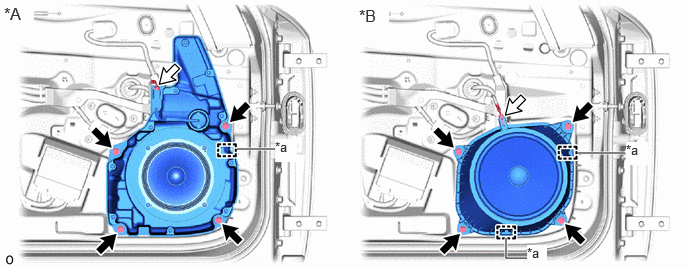

      GTY963698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for 12 Speakers *B for 13 Speakers
      *a Guide - -
      Screw Connector
    2. Remove the 4 screws.
    3. Detach the guide and remove the No. 1 speaker with box assembly.
