Removal [12/2023 - ]: Procedure

  1. REMOVE FRONT SEAT ASSEMBLY LH

    Refer to REMOVAL [12/2023 - ]

  2. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH

    Refer to REMOVAL [12/2023 - ]

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 16

  4. REMOVE DOOR SCUFF PLATE ASSEMBLY LH

    Refer to PROCEDURE - Step 8

  5. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 10

  6. REMOVE CENTER PILLAR LOWER GARNISH LH

    Refer to PROCEDURE - Step 38

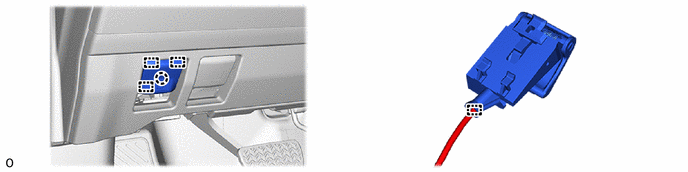

  7. REMOVE FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY
    1. GTY1215911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE FUEL FILLER OPENING LID LOCK RETAINER
    1. GTY1213424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  9. SEPARATE FRONT FLOOR CARPET ASSEMBLY
    1. GTY1216787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Peel back the front floor carpet assembly as shown in the illustration.

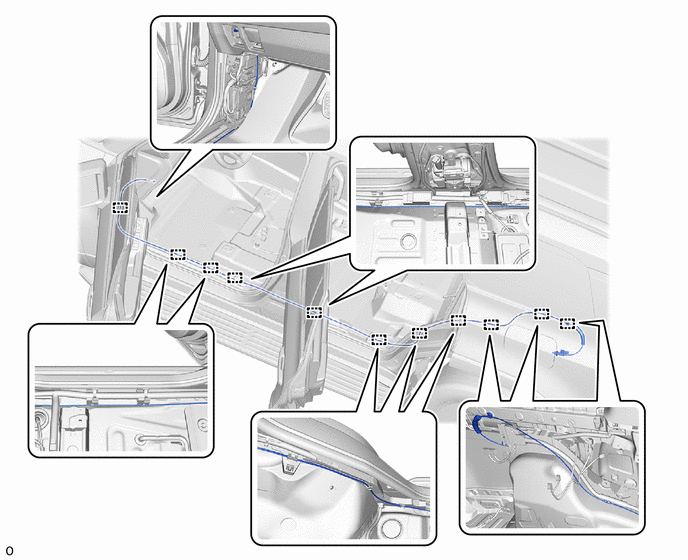

  10. REMOVE FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY
    1. GTY1215909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
