Reassembly [12/2023 - ]: Procedure

  1. INSTALL BACK DOOR SIDE MALE STOPPER LH

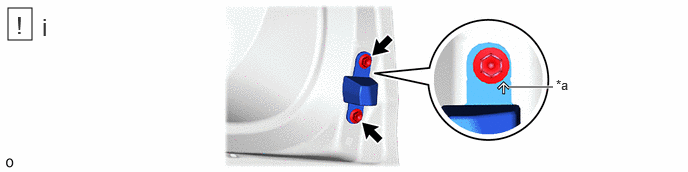

    1. GTY1210858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Arrow mark - -
      1. Install the back door side male stopper LH with the 2 bolts.

        Torque: 7.5 N*m (76 kgf*cm, 66 in.*lbf)

        HINT:

        With the door closed, install the back door side male stopper LH so that the arrow marker is facing the top side of the vehicle.

  2. INSTALL BACK DOOR SIDE MALE STOPPER RH
    1. Use the same procedure described for the LH side.
  3. INSTALL DOOR DUST PROOF SEAL
  4. INSTALL NO. 1 BACK DOOR WIRE
  5. INSTALL HOLE PLUG
  6. INSTALL CUSHION
  7. INSTALL BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY
  8. INSTALL BACK DOOR OPENER SWITCH ASSEMBLY
  9. INSTALL REAR TELEVISION CAMERA ASSEMBLY
  10. INSTALL NO. 1 CAMERA CLEANER NOZZLE ASSEMBLY
  11. INSTALL REAR LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  12. INSTALL REAR LICENSE LIGHT COVER
    Refer to PROCEDURE - Step 2
  13. INSTALL BACK DOOR NO. 5 SERVICE HOLE COVER
  14. INSTALL HOLE PLUG
  15. INSTALL BACK DOOR OUTSIDE LOWER GARNISH SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 3
  16. INSTALL BACK DOOR SIDE GARNISH LH
  17. INSTALL BACK DOOR NO. 1 SERVICE HOLE COVER
  18. INSTALL BACK DOOR NO. 2 WEATHERSTRIP

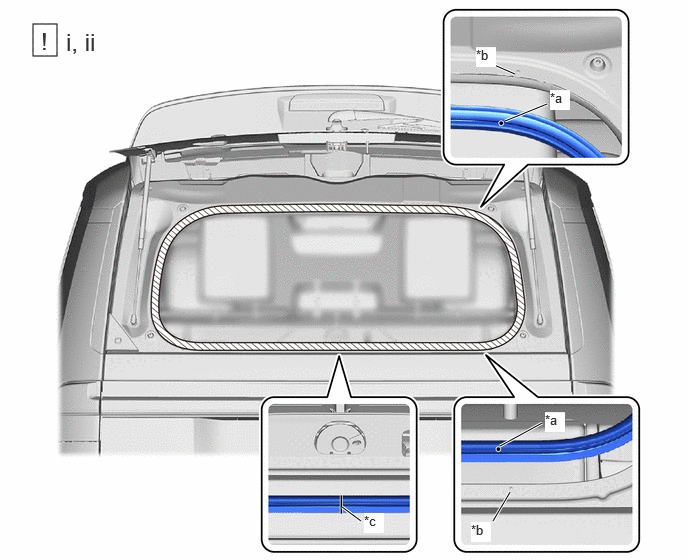

    1. GTY1218540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark *b Flange Position
      *c Joint - -
      1. Remove any non-drying sealer on the body with non-residue solvent.
      2. Align the matchmarks on a new back door No. 2 weatherstrip with the flange positions on the back door panel, and install the back door No. 2 weatherstrip.
        NOTE:

        Always align the matchmark when installing the part. If the matchmark position is out of place, water leaks may occur.

        HINT:

        To easily install the weatherstrip, first install the area with the matchmark as shown in the illustration. Then install the part toward the corners and push any excess length into the corners.

  19. INSTALL BACK DOOR GLASS
    Refer to PROCEDURE - Step 17
  20. INSTALL BACK DOOR STAY BOLT
    Refer to PROCEDURE - Step 1
  21. INSTALL BACK WINDOW STAY ASSEMBLY LH
    Refer to PROCEDURE - Step 2
  22. INSTALL BACK WINDOW STAY ASSEMBLY RH
    1. Use the same procedure described for the LH side.
  23. INSTALL REAR SPOILER SUB-ASSEMBLY
  24. INSTALL BACK DOOR UPPER DAMPER STAY BRACKET LH
    See step  2
  25. INSTALL BACK DOOR UPPER DAMPER STAY BRACKET RH
    1. Use the same procedure described for the LH side.
  26. INSTALL BACK DOOR LOWER DAMPER STAY BRACKET LH
    See step  1
  27. INSTALL BACK DOOR LOWER DAMPER STAY BRACKET RH
    1. Use the same procedure described for the LH side.
  28. INSTALL POWER BACK DOOR SENSOR ASSEMBLY LH
  29. INSTALL POWER BACK DOOR SENSOR ASSEMBLY RH
  30. INSTALL BACK DOOR NO. 4 SERVICE HOLE COVER
  31. INSTALL BACK DOOR NO. 3 SERVICE HOLE COVER
  32. INSTALL POWER BACK DOOR UNIT ASSEMBLY LH
    See step  5
  33. INSTALL POWER BACK DOOR UNIT ASSEMBLY RH
  34. INSTALL BACK WINDOW LOCK ASSEMBLY
    Refer to PROCEDURE - Step 1
  35. INSTALL REAR WIPER LINK ASSEMBLY
    Refer to PROCEDURE - Step 1
  36. INSTALL REAR WIPER MOTOR ASSEMBLY
    Refer to PROCEDURE - Step 2
  37. INSTALL REAR WIPER LINK PIVOT WITH WASHER PACKING NUT
    Refer to PROCEDURE - Step 3
  38. INSTALL REAR WIPER LINK CAP
    Refer to PROCEDURE - Step 4
  39. INSTALL REAR WIPER ARM AND BLADE ASSEMBLY
    Refer to PROCEDURE - Step 5
  40. INSPECT REAR WIPER ARM AND BLADE ASSEMBLY

    Refer to PROCEDURE - Step 6

  41. INSTALL REAR WIPER SHAFT COVER
  42. INSTALL BACK DOOR GARNISH (w/ Digital Inner Mirror)
  43. INSTALL REAR INNER MIRROR CAMERA ASSEMBLY (w/ Digital Inner Mirror)
  44. INSTALL MULTIPLEX NETWORK DOOR ECU
  45. INSTALL BACK DOOR LOCK ASSEMBLY WITH COURTESY LIGHT SWITCH
    Refer to PROCEDURE - Step 1
  46. INSTALL BACK DOOR NO. 2 SERVICE HOLE COVER
  47. INSTALL NO. 3 SPEAKER WITH BOX ASSEMBLY
    Refer to PROCEDURE - Step 1
  48. INSTALL NO. 2 SPEAKER WITH BOX ASSEMBLY (for 21 Speakers)
    Refer to PROCEDURE - Step 3
  49. INSTALL NO. 1 SPEAKER WITH BOX ASSEMBLY (for 21 Speakers)
    Refer to PROCEDURE - Step 4
  50. INSTALL BACK DOOR SERVICE HOLE COVER
  51. INSTALL BACK DOOR TRIM PANEL ASSEMBLY
  52. INSTALL BACK DOOR LOCK COVER
  53. INSTALL BACK DOOR LOCK COVER
  54. INSTALL BACK DOOR FINISH COVER
  55. INSTALL BACK DOOR INSIDE HANDLE
  56. INSTALL BACK DOOR SIDE GARNISH LH
  57. INSTALL BACK DOOR SIDE GARNISH RH
  58. INSTALL BACK DOOR CENTER GARNISH (w/o Digital Inner Mirror)
  59. INSTALL BACK DOOR CENTER GARNISH (w/ Digital Inner Mirror)
  60. INITIALIZE POWER BACK DOOR SYSTEM

    Refer to INITIALIZATION [12/2023 - ]

  61. INSPECT POWER BACK DOOR SYSTEM

    Refer to OPERATION CHECK [12/2023 - ]

  62. INSPECT POWER DOOR LOCK OPERATION

    Refer to INITIALIZATION [12/2023 - ]

  63. PERFORM CALIBRATION

    Refer to BEFORE STARTING ADJUSTMENT [12/2023 - ]
