Adjustment [12/2023 - ]: Procedure

INSPECT BACK DOOR

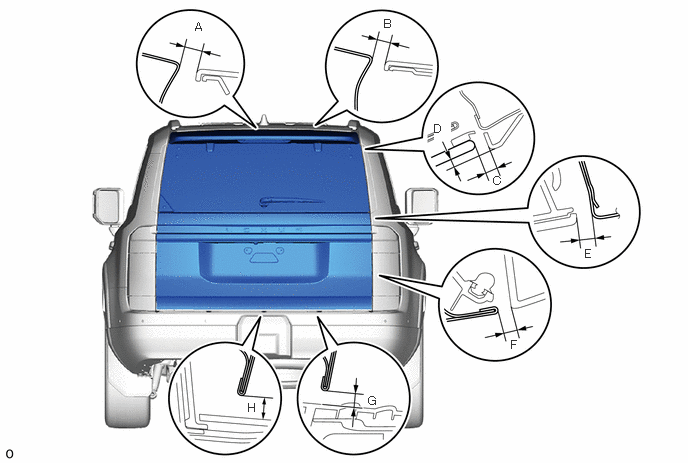

Check that the clearance measurements of areas A to H are within the standard ranges.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

STANDARD CLEARANCE:

Area	Measurement	Area	Measurement
A	11.05 to 12.05 mm (0.435 to 0.474 in.)	B	8.95 to 13.95 mm (0.352 to 0.549 in.)
C	3.1 to 9.1 mm (0.122 to 0.358 in.)	D	1.9 to 7.9 mm (0.0748 to 0.3110 in.)
E	3.35 to 7.35 mm (0.132 to 0.289 in.)	F	3.35 to 7.35 mm (0.132 to 0.289 in.)
G	7.85 to 11.85 mm (0.309 to 0.467 in.)	H	7.85 to 11.85 mm (0.309 to 0.467 in.)

REMOVE ROPE HOOK ASSEMBLY (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 10
REMOVE DECK BOARD SUB-ASSEMBLY (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 12
REMOVE REAR DECK TRIM COVER (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 11
REMOVE REAR FLOOR BOARD REAR LH (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 13
REMOVE FRONT DECK FLOOR BOX (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 16
REMOVE REAR FLOOR MAT REAR SUPPORT PLATE (w/o Rear No. 2 Seat)
Refer to PROCEDURE - Step 15
REMOVE DECK BOARD SUB-ASSEMBLY (w/ Rear No. 2 Seat)
Refer to PROCEDURE - Step 2
REMOVE REAR FLOOR MAT REAR SUPPORT PLATE (w/ Rear No. 2 Seat)
Refer to PROCEDURE - Step 3

ADJUST BACK DOOR

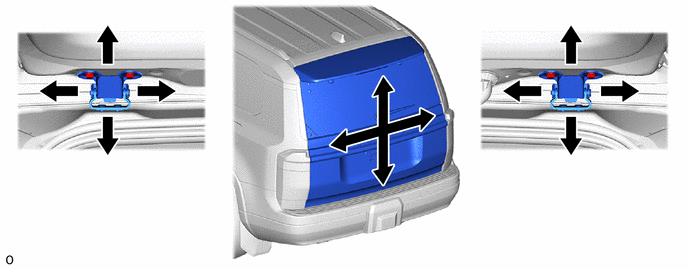

Loosen the 4 hinge bolts on the back door and adjust the back door position.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Tighten the 4 hinge bolts on the vehicle body after adjustment.
Torque: 19.5 N*m (199 kgf*cm, 14 ft.*lbf)

Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

Using a brass bar and a hammer, hit the striker to adjust its position.
Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.
Torque: 23 N*m (235 kgf*cm, 17 ft.*lbf)
