Removal [12/2023 - ]: Procedure

  1. REMOVE TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Refer to PROCEDURE - Step 3

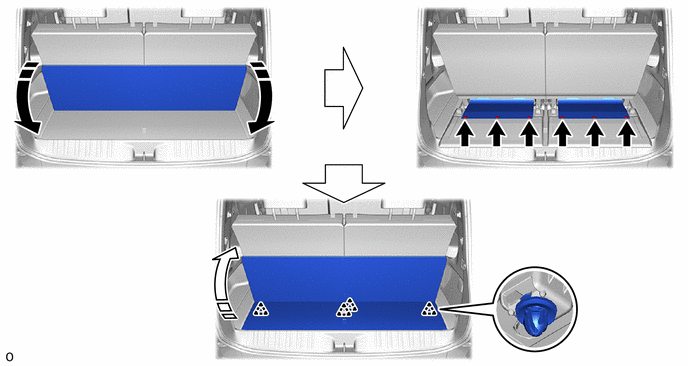

  2. REMOVE DECK BOARD ASSEMBLY
    1. GTY1216486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1) Remove in this Direction (2)

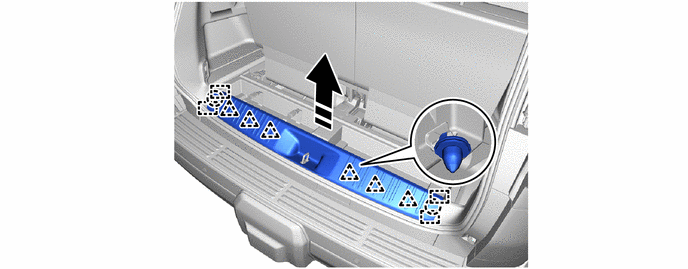

  3. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE
    1. GTY1211955Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  4. REMOVE REAR FLOOR BOARD REAR LH
    1. GTY1213045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  5. REMOVE REAR FLOOR BOARD REAR RH
    1. Use the same procedure described for the LH side.

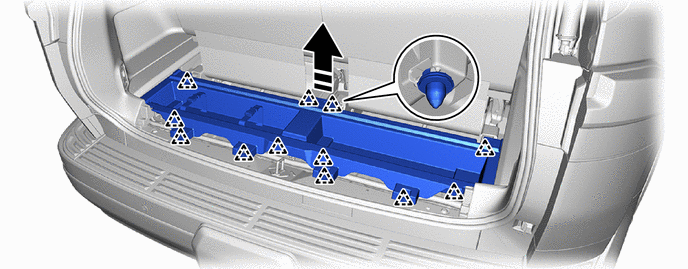

  6. REMOVE REAR DECK FLOOR BOX
    1. GTY1211131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  7. REMOVE NO. 2 SEAT NO. 1 LEG COVER LH
    1. GTY1215134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  8. REMOVE REAR NO. 2 SEAT ASSEMBLY LH
    1. GTY1217159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for Power Seat - -
      Remove in this Direction - -
      1. Remove the 2 bolts.
      2. for Power Seat:

        Disconnect the connector.

      3. Disconnect the connector.
      4. Remove the 2 bolts.
      5. Pull out the 2 location pins of the rear No. 2 seat assembly LH.
      6. Remove and carry the rear No. 2 seat assembly LH out of the vehicle.
        NOTE:
        • Protect the seat legs.
        • Carrying the rear No. 2 seat assembly LH from the vehicle must be performed by multiple people.
        • Do not damage the rear No. 2 seat assembly LH, body exterior or interior parts.
