Disassembly [12/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2023 - ]
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to REMOVAL [12/2023 - ]

  3. REMOVE REAR DOOR UPPER TRIM COVER LH
    1. GTY1217483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover A, detach the claw to remove the rear door upper trim cover LH.
  4. REMOVE REAR DOOR ARMREST COVER LH
    1. GTY1211393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a moulding remover A, remove the rear door armrest cover LH.
  5. REMOVE COURTESY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
    1. GTY1217368Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH
    1. GTY1217367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE REAR DOOR NO. 1 VENT SEAL LH
    1. GTY1217366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR DOOR REAR BELT SEAL LH
    1. GTY1217364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE REAR DOOR SERVICE HOLE COVER LH
    HINT:
    Remove any remaining butyl tape from the rear door panel.
    1. GTY1219457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE REAR DOOR FRAME GARNISH LH
    1. GTY1217362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE REAR DOOR GLASS RUN LH
    1. GTY1217361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH
    1. GTY1217170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Peel back the rear door weatherstrip LH until the installation screw can be seen.
      2. Remove the screw.
      3. Remove the 2 bolts and rear door window division bar sub-assembly LH.
  14. REMOVE REAR DOOR REAR WINDOW FRAME MOULDING LH
    1. GTY1217586Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE REAR DOOR QUARTER WINDOW GLASS LH
    1. GTY1219139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  16. REMOVE REAR DOOR QUARTER WINDOW WEATHERSTRIP LH
    1. GTY1217584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH
    1. GTY1216117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Move in this Direction - -
      1. Connect the connector.
      2. Connect the cable to the negative (-) battery terminal and turn the ignition switch to ON.

        Refer to INSTALLATION [12/2023 - ]

      3. Move the rear door glass sub-assembly LH to the bottom position.

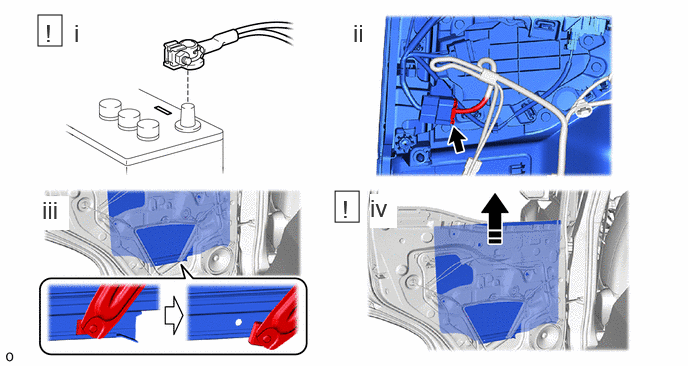

    2. GTY1213528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Turn the ignition switch off and disconnect the cable from the negative (-) battery terminal.

        Refer to REMOVAL [12/2023 - ]

      2. Disconnect the connector.
      3. Separate the rear door glass sub-assembly LH from the rear door window regulator assembly.
      4. Remove the rear door glass sub-assembly LH as shown in the illustration.
        NOTE:

        Do not damage the rear door glass sub-assembly LH.

  18. REMOVE REAR DOOR WINDOW REGULATOR ASSEMBLY
    1. GTY1217579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR DOOR LOCK CHILD PROTECTION COVER LH

    Refer to PROCEDURE - Step 16

  20. REMOVE REAR DOOR LOCK ASSEMBLY LH
    Refer to PROCEDURE - Step 17
  21. REMOVE DOOR LOCK WIRING HARNESS SEAL
    Refer to PROCEDURE - Step 18
  22. REMOVE CURTAIN HOOK LH (w/ Sunshade)
    1. GTY1211960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -

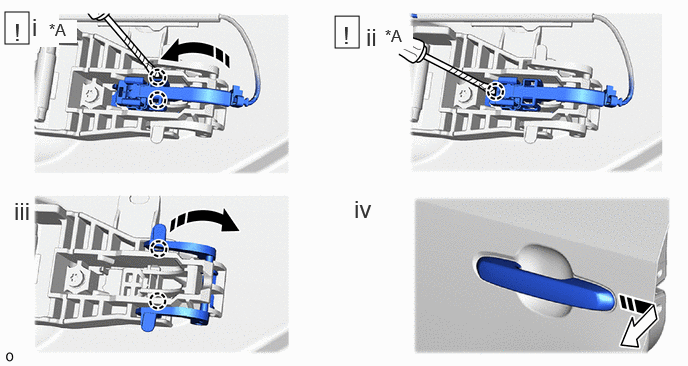

  23. REMOVE REAR DOOR OUTSIDE HANDLE ASSEMBLY LH
    1. GTY1218134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Entry and Start System - -
      Remove in this Direction (1) Remove in this Direction (2)
      1. w/ Entry and Start System:

        Using a screwdriver with its tip wrapped in protective tape, detach the claw and pull up the connector cover as shown in the illustration.

      2. w/ Entry and Start System:

        Using a screwdriver with its tip wrapped in protective tape, disconnect the connector.

      3. Detach the claw and move the holder as shown in the illustration.
      4. Remove the rear door outside handle assembly LH as shown in the illustration.
  24. REMOVE REAR DOOR OUTSIDE HANDLE COVER LH
    1. GTY1216105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a T30 "TORX" socket wrench, loosen the "TORX" screw.
      2. Detach the claw and remove the rear door outside handle cover LH.
  25. REMOVE REAR DOOR OUTSIDE NO. 1 HANDLE PAD LH
    1. GTY1217572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  26. REMOVE REAR DOOR OUTSIDE NO. 2 HANDLE PAD LH
    1. GTY1217571Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

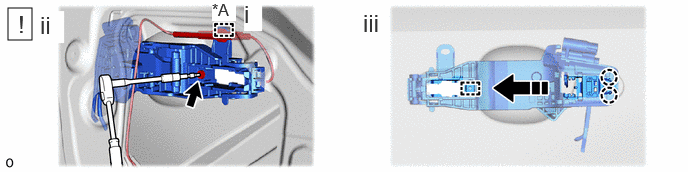

  27. REMOVE REAR DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY LH
    1. GTY1216979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Entry and Start System - -
      Remove in this Direction - -
      1. w/ Entry and Start System:

        Detach the clamp.

      2. Using a T30 "TORX" socket wrench, loosen the screw.
        NOTE:

        The screw cannot be removed because it is integrated into the rear door outside handle frame sub-assembly LH.

      3. Detach the claw and guide to remove the rear door outside handle frame sub-assembly LH as shown in the illustration.
  28. REMOVE REAR SPEAKER ASSEMBLY (for 10 Speakers)
    Refer to PROCEDURE - Step 7

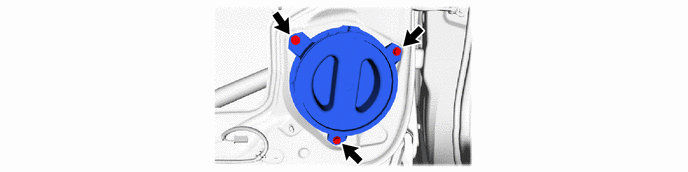

  29. REMOVE REAR DOOR SPEAKER COVER (for 21 Speakers)
    1. GTY1217534Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

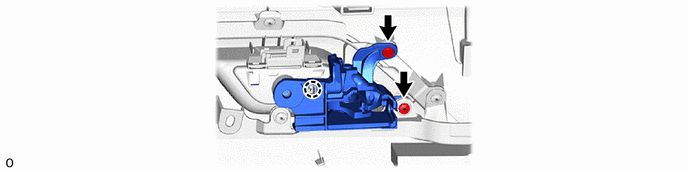

  30. REMOVE REAR DOOR INSIDE HANDLE SUB-ASSEMBLY LH
    1. GTY1217577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE REAR DOOR LOCK CONTROL KNOB HOLDER
    1. GTY1217576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

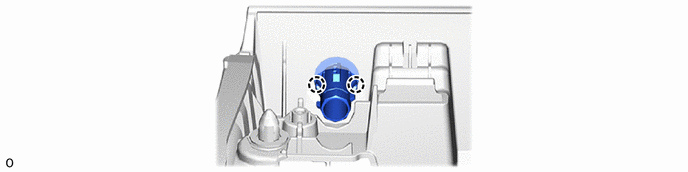

  32. REMOVE REAR DOOR LOCK CONTROL KNOB BEZEL LH
    1. GTY1217575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

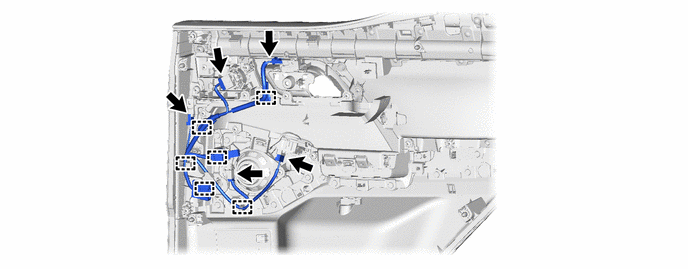

  33. REMOVE REAR DOOR WIRE RH

    HINT:

    The illustration is an example, so the details may differ.

    1. GTY1217574Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

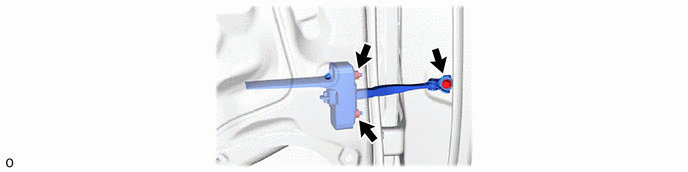

  34. REMOVE REAR DOOR CHECK ASSEMBLY LH
    1. GTY1219501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  35. REMOVE REAR DOOR WEATHERSTRIP LH
    NOTE:

    When removing the rear door weatherstrip LH, if the double-sided tape is difficult to remove, heat the adhesive of the rear door weatherstrip LH using a heat light.

    Standard Value

    Part Temperature
    Rear Door Weatherstrip LH 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear door weatherstrip LH excessively.

    1. GTY1219416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape - -
      1. Heat the adhesive of the rear door weatherstrip LH using a heat light.
      2. Detach the double-sided Tape and clip to remove the rear door weatherstrip LH.
  36. REMOVE REAR DOOR NO. 2 WEATHERSTRIP LH
    NOTE:

    When removing the rear door No. 2 weatherstrip LH, if the double-sided tape is difficult to remove, heat the adhesive of the rear door No. 2 weatherstrip LH using a heat light.

    Standard Value

    Part Temperature
    Rear Door No. 2 Weatherstrip LH 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear door No. 2 weatherstrip LH excessively.

    1. GTY1214078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape - -
      1. Heat the adhesive of the rear door No. 2 weatherstrip LH using a heat light.
      2. Detach the double-sided Tape and clip to remove the rear door No. 2 weatherstrip LH.
  37. REMOVE REAR DOOR NO. 3 WEATHERSTRIP LH (w/ Weatherstrip)
    NOTE:

    When removing the rear door No. 3 weatherstrip LH, if the double-sided tape is difficult to remove, heat the adhesive of the rear door No. 3 weatherstrip LH using a heat light.

    Standard Value

    Part Temperature
    Rear Door No. 3 Weatherstrip LH 20 to 30°C (68 to 86°F)
    WARNING:
    • Do not touch the heat light and heated parts.
    • Touching the heat light may result in burns.
    • Touching heated parts for a long time may result in burns.
    GTY749838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Heated Part
    *b Heat Light
    NOTE:

    Do not heat the rear door No. 3 weatherstrip LH excessively.

    1. GTY1214852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Double-sided Tape - -
      1. Heat the adhesive of the rear door No. 3 weatherstrip LH using a heat light.
      2. Detach the double-sided Tape and clip to remove the rear door No. 3 weatherstrip LH.
  38. REMOVE REAR DOOR BELT MOULDING LH
    Refer to PROCEDURE - Step 15
  39. REMOVE REAR DOOR WINDOW FRAME MOULDING LH (CENTER PILLAR SIDE)
    Refer to PROCEDURE - Step 4
  40. REMOVE REAR DOOR MOULDING OUTSIDE LH

    Refer to REMOVAL [12/2023 - ]

  41. REMOVE NO. 2 OUTSIDE MOULDING RETAINER
    1. GTY1217561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  42. REMOVE REAR DOOR LOWER OUTSIDE MOULDING SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 2
  43. REMOVE REAR DOOR PANEL CUSHION
    1. GTY1217560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE HOLE PLUG
    1. GTY1219499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE REAR DOOR DUST PROOF SEAL
    1. GTY1217559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE SCREW GROMMET
    1. GTY1217558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE NO. 2 BLACK OUT TAPE LH
    Refer to PROCEDURE - Step 3
  48. REMOVE REAR DOOR OUTSIDE STRIPE LH
    Refer to PROCEDURE - Step 4
  49. REMOVE NO. 4 BLACK OUT TAPE LH
    Refer to PROCEDURE - Step 5
  50. REMOVE REAR DOOR LOWER OUTSIDE STRIPE LH
    Refer to PROCEDURE - Step 6
