Removal [12/2023 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2023 - ]
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Refer to REMOVAL [12/2023 - ]

  3. REMOVE REAR DOOR UPPER TRIM COVER LH
    Refer to PROCEDURE - Step 3
  4. REMOVE REAR DOOR ARMREST COVER LH
    Refer to PROCEDURE - Step 4
  5. REMOVE COURTESY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 5
  6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 6

  7. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP LH

    Refer to PROCEDURE - Step 7

  8. REMOVE REAR DOOR REAR BELT SEAL LH

    Refer to PROCEDURE - Step 9

  9. REMOVE REAR DOOR SERVICE HOLE COVER LH
    Refer to PROCEDURE - Step 10
  10. REMOVE REAR DOOR FRAME GARNISH LH

    Refer to PROCEDURE - Step 11

  11. REMOVE REAR DOOR GLASS RUN LH

    Refer to PROCEDURE - Step 12

  12. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 13
  13. REMOVE REAR DOOR REAR WINDOW FRAME MOULDING LH

    Refer to PROCEDURE - Step 14

  14. REMOVE REAR DOOR QUARTER WINDOW GLASS LH

    Refer to PROCEDURE - Step 15

  15. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 17
  16. REMOVE REAR DOOR LOCK CHILD PROTECTION COVER LH
    1. GTY1217537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE REAR DOOR LOCK ASSEMBLY LH

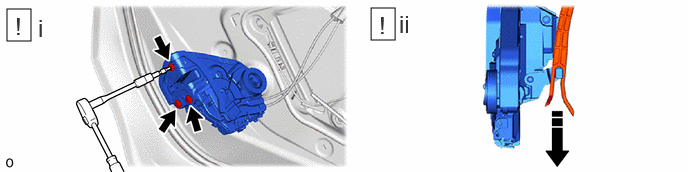

    1. GTY1213920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a T30 "TORX" socket wrench, remove the 3 "TORX" screws.
      2. Move the rear door lock assembly LH downward as shown in the illustration to disconnect it from the release plate of the rear door outside handle frame sub-assembly LH, and remove rear door lock assembly LH.
  18. REMOVE DOOR LOCK WIRING HARNESS SEAL
    NOTE:

    When reusing a removed rear door lock assembly, replace the door lock wiring harness seal with a new one.
    1. GTY1217546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR DOOR LOCK COVER SUB-ASSEMBLY LH
    1. GTY1217153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped in protective tape, detach the claw as shown in the illustration.
      2. Detach the guide to remove the rear door lock cover sub-assembly.
  20. REMOVE REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH
    1. GTY1212329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  21. REMOVE REAR DOOR INSIDE LOCKING CABLE ASSEMBLY LH
    1. GTY1214073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
