Removal [12/2023 - ]: Procedure
- REMOVE REAR DOOR UPPER TRIM COVER LH
Refer to PROCEDURE - Step 3 - REMOVE REAR DOOR ARMREST COVER LH
Refer to PROCEDURE - Step 4 - REMOVE COURTESY LIGHT ASSEMBLY
Refer to PROCEDURE - Step 1 - REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 6

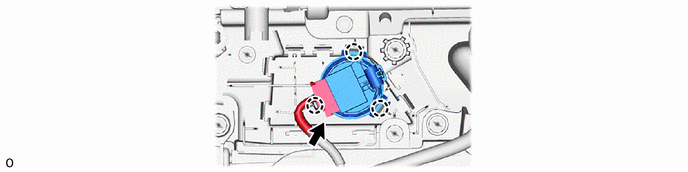

- REMOVE REAR NO. 3 SPEAKER ASSEMBLY (for 21 Speakers) NOTE:
Do not touch the cone of the rear No. 3 speaker assembly.
- REMOVE REAR NO. 2 SPEAKER ASSEMBLY (for 21 Speakers) NOTE:
Do not touch the cone of the rear No. 2 speaker assembly.
- REMOVE REAR SPEAKER ASSEMBLY (for 10 Speakers) NOTE:
Do not touch the cone of the rear speaker assembly.
