Removal [12/2023 - ]: Procedure
- REMOVE ASSIST GRIP PLUG (for Side)
Refer to PROCEDURE - Step 21
- REMOVE FRONT ASSIST GRIP PLUG (for Side)
- Use the same procedure described for the assist grip plug.
- REMOVE PILLAR ASSIST GRIP ASSEMBLY LH (for Side)
Refer to PROCEDURE - Step 22
- REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP LH (for Side)
- Pull back the front door opening trim weatherstrip LH so that the front pillar garnish assembly LH can be removed.
Refer to PROCEDURE - Step 3
- Pull back the front door opening trim weatherstrip LH so that the front pillar garnish assembly LH can be removed.
- REMOVE FRONT PILLAR GARNISH ASSEMBLY LH (for Side)
Refer to PROCEDURE - Step 23 - REMOVE NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY (for Side)
Refer to PROCEDURE - Step 36
- REMOVE NO. 1 SPEAKER OPENING COVER ASSEMBLY (for Center)

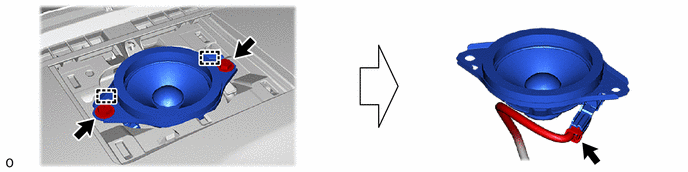

Refer to PROCEDURE - Step 38 - REMOVE FRONT NO. 4 SPEAKER ASSEMBLY (for Side) NOTE:
Do not touch the cone of the front No. 4 speaker assembly.
- REMOVE FRONT NO. 5 SPEAKER ASSEMBLY (for Center) NOTE:
Do not touch the cone of the front No. 5 speaker assembly.
