Removal [10/2022 - 10/2024]: Procedure

  1. PRECAUTION (w/ Headup Display)
    1. for 14 Inch Display:

      Refer to PRECAUTION [10/2022 - ]

    2. for 9.8 Inch Display:

      Refer to PRECAUTION [10/2022 - ]
  2. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS
    Refer to PROCEDURE - Step 2 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 2 [08/2023 - ]
  3. REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH

    Refer to PROCEDURE - Step 2

  4. REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH

    Refer to PROCEDURE - Step 3

  5. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
    1. for UA81E / UA81F:

      Refer to PROCEDURE - Step 1

    2. for P810:

      Refer to PROCEDURE - Step 1

    3. for PC60:

      Refer to PROCEDURE - Step 1

  6. REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
    Refer to PROCEDURE - Step 6
  7. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
    Refer to PROCEDURE - Step 5
  8. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 17 [08/2023 - ]

  9. REMOVE NO. 2 INSTRUMENT SIDE PANEL
    Refer to PROCEDURE - Step 11 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 11 [08/2023 - ]
  10. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    Refer to PROCEDURE - Step 12 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 12 [08/2023 - ]
  11. DISCONNECT INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. GTY1134888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

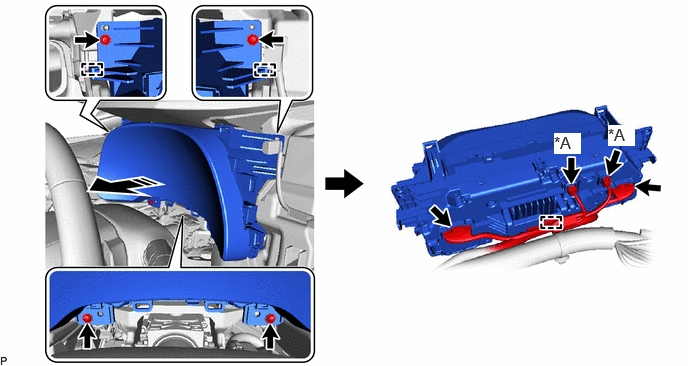

  12. REMOVE COMBINATION METER ASSEMBLY
    1. GTY1136401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A w/ Headup Display - -
      Remove in this Direction - -
