Removal [10/2022 - ]: Procedure
- PRECAUTION
- for 14 Inch Display:
Refer to PRECAUTION [10/2022 - ]
- for 9.8 Inch Display:
Refer to PRECAUTION [10/2022 - ]
- for 14 Inch Display:
- REMOVE NO. 2 CONSOLE UPPER PANEL GARNISH
Refer to PROCEDURE - Step 2 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 2 [10/2024 - ]
- REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH
Refer to PROCEDURE - Step 3 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 3 [10/2024 - ]
- REMOVE CENTER INSTRUMENT PANEL REGISTER ASSEMBLY
Refer to PROCEDURE - Step 6 [10/2022 - 10/2024] , or refer to PROCEDURE - Step 6 [10/2024 - ]
- REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET
HINT:
The illustration shown is an example only. The illustration may differ from the actual parts according to the model.

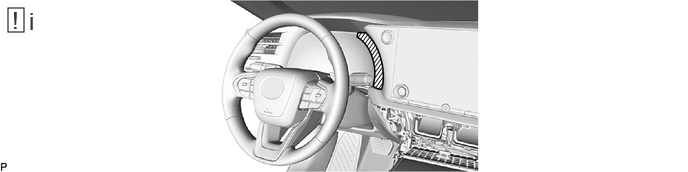

- Apply protective tape to the area shown in the illustration.

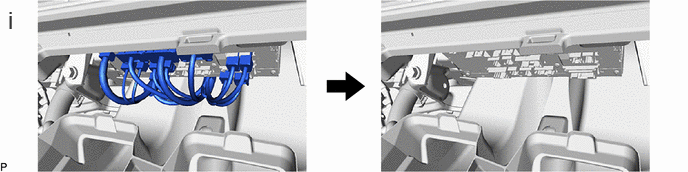

- Disconnect each connector.

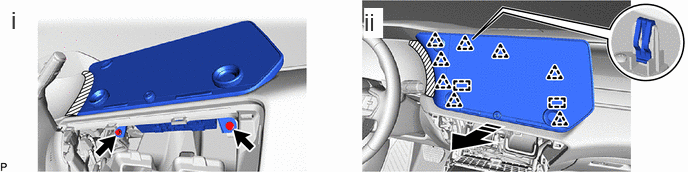

Remove in this Direction - - - Remove the 2 bolts.
- Disengage the 8 clips and 2 guides to separate the radio and display receiver assembly with bracket as shown in the illustration.

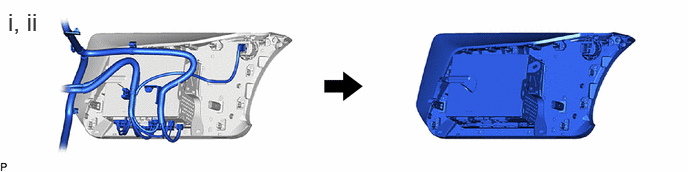

- Disengage each clamp.
- Disconnect each connector to remove the radio and display receiver assembly with bracket.
- REMOVE ENGINE SWITCH (for Gasoline Model)
Refer to PROCEDURE - Step 2
- REMOVE POWER SWITCH (except Gasoline Model)
- for T24A-FTS:
Refer to PROCEDURE - Step 2
- for A25A-FXS:
Refer to PROCEDURE - Step 2
- for T24A-FTS:
- REMOVE NO. 1 RADIO RECEIVER BRACKET
- REMOVE NO. 2 RADIO RECEIVER BRACKET
