Disassembly [12/2021 - 10/2023]: Procedure

  1. SECURE AUTOMATIC TRANSMISSION ASSEMBLY
    1. GTY1036383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE TCM
    1. GTY1036352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE BREATHER PLUG SUB-ASSEMBLY
    1. GTY1036400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Breather Plug (ATM) *2 No. 2 Breather Plug (ATM)
      *3 Breather Plug Hose *4 O-ring
  4. REMOVE TRANSMISSION OIL THERMOSTAT
    1. GTY1036351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    NOTE:
    • When reusing the park/neutral position switch assembly, try not to remove the park/neutral position switch assembly.
    • When removing the parts related to the parking lock, remove the park/neutral position switch assembly.
    • When reusing the park/neutral position switch assembly, put matchmarks on the park/neutral position switch assembly and automatic transmission case sub-assembly.
    1. GTY1039053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark - -
      1. When reusing the park/neutral position switch assembly, put matchmarks on the park/neutral position switch assembly and automatic transmission case sub-assembly.
      2. Remove the nut, spring washer and transmission control shaft lever RH.
      3. Using a screwdriver, pry out the lock washer.
        NOTE:

        Be careful not to damage the park/neutral position switch assembly.

        HINT:

        Tape the screwdriver tip before use.

      4. Remove the nut and lock washer.
      5. Remove the bolt and park/neutral position switch assembly from the automatic transmission case sub-assembly.

        HINT:

        Make sure that the manual valve lever shaft has not been rotated prior to installing the park/neutral position switch assembly as the detent spring may become detached from the manual valve lever shaft.

  6. REMOVE AUTOMATIC TRANSMISSION OIL PAN SUB-ASSEMBLY
    1. GTY1036954Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Overflow Plug *2 No. 1 Transmission Oil Filler Tube
      *3 Gasket - -
      1. Remove the refill plug and gasket from the automatic transmission case sub-assembly.
      2. Using a 6 mm hexagon socket wrench, remove the overflow plug and gasket from the automatic transmission assembly.
      3. Using a 6 mm hexagon socket wrench, remove the No. 1 transmission oil filler tube from the automatic transmission assembly.
      4. Remove the 13 bolts, automatic transmission oil pan sub-assembly and automatic transmission oil pan gasket from the automatic transmission case sub-assembly.
      5. Remove the 4 transmission oil cleaner magnets from the automatic transmission oil pan sub-assembly.
      6. Examine the particles in the automatic transmission oil pan sub-assembly.
        1. Use the removed transmission oil cleaner magnets to collect any steel chips.

          Examine the chips and particles in the automatic transmission oil pan sub-assembly and on the transmission oil cleaner magnets to determine what type of wear might be found in the automatic transmission assembly.

          Result

          Steel (magnetic)

          Bearing, gear and clutch plate wear

          Brass (non-magnetic)

          Bushing wear

  7. REMOVE VALVE BODY OIL STRAINER ASSEMBLY

    Refer to PROCEDURE - Step 9

  8. REMOVE NO. 2 TRANSMISSION OIL PIPE (w/ Stop And Start System)
    1. GTY1036223Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE NO. 3 TRANSMISSION OIL PIPE (w/ Stop And Start System)
    1. GTY1036038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 3 Transmission Oil Pipe *2 No. 4 Transmission Oil Pipe
      *3 O-ring - -
  10. REMOVE OIL PUMP WITH MOTOR ASSEMBLY (w/ Stop And Start System)
    1. GTY1038801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Remove the 3 bolts and oil pump with motor assembly from the automatic transmission case sub-assembly.
      2. Using SST, remove the oil seal from the automatic transmission case sub-assembly.
        • SST: 09308-00010
  11. REMOVE TRANSMISSION VALVE BODY ASSEMBLY
    Refer to PROCEDURE - Step 13
  12. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2)

    Refer to PROCEDURE - Step 2

  13. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)

    Refer to PROCEDURE - Step 3

  14. REMOVE TRANSMISSION WIRE
    Refer to PROCEDURE - Step 4
  15. REMOVE TRANSMISSION OIL PIPE
    1. GTY1036353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE PARKING LOCK PAWL BRACKET
    1. GTY1036354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE PARKING LOCK ROD SUB-ASSEMBLY
    1. GTY1036403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Manual Valve Lever Sub-assembly *2 Parking Lock Rod Sub-assembly
  18. REMOVE PARKING LOCK PAWL SHAFT
    1. GTY1036346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Parking Lock Pawl *2 Parking Lock Pawl Shaft
      *3 Spring *4 E-ring
  19. REMOVE MANUAL VALVE LEVER SUB-ASSEMBLY
    1. GTY1037292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver and a hammer, cut off the spacer and remove it from the manual valve lever shaft.
        NOTE:

        Be careful not to damage the manual valve lever shaft.

        HINT:

        Tape the screwdriver tip before use.

      2. Using a 3 mm pin punch and hammer, remove the spring pin from the manual valve lever shaft.

        HINT:

        Slowly tap out the spring pin so that it does not fall into the automatic transmission case sub-assembly.

      3. Remove the manual valve lever shaft and manual valve lever sub-assembly from the automatic transmission case sub-assembly.
  20. REMOVE NO. 2 FRONT OIL PUMP COVER SUB-ASSEMBLY
    1. GTY1037830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      SST bolt installation position - -
      1. Remove the 11 bolts from the No. 2 front oil pump cover sub-assembly.
      2. Temporarily install the 2 bolts to the position shown in the illustration and remove the No. 2 front oil pump cover sub-assembly.

        HINT:

        Use an M10 x 1.25 bolt.

      3. If the No. 2 front oil pump cover sub-assembly is stuck and cannot be detached:

        Using SST, rotate and remove the No. 2 front oil pump cover sub-assembly by hand as shown in the illustration.

        • SST: 09380-60012
          1. 09381-06010
          2. 09381-06050
          3. 09381-06120
        • SST: 09950-50013
          1. 09955-05010
        • SST: 09322-35010
          1. 09322-03030
      4. Remove the O-ring from the No. 2 front oil pump cover sub-assembly.
      5. Remove the gear thrust washer from the No. 2 front oil pump cover sub-assembly.
  21. REMOVE DRIVE SPROCKET AND TRANSMISSION DRIVE CHAIN
    1. GTY1037855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove While Rotating - -
      1. While rotating the transmission drive chain, remove the drive sprocket and transmission drive chain.
      2. Remove the gear thrust washer from the stator shaft assembly.
  22. REMOVE OIL PUMP ASSEMBLY WITH DRIVEN SPROCKET
    1. GTY1036360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  23. INSPECT TRANSMISSION DRIVE CHAIN
    See step  1
  24. INSPECT DRIVE SPROCKET
    See step  2
  25. REMOVE STATOR SHAFT ASSEMBLY
    1. GTY1038058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Stator Shaft Assembly *2 Thrust Bearing Race
      *3 Thrust Needle Roller Bearing - -
      1. Using a T50 "TORX" socket wrench, remove the 2 screws.
      2. Remove the stator shaft assembly, thrust bearing race and thrust needle roller bearing from the automatic transmission case sub-assembly.
      3. Remove the oil seal ring from the stator shaft assembly.
  26. INSPECT STATOR SHAFT ASSEMBLY
    See step  3

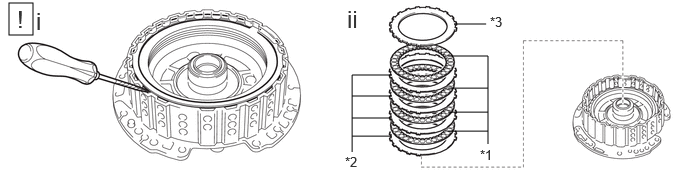

  27. REMOVE NO. 1 BRAKE DISC
    1. GTY1037936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Brake Disc *2 No. 1 Brake Plate
      *3 No. 1 Brake Flange - -
      1. Using a screwdriver, remove the snap ring from the front support sub-assembly.
        NOTE:

        Be careful not to damage the front support sub-assembly.

        HINT:

        Tape the screwdriver tip before use.

      2. Remove the 4 No. 1 brake plates, 4 No. 1 brake discs and No. 1 brake flange from the front support sub-assembly.
  28. INSPECT NO. 1 BRAKE DISC
    See step  4
  29. REMOVE BRAKE PISTON RETURN SPRING SUB-ASSEMBLY (NO. 1 BRAKE)
    1. GTY1038121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver, remove the snap ring from the front support sub-assembly.
        NOTE:

        Be careful not to damage the front support sub-assembly.

        HINT:

        Tape the screwdriver tip before use.

      2. Remove the brake piston return spring sub-assembly (No. 1 brake) from the front support sub-assembly.
  30. INSPECT BRAKE PISTON RETURN SPRING SUB-ASSEMBLY (NO. 1 BRAKE)
    See step  5
  31. REMOVE NO. 1 BRAKE PISTON
    1. GTY1037965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A Front Side *B Rear Side
      *1 No. 1 Brake Piston - -
      *a Cover the oil hole *b Blow air into the oil hole
      1. While holding the No. 1 brake piston, apply compressed air to the oil hole of the front support sub-assembly to remove the No. 1 brake piston from the front support sub-assembly.
      2. Remove the 2 O-rings from the front No. 1 brake piston.
  32. REMOVE FRONT PLANETARY GEAR ASSEMBLY
    1. GTY1036629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE PLANETARY SUN GEAR ASSEMBLY
    1. GTY1037473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Planetary Sun Gear Assembly *2 Front Planetary Gear Assembly
      *3 Thrust Bearing Race *4 Thrust Needle Roller Bearing
      Expand the opening of the bearing Remove in this direction
      1. Remove the planetary sun gear assembly, thrust bearing race and thrust needle roller bearing from the front planetary gear assembly.
      2. Remove the 11 oil seal rings from the front planetary gear assembly.
      3. Remove the 4 needle roller bearings from the front planetary gear assembly as shown in the illustration.
  34. INSPECT FRONT PLANETARY GEAR ASSEMBLY
    See step  8
  35. REMOVE FRONT PLANETARY SUN GEAR SUB-ASSEMBLY
    1. GTY1036521Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Planetary Sun Gear Sub-assembly *2 Thrust Bearing Race
      *3 Thrust Needle Roller Bearing - -
  36. INSPECT FRONT PLANETARY SUN GEAR SUB-ASSEMBLY
    See step  7
  37. REMOVE FRONT PLANETARY OIL RECEIVER
    1. GTY1061590Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  38. REMOVE FRONT PLANETARY RING GEAR WITH C-1 CLUTCH ASSEMBLY
    1. GTY1036316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Planetary Ring Gear with C-1 Clutch Assembly *2 Thrust Bearing Race
      *3 Thrust Needle Roller Bearing - -
  39. REMOVE FRONT PLANETARY RING GEAR
    1. GTY1036864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Planetary Ring Gear *2 C-1 Clutch Assembly with C-2 Drum Sub-assembly
      1. Using a screwdriver, remove the snap ring from the front planetary ring gear with C-1 clutch assembly.
        NOTE:

        Be careful not to damage the front planetary ring gear with C-1 clutch assembly.

        HINT:

        Tape the screwdriver tip before use.

      2. Remove the front planetary ring gear from the C-1 clutch assembly with C-2 drum sub-assembly.
  40. REMOVE C-2 DRUM SUB-ASSEMBLY
    NOTE:

    Do not disassemble the C-1 clutch assembly.

    If disassembled, replace the C-1 clutch assembly with a new one.
    1. GTY1036546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 C-2 Clutch Assembly with C-2 Drum Sub-assembly *2 C-1 Clutch Assembly
      *3 Thrust Needle Roller Bearing *4 Thrust Bearing Race
  41. INSPECT C-1 CLUTCH ASSEMBLY
    See step  11
  42. REMOVE C-2 CLUTCH ASSEMBLY
    1. GTY1036646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 C-2 Clutch Assembly *2 C-2 Drum Sub-assembly
      *3 Thrust Needle Roller Bearing *4 Thrust Bearing Race
  43. REMOVE C-3 CLUTCH ASSEMBLY
    1. GTY1036631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE NO. 2 BRAKE DISC
    1. GTY1037556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Brake Disc *2 No. 2 Brake Plate
      *3 No. 2 Brake Flange - -
      1. Using a screwdriver, remove the snap ring from the automatic transmission case sub-assembly.
        NOTE:

        Be careful not to damage the automatic transmission case sub-assembly.

        HINT:

        Tape the screwdriver tip before use.

      2. Remove the 5 No. 2 brake plates, 5 No. 2 brake discs and No. 2 brake flange from the automatic transmission case sub-assembly.
  45. INSPECT NO. 2 BRAKE DISC
    See step  12
  46. REMOVE NO. 2 BRAKE PISTON
    1. GTY1037187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Set SST on the brake piston return spring sub-assembly (No. 2 brake), automatic transmission case sub-assembly and tighten SST to compress the brake piston return spring sub-assembly (No. 2 brake).
        • SST: 09308-14010
        • SST: 09380-60012
          1. 09381-06010
          2. 09381-06020
          3. 09381-06040
          4. 09381-06050
          5. 09381-06090
          6. 09381-06120
          7. 09381-06140
      2. Using snap ring expander, remove the hole snap ring from the center support assembly.
      3. Remove the brake piston return spring sub-assembly (No. 2 brake) from the No. 2 brake piston.
      4. While holding the automatic transmission case sub-assembly, apply compressed air (400 kPa (4.1 kgf/cm2 , 58 psi)) to the oil hole to the No. 2 brake piston to lift it from the center support assembly.

        HINT:

        While evenly and lightly pressing on the No. 2 brake piston using your hand, blow in air a little at a time to remove the No. 2 brake piston smoothly.

      5. Using 2 needle-nose pliers, remove the No. 2 brake piston from the center support assembly.
        NOTE:

        Be careful not to damage the No. 2 brake piston.

        HINT:

        Tape the tip of needle-nose pliers before use.

      6. Remove the O-ring from the No. 2 brake piston.
  47. INSPECT BRAKE PISTON RETURN SPRING SUB-ASSEMBLY (NO. 2 BRAKE)
    See step  13
  48. REMOVE CENTER SUPPORT ASSEMBLY WITH 1ST AND REVERSE BRAKE PISTON
    1. GTY1036633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      If the center support assembly with 1st and reverse brake piston cannot be lifted up and removed by hand:

      GTY1036385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Lightly tap the output shaft using a plastic-faced hammer and remove the center support assembly with 1st and reverse brake piston.

  49. REMOVE 1ST AND REVERSE BRAKE PISTON
    1. GTY1038758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 1st and Reverse Brake Piston - -
      *a Oil Hole - -
      1. While holding the center support assembly, apply compressed air (400 kPa (4.1 kgf/cm2 , 58 psi) to the oil hole to remove the 1st and reverse brake piston from the center support assembly.

        HINT:

        While evenly and lightly pressing on the 1st and reverse brake piston using your hand, blow in air a little at a time to remove the 1st and reverse brake piston.

      2. Remove the 2 O-rings from the 1st and reverse brake piston.
      3. Remove the O-ring from the center support assembly.
  50. REMOVE CENTER PLANETARY RING GEAR WITH CENTER PLANETARY RING GEAR FLANGE
    1. GTY1036388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  51. REMOVE CENTER PLANETARY RING GEAR FLANGE
    1. GTY1038418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Center Planetary Ring Gear Flange *2 Center Planetary Ring Gear
      1. Using a screwdriver, remove the snap ring from the center planetary ring gear.
        NOTE:

        Be careful not to damage the center planetary ring gear.

        HINT:

        Tape the screwdriver tip before use.

      2. Remove the center planetary ring gear flange from the center planetary ring gear.
  52. REMOVE REAR PLANETARY RING GEAR WITH REAR PLANETARY RING GEAR FLANGE
    1. GTY1038928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Planetary Ring Gear with Rear Planetary Ring Gear Flange *2 Rear Multiple Disc Clutch Assembly
      *3 Thrust Needle Roller Bearing *4 Thrust Bearing Race
      1. Remove the rear planetary gear assembly with planetary sun gear sub-assembly and center planetary gear assembly and rear multiple disc clutch assembly, thrust bearing race and thrust needle roller bearing from the automatic transmission case sub-assembly.
      2. Using SST, remove the rear planetary ring gear with rear planetary ring gear flange, rear multiple disc clutch assembly, 2 thrust needle roller bearings and 2 thrust bearing races from the rear planetary gear assembly with planetary sun gear sub-assembly and center planetary gear assembly.
        • SST: 09950-40011
          1. 09951-04010
          2. 09954-04020
          3. 09955-04041
          4. 09957-04010
          5. 09952-04010
          6. 09953-04020
        • SST: 09950-60011
          1. 09951-00250
  53. REMOVE REAR PLANETARY RING GEAR FLANGE
    1. GTY1038900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Planetary Ring Gear Flange *2 Rear Planetary Ring Gear
      1. Using a screwdriver, remove the snap ring from the rear planetary ring gear.
        NOTE:

        Be careful not to damage the rear planetary ring gear.

        HINT:

        Tape the screwdriver tip before use.

      2. Remove the rear planetary ring gear flange from the rear planetary ring gear.
  54. REMOVE CENTER PLANETARY GEAR ASSEMBLY
    1. GTY1036370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  55. INSPECT CENTER PLANETARY GEAR ASSEMBLY
    See step  16
  56. REMOVE PLANETARY SUN GEAR SUB-ASSEMBLY
    1. GTY1036314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. INSPECT PLANETARY SUN GEAR SUB-ASSEMBLY
    See step  17
  58. INSPECT REAR PLANETARY GEAR ASSEMBLY
    See step  18
  59. REMOVE NO. 4 CLUTCH DISC
    1. GTY1038510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 4 Clutch Plate *2 No. 4 Clutch Disc
      *3 Clutch Flange - -
      1. Using a screwdriver, remove the snap ring from the output shaft assembly.
        NOTE:

        Be careful not to damage the output shaft assembly.

        HINT:

        Tape the screwdriver tip before use.

      2. Remove the 5 No. 4 clutch plates, 5 No. 4 clutch discs and clutch flange from the output shaft assembly.
  60. INSPECT NO. 4 CLUTCH DISC
    See step  19
  61. REMOVE C-4 CLUTCH PISTON
    1. GTY1039070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 C-4 Clutch Balancer *2 Forward Clutch Return Spring Sub-assembly (C-4 clutch)
      *3 C-4 Clutch Piston - -
      *a Oil Hole - -
      1. Set SST on the C-4 clutch balancer and compress the forward clutch return spring sub-assembly (C-4 clutch) using a press.
        • SST: 09387-00020
      2. Using SST, remove the snap ring from the output shaft assembly.
        • SST: 09350-30020
          1. 09350-07070
      3. Remove the C-4 clutch balancer and forward clutch return spring sub-assembly (C-4 clutch) from the output shaft assembly.
      4. Remove the 2 O-rings from the C-4 clutch balancer.
      5. While holding the output shaft assembly, apply compressed air (400 kPa (4.1 kgf/cm2 , 58 psi)) to the oil hole to remove the C-4 clutch piston from the output shaft assembly.
      6. Remove the O-ring from the C-4 clutch piston.
      7. Remove the O-ring from the output shaft assembly.
      8. Remove the 3 clutch drum oil seal rings from the output shaft assembly.
  62. INSPECT FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY (C-4 CLUTCH)
    See step  20
  63. REMOVE BRAKE PLATE STOPPER SPRING
    1. GTY1038262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a End of brake plate stopper spring - -
      Pull lightly on the end Remove in the direction of the arrow
      1. Remove the brake plate stopper spring.
        1. Pull lightly on the end of the brake plate stopper spring.
        2. Remove the brake plate stopper spring from the automatic transmission case sub-assembly in the direction indicated by the arrow.
  64. REMOVE TRANSMISSION CASE OIL SEAL
    1. GTY1038575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transmission Case Oil Seal - -
      1. Using SST, remove the transmission case oil seal from the automatic transmission case sub-assembly.
        • SST: 09308-36010
        NOTE:

        When removing the transmission case oil seal, make sure not to damage the automatic transmission case sub-assembly.

  65. REMOVE BALL BEARING
    1. GTY1038300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold - -
      Turn - -
      1. for Inside:

        1. Using SST, remove the ball bearing from the automatic transmission case sub-assembly.

        • SST: 09950-40011
          1. 09951-04020
          2. 09952-04010
          3. 09953-04030
          4. 09955-04031
          5. 09957-04010
          6. 09954-04010
        • SST: 09950-60011
          1. 09951-00650
      2. for Outside:

        1. Using SST, remove the snap ring from the automatic transmission case sub-assembly.

        • SST: 09350-30020
          1. 09350-07060

        2. Using SST, remove the ball bearing from the automatic transmission case sub-assembly.

        • SST: 09612-65014
          1. 09612-01060
  66. REMOVE AUTOMATIC TRANSMISSION CASE PLUG

    HINT:

    If automatic transmission fluid leaks from an automatic transmission case plug or the plug is corroded, replace it.

    1. GTY1038674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      for T55 "TORX" for 12 mm head
      for 24 mm head - -
      1. for T55 "TORX":

        1. Using a T55 "TORX" socket wrench, remove the 2 automatic transmission case plugs and 2 O-rings from the automatic transmission case sub-assembly.

      2. for 12 mm head:

        1. Remove the 13 automatic transmission case plugs and 13 O-rings from the automatic transmission case sub-assembly.

      3. for 24 mm head:

        1. Remove the 2 automatic transmission case plugs and 2 O-rings from the automatic transmission case sub-assembly.

  67. INSPECT AUTOMATIC TRANSMISSION CASE SUB-ASSEMBLY
    See step  23
scientia non olet · About LEMON Manuals
