Removal [12/2021 - ]: Procedure

  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  2. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2)

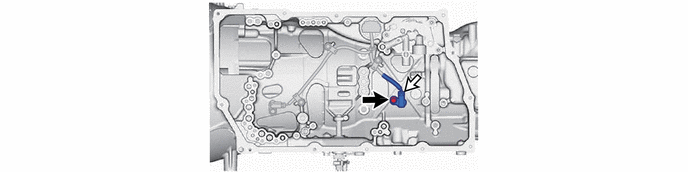

    1. GTY1036170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Connector
  3. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)

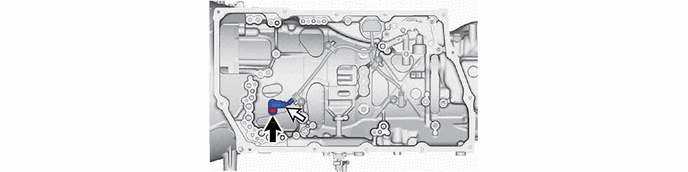

    1. GTY1036073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Bolt Connector
