Removal [12/2021 - ]: Procedure

  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  2. REMOVE TRANSMISSION REVOLUTION SENSOR (SP2)

    See step  2

  3. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)

    See step  3

  4. REMOVE TRANSMISSION WIRE

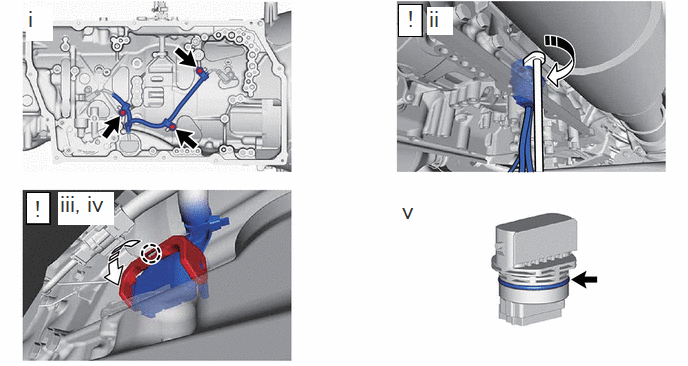

    1. GTY1037308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Turn Pull Down the Lever
      1. Remove the 3 bolts and 3 transmission wire clamps.
      2. Using a 10 mm union nut wrench, remove the bolt as shown in the illustration.
      3. Disconnect the transmission wire connector.

        HINT:

        Disengage the claw, pull down the lever, and then disconnect the transmission wire connector.

      4. Pull out the transmission wire from the automatic transmission assembly.
      5. Remove the O-ring from the transmission wire.
