Removal [12/2021 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
    Refer to PROCEDURE - Step 1
  3. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  4. DRAIN COOLANT (for Intercooler)

    Refer to PROCEDURE - Step 2

  5. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE ASSEMBLY RH

    Refer to PROCEDURE - Step 6

  6. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  7. DISCONNECT WATER BY-PASS HOSE

    See step  9

  8. DISCONNECT WATER BY-PASS HOSE ASSEMBLY

    See step  10

  9. DISCONNECT NO. 2 WATER BY-PASS HOSE

    See step  11

  10. REMOVE RADIATOR RESERVE TANK ASSEMBLY

    See step  12

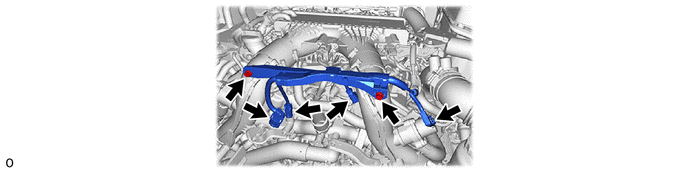

  11. DISCONNECT ENGINE WIRE
    1. GTY1042214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE NO. 1 RADIATOR HOSE

    See step  13

  13. DISCONNECT NO. 2 RADIATOR HOSE

    See step  15

  14. REMOVE COOLING FAN WIRE
    See step  19
  15. REMOVE NO. 1 AIR TUBE ASSEMBLY

    Refer to PROCEDURE - Step 13

  16. REMOVE NO. 2 AIR TUBE ASSEMBLY

    Refer to PROCEDURE - Step 14

  17. REMOVE NO. 1 AIR HOSE

    Refer to PROCEDURE - Step 18

  18. REMOVE NO. 3 AIR HOSE

    Refer to PROCEDURE - Step 4

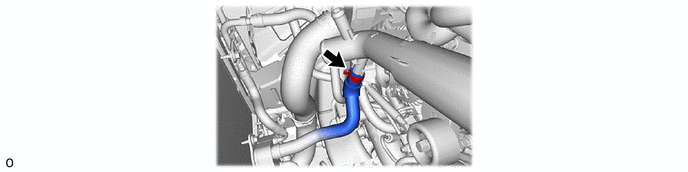

  19. DISCONNECT NO. 4 WATER BY-PASS HOSE
    1. GTY1042211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

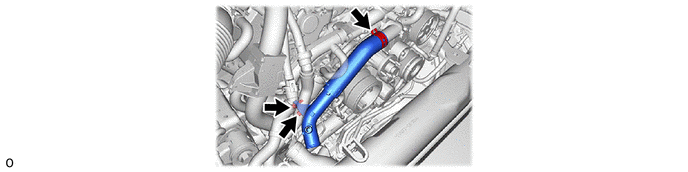

  20. REMOVE WATER INLET PIPE WITH WATER BY-PASS HOSE
    1. GTY1074421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

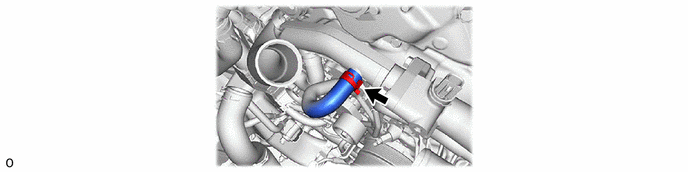

  21. DISCONNECT WATER BY-PASS HOSE
    1. GTY1042207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

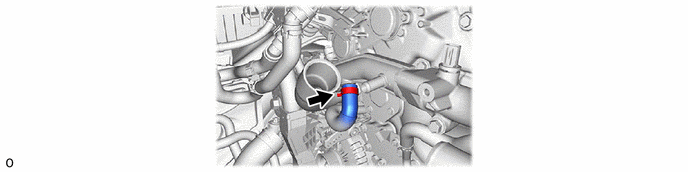

  22. DISCONNECT NO. 5 WATER BY-PASS HOSE
    1. GTY1042205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

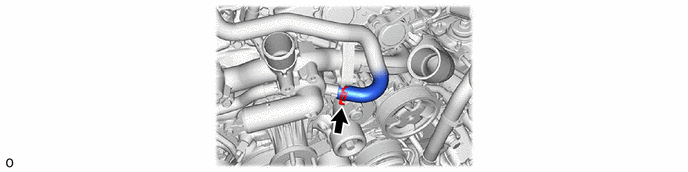

  23. DISCONNECT NO. 14 WATER BY-PASS HOSE
    1. GTY1074406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  24. REMOVE WATER OUTLET PIPE WITH WATER BY-PASS JOINT
    1. GTY1042172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

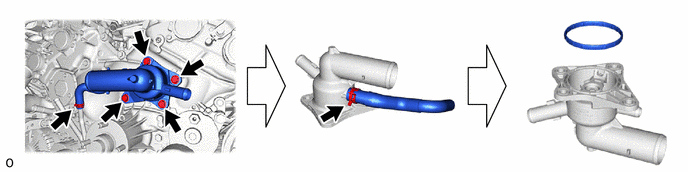

  25. REMOVE WATER INLET SUB-ASSEMBLY WITH THERMOSTAT
    1. GTY1042169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
