Removal [12/2021 - ]: Procedure

  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    Refer to PROCEDURE - Step 6
  2. SEPARATE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

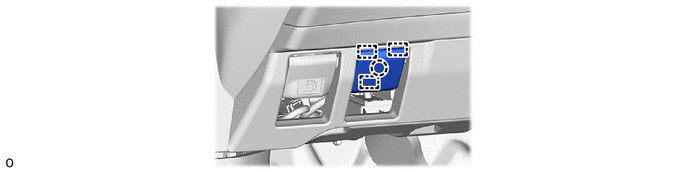

    1. GTY1056236Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
    1. GTY1056415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 3

  5. REMOVE HOOD LOCK RELEASE LEVER PROTECTOR

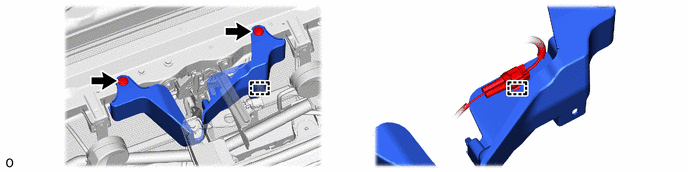

    1. GTY1056414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE HOOD LOCK ASSEMBLY

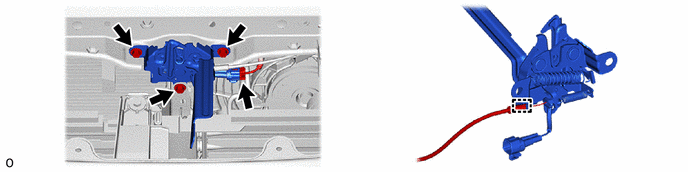

    1. GTY1056910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FRONT FENDER REINFORCEMENT SUB-ASSEMBLY TOP LH
    Refer to PROCEDURE - Step 2
  8. REMOVE ENGINE SIDE COVER LH

    See step  1

  9. REMOVE HOOD LOCK CONTROL CABLE COVER

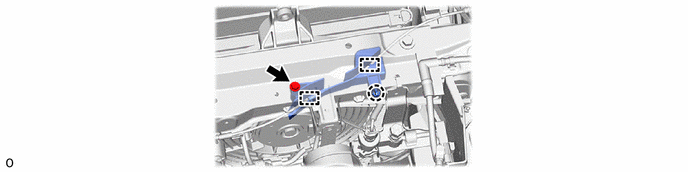

    1. GTY1056250Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. SEPARATE WASHER INLET SUB-ASSEMBLY

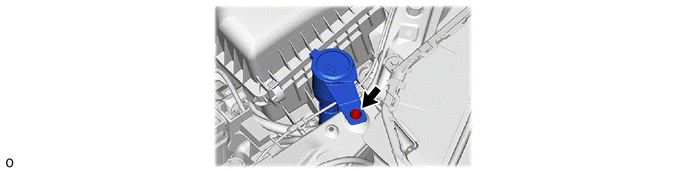

    1. GTY1056909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE HOOD LOCK CONTROL CABLE ASSEMBLY

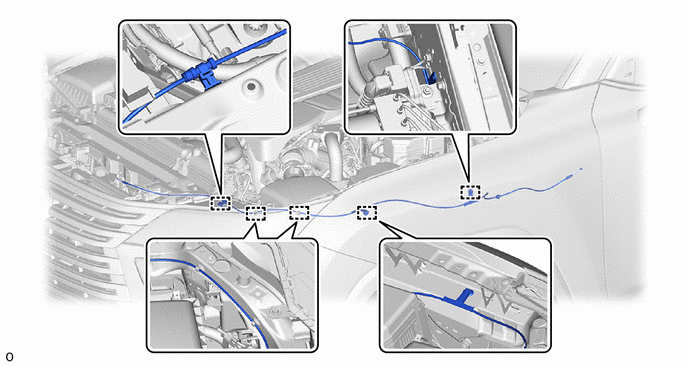

    1. GTY1056246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
