Removal [12/2021 - ]: Procedure

Refer to REMOVAL [12/2021 - ]

Refer to REMOVAL [12/2021 - ]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Place Hand Here

Turn Up

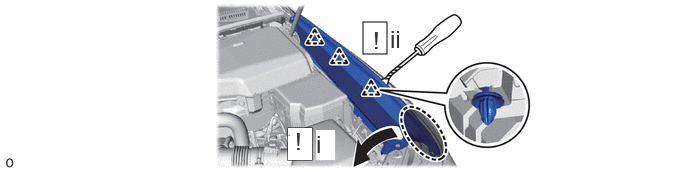

1. Place your hand at the position shown in the illustration and turn up the front fender reinforcement sub-assembly top LH.
2. Using clip remover, detach the clip and remove the front fender reinforcement sub-assembly top LH.

   HINT:

   Tape the clip remover tip before use.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Connector		Bolt
	Screw	-	-

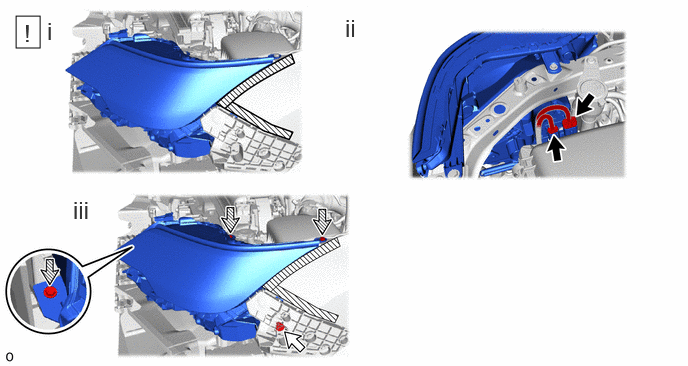

1. Apply protective tape around the headlight assembly LH.
2. Disconnect the 2 connectors.
3. Remove the bolt and 3 screws.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hand Here		Remove in this Direction (1)
	Remove in this Direction (2)	-	-

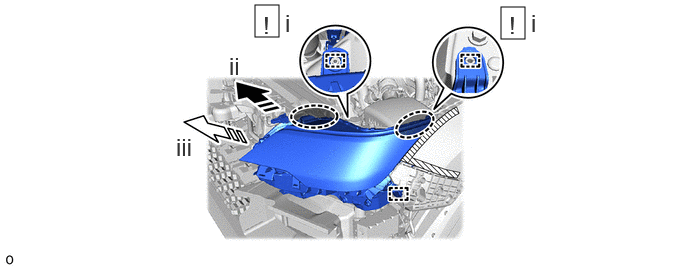

1. Place your hands at the positions shown in the illustration and remove the bracket from the guide.
   NOTE:

   Do not break the bracket.

2. Slide the headlight assembly LH in the removal direction (1) and detach the guide.
3. Remove the headlight assembly LH in the removal direction (2) as shown in the illustration.
