Removal [12/2021 - ]: Procedure

REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

Refer to PROCEDURE - Step 1
REMOVE BOX BOTTOM MAT
Refer to PROCEDURE - Step 3
REMOVE UPPER CONSOLE PANEL ASSEMBLY

Refer to PROCEDURE - Step 4
REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 5
REMOVE STEREO PLAYER FINISH PANEL

Refer to PROCEDURE - Step 33

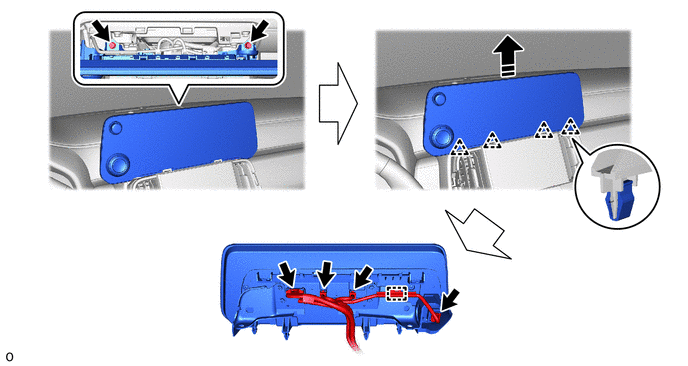

REMOVE MULTI-DISPLAY ASSEMBLY WITH SWITCH

GTY1068956

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

-

-

REMOVE ENGINE SWITCH

Refer to PROCEDURE - Step 2
