Installation [01/2017 - ]: Procedure

1. Attach the 4 hose clips to the water pipe sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Connect water pipe sub-assembly with its marking aligned as shown in the illustration and install the 2 hose clips within the range shown in the illustration.
   NOTE:

   • Do not apply excessive force to the water pipe sub-assembly.
   • Install the clips 2 to 5 mm (0.0787 to 0.1969 in.) away from the end of the hose.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	View A	*b	Marking (Green)
   *c	Hose Clip Installation Angle (165 to 195°)	*d	View B
   *e	Marking (White)	*f	Hose Clip Installation Angle (165 to 195°)

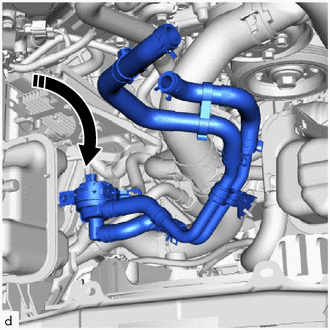

3. Insert the heater accessory assembly (with water pipe sub-assembly) into the vehicle from engine room as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Insert in this Direction

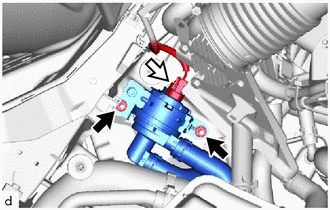

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Nut
   	Connector

   Install the heater accessory assembly (with water pipe sub-assembly) with the 2 nuts.

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

5. Connect the connector.
6. Install the nut.

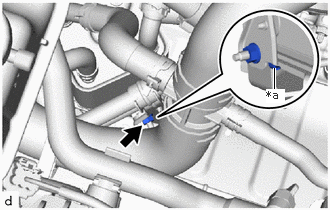

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Stopper

   Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

   NOTE:

   Install with a stopper on the seating surface of the transmission oil cooler bracket.

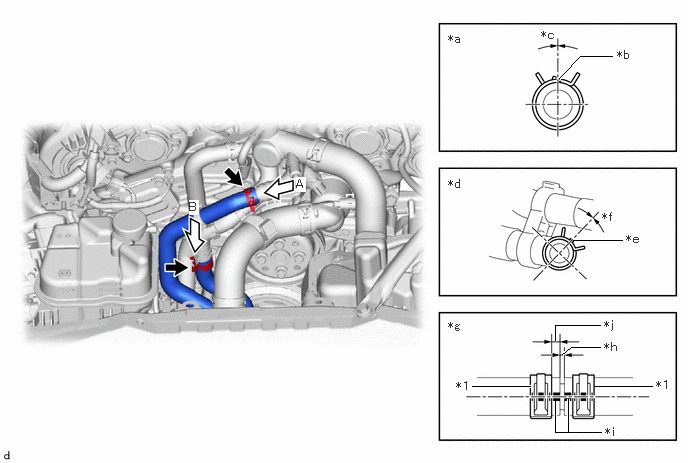

7. Connect water pipe sub-assembly with its marking aligned as shown in the illustration and install the 2 hose clips within the range shown in the illustration.
   NOTE:

   • Do not apply excessive force to the water pipe sub-assembly.
   • Insert the hose until it bulges but without it sticking out.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Hose Clip	-	-
   *a	View A	*b	Marking (Blue)
   *c	Hose Clip Installation Angle (-15 to 15°)	*d	View B
   *e	Marking (Yellow)	*f	Hose Clip Installation Angle (-15 to 15°)
   *g	Hose Connector Detail	*h	Bulge
   *i	Marking	*j	Hose Clip Installation Range (3 to 7 mm (0.1181 to 0.2756 in.))

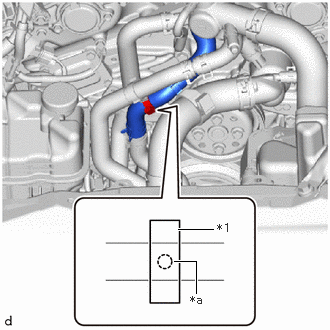

8. Attach the clamp as shown in the illustration.
   NOTE:

   Make sure the marking is hidden in the clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Clamp
   *a	Marking

1. Install the oil pump motor controller assembly with the 2 nuts.

   Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

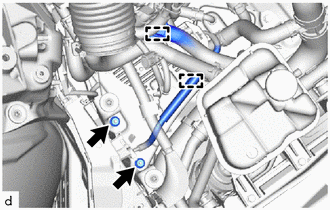

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Attach the clamp.
3. Attach the clamp.

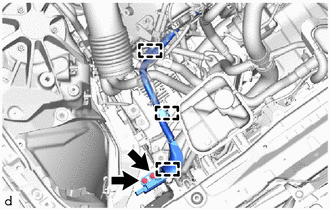

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Connect the ground wire with the 2 bolts.

   Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

Refer to PROCEDURE - Step 3 [01/2017 - 05/2023] , or refer to PROCEDURE - Step 3 [05/2023 - ]

Refer to PROCEDURE - Step 5

1. Install the radiator support to crossmember brace sub-assembly RH with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 49 N.m (500 kgf/cm, 36 ft.lbf)

Refer to PROCEDURE - Step 5

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 114 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 114 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 114 [05/2023 - ]

Refer to PROCEDURE - Step 115 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 115 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 115 [05/2023 - ]

1. Attach the claw and guide to install the lower radiator air deflector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the 9 clips.

1. Attach the claw and guide to install the engine room side cover LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the 3 clips.

1. Attach the claw and guide to install the radiator support to frame seal RH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the 6 clips.

Refer to PROCEDURE - Step 118 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 118 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 118 [05/2023 - ]
