Installation [01/2017 - 05/2023]: Procedure

INSTALL OIL PUMP MOTOR CONTROLLER

NOTE:

If the oil pump motor controller has been struck or dropped, replace it.

Install the oil pump motor controller bracket to the oil pump motor controller with the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

Install the oil pump motor controller bracket to the oil pump motor controller with the 2 bolts.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

Install the clamp to the oil pump motor controller bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the oil pump motor controller with bracket with the 2 nuts.
Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

CONNECT CONNECTOR

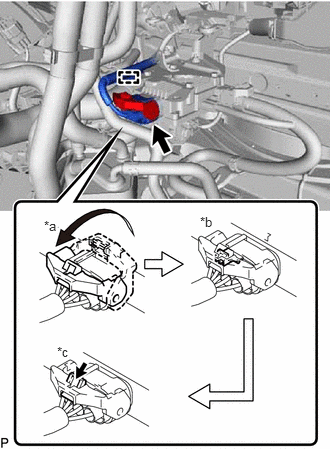

Connect the connector and securely lock the lock lever as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Raise the lock lever
*b	Securely lock the claw
*c	Push in the lock

NOTE:

Be sure to securely lock the claw of the connector.
Push the connector all the way in and lock the lock lever.

HINT:

When the connector is pushed all the way in, the lock lever will move slightly towards the lock position.

Push the lock into the lock lever to securely lock the lock lever of the connector.
NOTE:
Securely lock the lock lever of the connector.

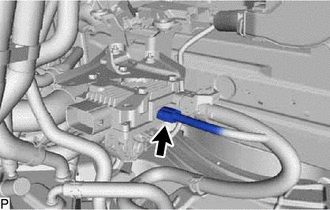

Connect the connector to the oil pump motor controller.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

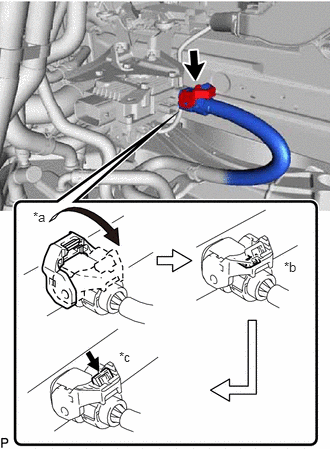

Connect the connector and securely lock the lock lever as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Raise the lock lever
*b	Securely lock the claw
*c	Push in the lock

NOTE:

Be sure to securely lock the claw of the connector.
Push the connector all the way in and lock the lock lever.

HINT:

When the connector is pushed all the way in, the lock lever will move slightly towards the lock position.

Push the lock into the lock lever to securely lock the lock lever of the connector.
NOTE:
Securely lock the lock lever of the connector.

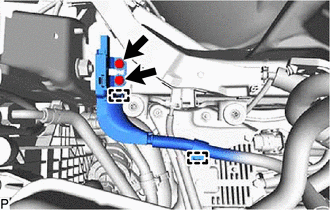

Attach the wire harness clamp to the oil pump motor controller bracket.

Connect the No. 3 inverter cooling hose to the clamp.

Attach the 2 clamps and connect the ground wire.

Install the 2 bolts.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

INSTALL AIR CLEANER ASSEMBLY

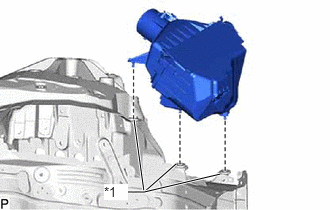

Install the air cleaner assembly to the 3 air cleaner supports.

*1	Air Cleaner Support

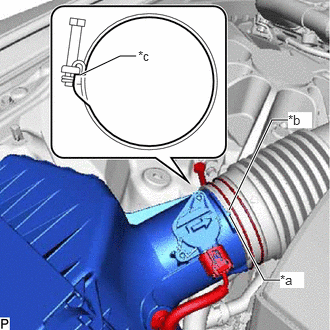

Align the protrusion of the air cleaner assembly with the cutout of the air cleaner hose assembly, and connect the air cleaner hose assembly to the air cleaner assembly.

*a	Protrusion
*b	Cutout
*c	Stopper

Tighten while pressing the hose clamp against the stopper on the air cleaner hose assembly.
Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)
Connect the intake mass air flow meter connector.

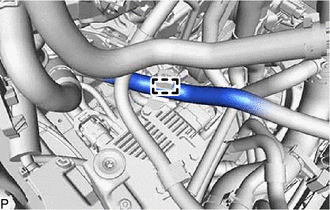

Attach the wire harness clamp.

INSTALL NO. 1 AIR CLEANER INLET
Refer to PROCEDURE - Step 5
INSTALL RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY RH
Refer to PROCEDURE - Step 7 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 7 [06/2019 - 05/2023]
INSTALL RADIATOR LOWER AIR DEFLECTOR
Refer to PROCEDURE - Step 28
INSTALL RADIATOR SUPPORT TO FRAME SEAL RH
Refer to PROCEDURE - Step 29
CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
Refer to INSTALLATION [01/2017 - 05/2023]
