Installation [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL REAR NO. 1 SEAT INNER BELT ASSEMBLY LH

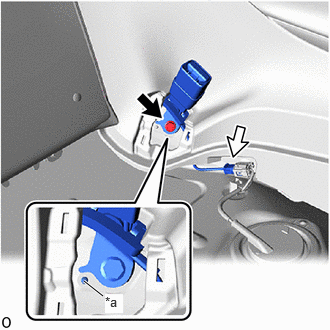

Pass the wire harness and connector of the rear No. 1 seat inner belt assembly LH through the hole on the quarter trim panel assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protruding Part
	Bolt
	Connector

NOTE:

Take care not to damage the wire harness and connector.

Install the rear No. 1 seat inner belt assembly LH with the bolt.
Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

NOTE:
Do not allow the anchor part of the rear No. 1 seat inner belt assembly LH to overlap the protruding part.
Connect the connector.

INSTALL QUARTER INSIDE TRIM BOARD LH
Refer to PROCEDURE - Step 23 [03/2017 - 05/2023] , or refer to PROCEDURE - Step 21 [05/2023 - ]
INSTALL REAR SEAT CUSHION LOCK HOOK
Refer to PROCEDURE - Step 6
INSTALL REAR SEAT CUSHION ASSEMBLY
Refer to PROCEDURE - Step 7
INSPECT SEAT BELT WARNING SYSTEM
Refer to ON-VEHICLE INSPECTION [03/2017 - 04/2020] , or refer to ON-VEHICLE INSPECTION [04/2020 - 05/2023] , or refer to ON-VEHICLE INSPECTION [05/2023 - ]
