Installation [03/2017 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2024 Lexus LC 500, 2023 Lexus LC 500, 2022 Lexus LC 500, 2021 Lexus LC 500, and 2020 Lexus LC 500. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL REAR SEATBACK ASSEMBLY LH
    1. Place the rear seatback assembly LH in the vehicle.
      NOTE:

      Do not damage the rear seatback assembly LH, body and body interior.

    2. Temporarily install the rear seatback assembly LH to the stud bolt.

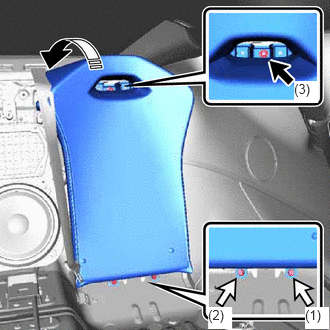

      Fig 1: Rear Seatback Assembly LH Bolts And Nut With Tightening Sequence
      GTY797682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Nut
      Bolt
      Install in this Direction
    3. Temporarily install the nut and 2 bolts.
    4. Tighten the nut and 2 bolts in the order shown in the illustration.

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

  2. INSTALL REAR SEATBACK ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side.

  3. INSTALL REAR SEATBACK COVER

    HINT:

    Use the same procedure for the other side.

    1. Attach the clips to install the rear seatback cover.

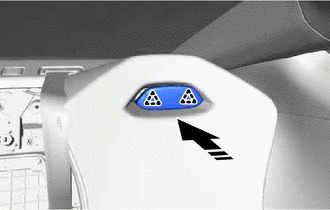

      GTY791991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  4. INSTALL REAR SEAT SIDE GARNISH

    Refer to PROCEDURE - Step 7

  5. INSTALL REAR SEAT CUSHION HOLDER BRACKET

    HINT:

    Use the same procedure for the other side.

    1. Install the rear seat cushion holder bracket with the bolt.
      GTY824572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)

  6. INSTALL REAR SEAT CUSHION LOCK HOOK

    HINT:

    Use the same procedure for the other side.

    1. Set a new rear seat cushion lock hook in place.
    2. Using 2 thin-bladed screwdrivers, push the sleeve to attach the claws.
      GTY797829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Sleeve
      *b Protective Tape
      NOTE:

      Do not apply excessive force which may break the sleeve.

      HINT:

      Tape the thin-bladed screwdriver tip before use.

    3. Check the installation condition.

      OK

      The sleeve is installed properly.

      GTY782295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Body *b Vehicle
      *c Sleeve *d Correct
      *e Incorrect - -
  7. INSTALL REAR SEAT CUSHION ASSEMBLY
    1. Place the rear seat cushion assembly in the vehicle.
      NOTE:

      Do not damage the rear seat cushion assembly, body and body interior.

    2. Attach the hooks on the rear of the rear seat cushion assembly to the 2 child restraint seat anchor brackets.

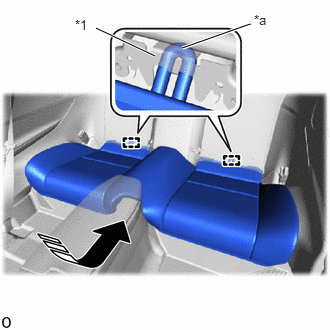

      GTY813971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Child Restraint Seat Anchor Bracket
      *a Hook on Rear of Rear Seat Cushion
      Install in this Direction
    3. Push in the installation direction shown in the illustration and attach the 2 hooks on the front of the rear seat cushion assembly to the 2 rear seat cushion lock hooks to install the rear seat cushion assembly.

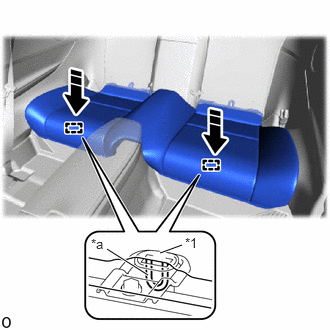

      GTY788074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Seat Cushion Lock Hook
      *a Hook on Front of Rear Seat Cushion
      Install in this Direction
      NOTE:
      • Attach the rear seat cushion front side hooks one at a time.
      • Check that the rear seat cushion lock hooks and rear seat cushion assembly are securely fastened.
