Disassembly [09/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE BREATHER PLUG HOSE
    1. Using a screwdriver with its tip wrapped with protective tape, remove the breather plug hose from the breather plug.

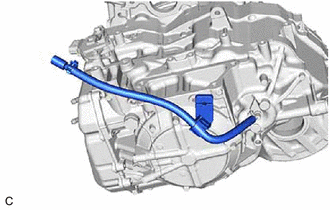

      GTY632289Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the breather plug.

    2. Using a screwdriver with its tip wrapped with protective tape, remove the No. 1 breather plug (ATM) from the breather plug hose.
      GTY638211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Breather Plug (ATM)
      *2 Breather Hose Clamp
      *3 Transmission Breather Clamp
      *4 Breather Plug Hose
      NOTE:

      Be careful not to damage the No. 1 breather plug (ATM).

    3. Remove the breather hose clamp and transmission breather clamp from the breather plug hose.
  2. REMOVE TRANSMISSION CONTROL SHAFT LEVER
    1. Remove the nut and transmission control shaft lever from the manual valve lever sub-assembly.

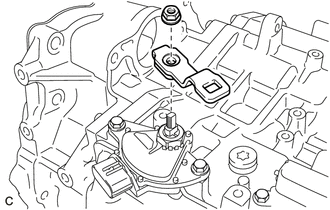

      GTY652818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

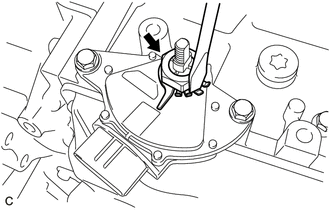

    1. Using a screwdriver, bend back the tabs of the lock plate and remove the lock nut and lock plate from the park/neutral position switch assembly.
      GTY407659Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

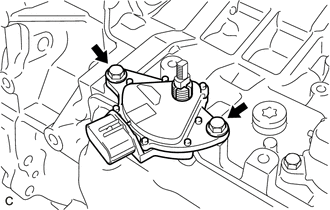

    2. Remove the 2 bolts and park/neutral position switch assembly from the automatic transaxle case sub-assembly.
      GTY407658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE DRAIN PLUG
    1. Using a T40 "TORX" socket wrench, remove the drain plug from the overflow plug.
      GTY681386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the drain plug.
  5. REMOVE OVERFLOW PLUG
    1. Using a 17 mm straight hexagon wrench, remove the overflow plug from the transaxle housing.
      GTY652854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the overflow plug.
      GTY681393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE OUTLET NO. 1 OIL COOLER TUBE SUB-ASSEMBLY
    1. Remove the 2 bolts and outlet No. 1 oil cooler tube sub-assembly from the transaxle housing.
      GTY407660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the outlet No. 1 oil cooler tube sub-assembly.
      GTY652812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE INLET NO. 1 OIL COOLER TUBE SUB-ASSEMBLY
    1. Remove the 2 bolts and inlet No. 1 oil cooler tube sub-assembly from the transaxle housing.
      GTY407662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the inlet No. 1 oil cooler tube sub-assembly.
      GTY652824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

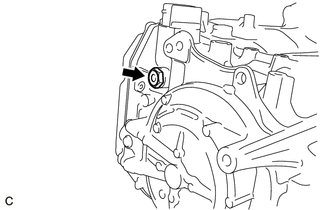

  8. REMOVE REFILL PLUG
    1. Remove the refill plug from the automatic transaxle case sub-assembly.
      GTY652852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the gasket from the refill plug.

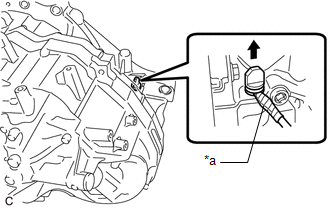

  9. REMOVE TRANSMISSION CASE PLUG ASSEMBLY
    1. Using a screwdriver with its tip wrapped with protective tape, remove the transmission case plug assembly from the transaxle housing.
      GTY644657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the transaxle housing.

  10. REMOVE TRANSAXLE SIDE COVER SUB-ASSEMBLY
    1. Using a T40 "TORX" socket wrench, remove the 13 bolts.
      GTY681392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

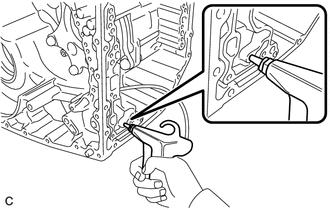

    2. Insert the blade of an oil pan seal cutter between the transaxle side cover sub-assembly and automatic transaxle case sub-assembly. Cut through the applied seal packing and remove the transaxle side cover sub-assembly.
      GTY407694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the sealing surface of the automatic transaxle case sub-assembly.

  11. REMOVE TRANSMISSION OIL CLEANER MAGNET
    1. Remove the 2 transmission oil cleaner magnets from the transaxle side cover sub-assembly.
      GTY669491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transmission Oil Cleaner Magnet
  12. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to PROCEDURE - Step 12 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 12 [08/2016 - 08/2019] , or refer to PROCEDURE - Step 12 [08/2019 - ]

  13. REMOVE TRANSMISSION WIRE

    Refer to PROCEDURE - Step 2

  14. REMOVE TRANSMISSION REVOLUTION SENSOR (NC3)

    Refer to PROCEDURE - Step 2

  15. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)

    Refer to PROCEDURE - Step 3

  16. INSPECT INPUT SHAFT END PLAY

    See step  2, or see step  2, or see step  2

  17. REMOVE TRANSAXLE HOUSING

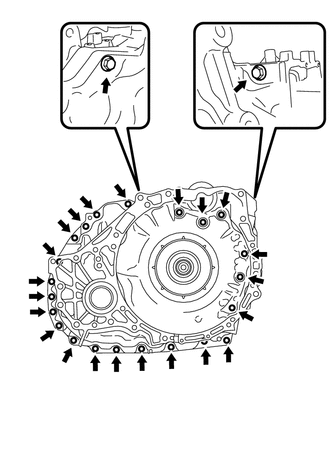

    1. Remove the 24 bolts.
      GTY624139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

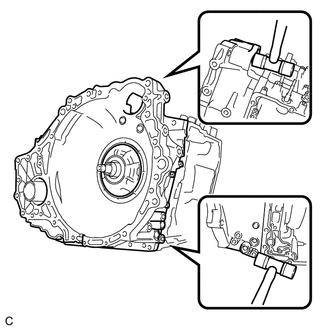

    2. Using a plastic hammer, tap on the circumference of the transaxle housing to remove it from the automatic transaxle case sub-assembly.
      GTY408707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. REMOVE DIFFERENTIAL GEAR LUBE APPLY TUBE
    1. Remove the bolt and clamp from the transaxle housing.

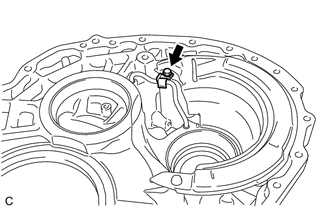

      GTY652834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

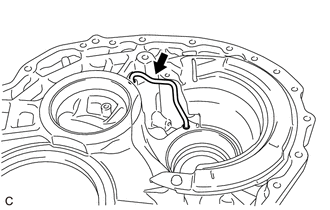

    2. Remove the differential gear lube apply tube from the transaxle housing.
      GTY652842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE TRANSAXLE HOUSING OIL SEPARATOR

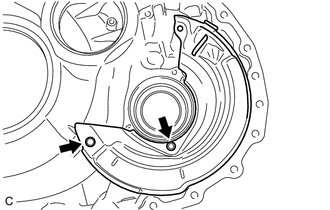

    1. Remove the 2 bolts and transaxle housing oil separator from the transaxle housing.
      GTY652848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 transmission oil cleaner magnets from the transaxle housing oil separator.
      GTY681296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSPECT TRANSMISSION OIL CLEANER MAGNET

    See step  1, or see step  1, or see step  1

  21. REMOVE DIFFERENTIAL CASE TAPERED ROLLER BEARING (FRONT SIDE OUTER RACE)
    1. Using SST, remove the differential case tapered roller bearing (front side outer race) from the transaxle housing.

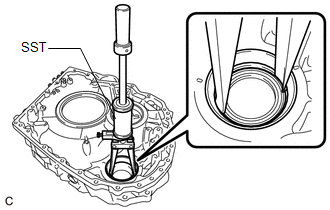

      GTY620699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
  22. REMOVE TRANSAXLE CASE OIL SEAL

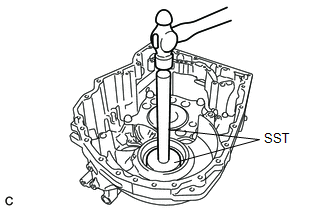

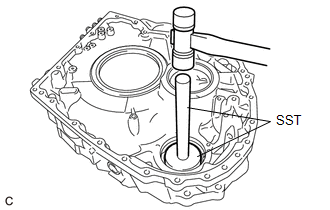

    1. Using SST and a hammer, remove the transaxle case oil seal from the transaxle housing.
      GTY612178Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00550
      • SST: 09950-70010
        1. 09951-07200
  23. REMOVE COUNTER DRIVEN GEAR TAPERED ROLLER BEARING (FRONT SIDE OUTER RACE)

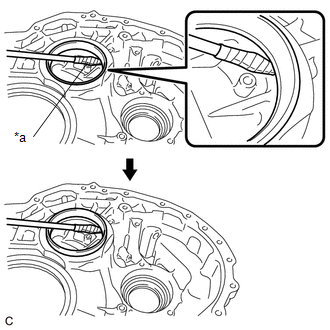

    1. Using a screwdriver with its tip wrapped with protective tape, pry up the counter driven gear tapered roller bearing (front side outer race).
      GTY616680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the transaxle housing.

    2. Using SST, remove the counter driven gear tapered roller bearing (front side outer race) from the transaxle housing.
      GTY640665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-36010
  24. INSPECT B-1 BRAKE PISTON ROD STROKE

    See step  10, or see step  10, or see step  10

  25. REMOVE FRONT OIL PUMP ASSEMBLY
    1. Remove the 3 transaxle case gaskets from the front oil pump assembly.

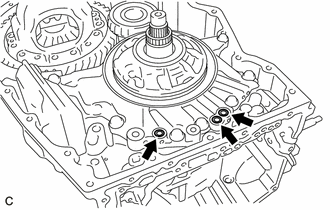

      GTY652982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

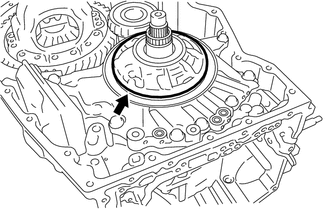

    2. Remove the front oil pump body O-ring from the front oil pump assembly.
      GTY624135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

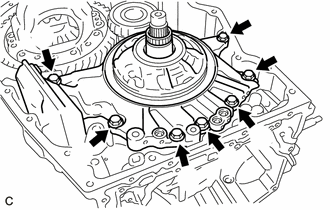

    3. Remove the 7 bolts and front oil pump assembly from the automatic transaxle case sub-assembly.
      GTY407558Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the planetary carrier thrust washer from the front oil pump assembly.

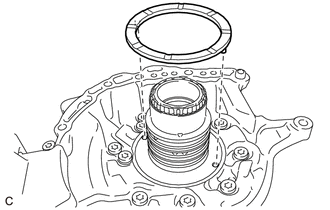

      GTY681421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

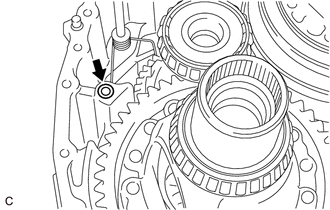

  26. REMOVE NO. 1 GOVERNOR APPLY GASKET
    1. Remove the No. 1 governor apply gasket from the automatic transaxle case sub-assembly.
      GTY652980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE MANUAL DETENT SPRING SUB-ASSEMBLY

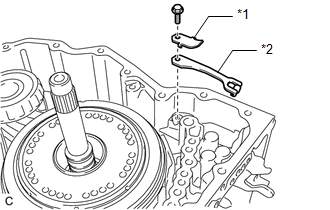

    1. Remove the bolt, manual detent spring cover and manual detent spring sub-assembly from the automatic transaxle case sub-assembly.
      GTY645466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Manual Detent Spring Cover
      *2 Manual Detent Spring Sub-assembly
  28. REMOVE PARKING LOCK ROD SUB-ASSEMBLY

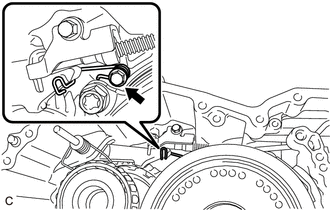

    1. Remove the bolt, spring guide sleeve and torsion spring from the automatic transaxle case sub-assembly.
      GTY652972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

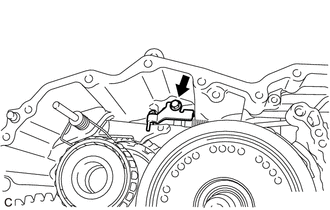

    2. Remove the bolt and parking lock pawl bracket from the automatic transaxle case sub-assembly.
      GTY681420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

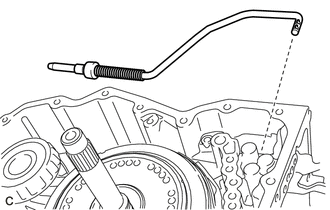

    3. Remove the parking lock rod sub-assembly from the manual valve lever sub-assembly.
      GTY652970Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Align the slot with the notches on the manual valve lever sub-assembly to remove the parking lock rod sub-assembly.

  29. REMOVE PARKING LOCK PAWL
    1. Remove the parking lock pawl shaft and torsion spring from the automatic transaxle case sub-assembly.

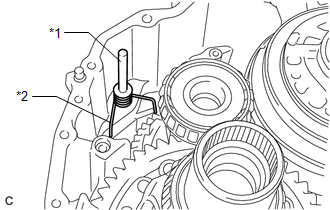

      GTY675029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Parking Lock Pawl Shaft
      *2 Torsion Spring
    2. Remove the parking lock pawl from the automatic transaxle case sub-assembly.

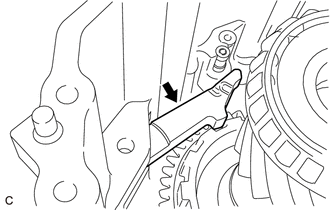

      GTY652968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  30. REMOVE PARKING LOCK PIN SUB-ASSEMBLY
    1. Remove the parking lock pin sub-assembly from the automatic transaxle case sub-assembly.
      GTY652969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. REMOVE MANUAL VALVE LEVER SUB-ASSEMBLY

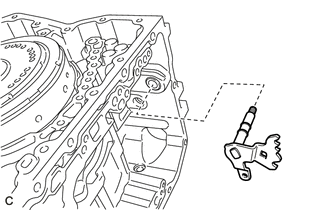

    1. Remove the manual valve lever sub-assembly from the automatic transaxle case sub-assembly.
      GTY681419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  32. REMOVE C-3 AND C-4 CLUTCH ASSEMBLY

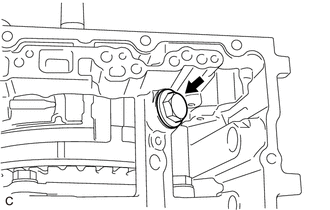

    1. Remove the bolt from the automatic transaxle case sub-assembly.
      GTY652977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

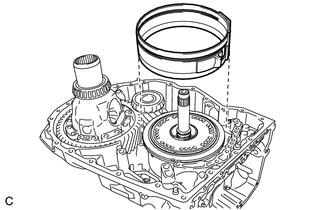

    2. Remove the B-1 brake band assembly from the C-3 and C-4 clutch drum.
      GTY652978Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

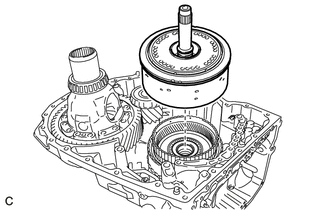

    3. Remove the C-3 and C-4 clutch assembly with front planetary gear assembly from the automatic transaxle case sub-assembly.
      GTY652975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the C-3 and C-4 clutch assembly from the front planetary gear assembly.
      GTY652976Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  33. REMOVE FRONT PLANETARY GEAR ASSEMBLY
    1. Remove the No. 2 planetary carrier thrust washer and No. 7 thrust bearing race from the front planetary gear assembly.
      GTY627823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Planetary Carrier Thrust Washer
      *2 No. 7 Thrust Bearing Race
    2. Remove the planetary sun gear from the front planetary gear assembly.
      GTY653008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

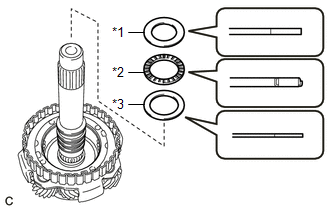

    3. Remove the No. 9 thrust bearing race, thrust needle roller bearing and No. 8 thrust bearing race from the front planetary gear assembly.
      GTY655113Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 9 Thrust Bearing Race
      *2 Thrust Needle Roller Bearing
      *3 No. 8 Thrust Bearing Race
    4. Remove the 2 rear input shaft oil seal rings from the front planetary gear assembly.
      GTY653007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 4 input shaft oil seal rings from the front planetary gear assembly.
      GTY681427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the needle roller bearing from the front planetary gear assembly.
      GTY624132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. INSPECT FRONT PLANETARY GEAR ASSEMBLY

    See step  7, or see step  7, or see step  7

  35. REMOVE FRONT PLANETARY RING GEAR

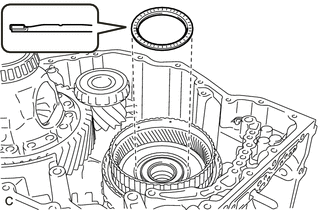

    1. Remove the thrust needle roller bearing from the front planetary ring gear flange.
      GTY653005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

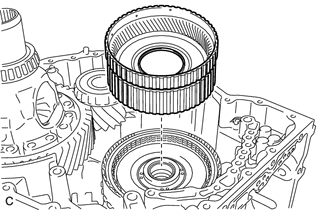

    2. Remove the front planetary ring gear with front planetary ring gear flange from the C-1 clutch assembly.
      GTY653014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the front planetary ring gear.
      GTY652484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the front planetary ring gear.

    4. Remove the front planetary ring gear flange from the front planetary ring gear.
      GTY653013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  36. REMOVE C-1 CLUTCH ASSEMBLY

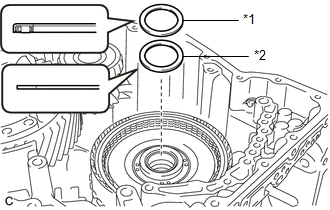

    1. Remove the thrust needle roller bearing and No. 6 thrust bearing race from the C-1 clutch assembly.
      GTY684455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Thrust Needle Roller Bearing
      *2 No. 6 Thrust Bearing Race

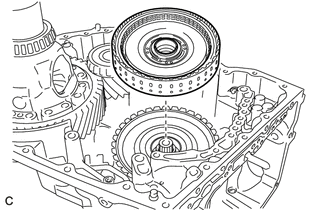

    2. Remove the C-1 clutch assembly from the rear planetary sun gear sub-assembly.
      GTY653010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  37. INSPECT CLEARANCE OF C-1 CLUTCH

    See step  15, or see step  15, or see step  15

  38. REMOVE FORWARD MULTIPLE DISC CLUTCH DISC

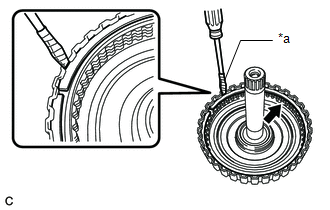

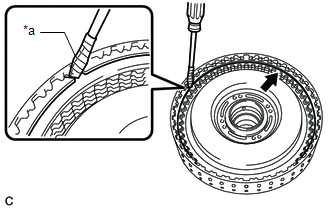

    1. Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the clutch drum sub-assembly.
      GTY672879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the clutch drum sub-assembly.

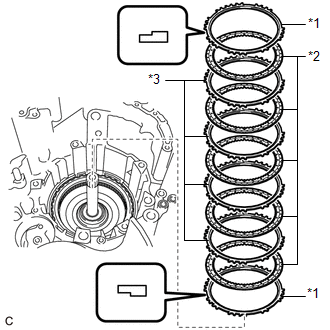

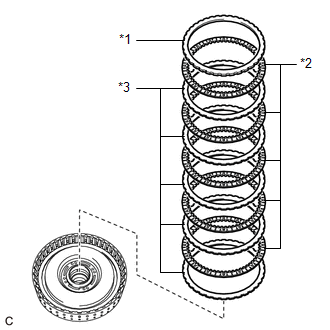

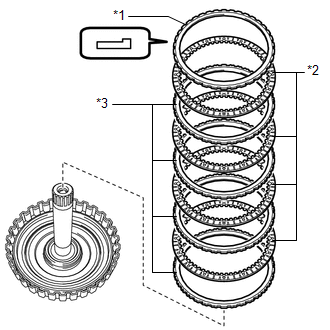

    2. Remove the forward clutch flange, 5 forward multiple disc clutch discs and 5 forward multiple disc clutch plates from the clutch drum sub-assembly.
      GTY635821Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Forward Clutch Flange
      *2 Forward Multiple Disc Clutch Disc
      *3 Forward Multiple Disc Clutch Plate
  39. INSPECT FORWARD MULTIPLE DISC CLUTCH DISC

    See step  3, or see step  3, or see step  3

  40. REMOVE NO. 1 CLUTCH BALANCER

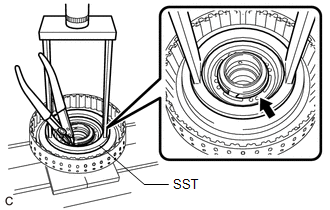

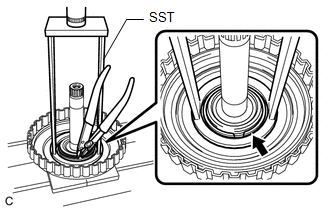

    1. Place SST on the No. 1 clutch balancer and compress the forward clutch return spring sub-assembly with a press.
      GTY630197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09387-00020
    2. Using a snap ring expander, remove the snap ring from the clutch drum sub-assembly.
      NOTE:

      Do not expand the snap ring excessively.

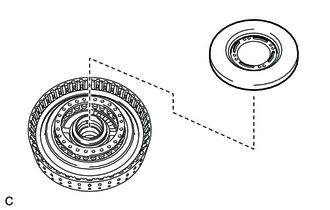

    3. Remove the No. 1 clutch balancer from the clutch drum sub-assembly.
      GTY681465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

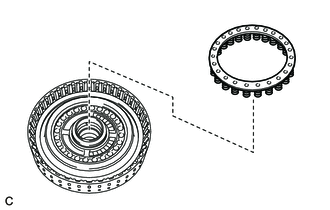

  41. REMOVE FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY
    GTY653183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the forward clutch return spring sub-assembly from the clutch drum sub-assembly.
  42. INSPECT FORWARD CLUTCH RETURN SPRING SUB-ASSEMBLY

    See step  14, or see step  14, or see step  14

  43. REMOVE FORWARD CLUTCH PISTON
    1. Cover the ATF hole shown in the illustration and apply compressed air (approximately 392 kPa (4.0 kgf/cm2 , 57 psi)) to the ATF hole.

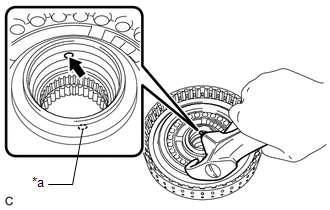

      GTY626616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a ATF Hole
    2. Remove the forward clutch piston from the clutch drum sub-assembly.

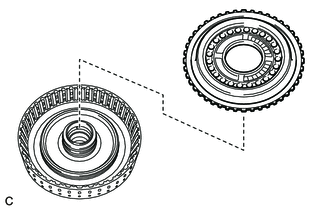

      GTY653189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the forward clutch piston.
      GTY653190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  44. REMOVE C-1 DRUM O-RING

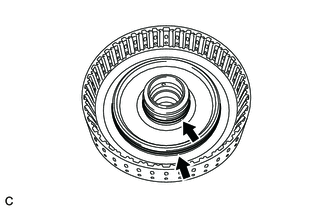

    1. Remove the 2 C-1 drum O-rings from the clutch drum sub-assembly.
      GTY653260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  45. REMOVE INPUT SUN GEAR DRUM

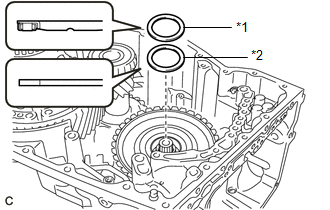

    1. Remove the thrust needle roller bearing and No. 5 thrust bearing race from the input sun gear drum.
      GTY619488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Thrust Needle Roller Bearing
      *2 No. 5 Thrust Bearing Race
    2. Remove the input sun gear drum from the rear planetary gear assembly.

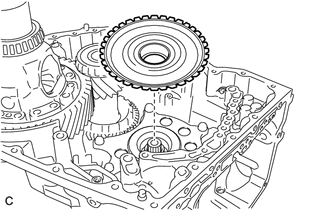

      GTY681425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  46. REMOVE PINION AND COUNTER DRIVEN GEAR SUB-ASSEMBLY

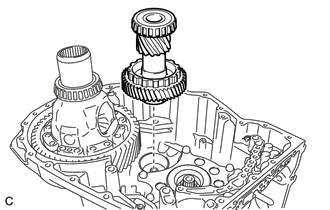

    1. Remove the pinion and counter driven gear sub-assembly from the automatic transaxle case sub-assembly.
      GTY652992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  47. REMOVE COUNTER DRIVEN GEAR TAPERED ROLLER BEARING (FRONT SIDE INNER RACE)
    1. Using SST and a press, remove the counter driven gear tapered roller bearing (front side inner race) from the pinion and counter driven gear sub-assembly.

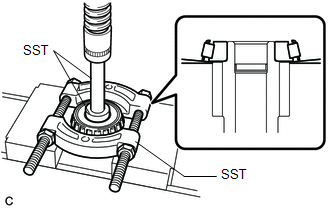

      GTY682892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-00020
      • SST: 09950-60010
        1. 09951-00400
      • SST: 09950-70010
        1. 09951-07100
  48. REMOVE COUNTER DRIVEN GEAR TAPERED ROLLER BEARING (REAR SIDE INNER RACE)

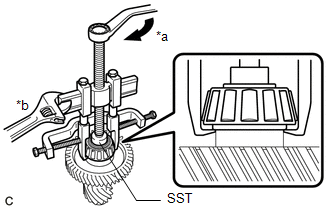

    1. Using SST, remove the counter driven gear tapered roller bearing (rear side inner race) from the pinion and counter driven gear sub-assembly.
      GTY664508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
      • SST: 09950-40011
        1. 09951-04010
        2. 09952-04010
        3. 09953-04030
        4. 09954-04010
        5. 09955-04061
        6. 09957-04010
        7. 09958-04011
      • SST: 09950-60010
        1. 09951-00320
  49. REMOVE TIGHT PLUG (COUNTER DRIVEN GEAR SIDE)
    1. Using a screwdriver with its tip wrapped with protective tape, remove the tight plug (counter driven gear side) from the pinion and counter driven gear sub-assembly.
      GTY615980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Tight Plug (Counter Driven Gear Side)
      *a Protective Tape
      NOTE:

      Be careful not to damage the pinion and counter driven gear sub-assembly.

  50. REMOVE TIGHT PLUG (DIFFERENTIAL DRIVEN PINION SIDE)
    1. Using a brass bar and a hammer, remove the tight plug (differential drive pinion side) from the pinion and counter driven gear sub-assembly.
      GTY639062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Tight Plug (Differential Drive Pinion Side)
      *a Brass Bar
      NOTE:

      Be careful not to damage the pinion and counter driven gear sub-assembly.

  51. REMOVE DIFFERENTIAL CASE ASSEMBLY
    1. Remove the differential case assembly from the automatic transaxle case sub-assembly.

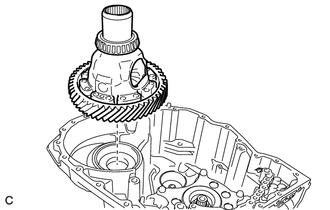

      GTY652994Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  52. REMOVE DIFFERENTIAL CASE TAPERED ROLLER BEARING (REAR SIDE OUTER RACE)

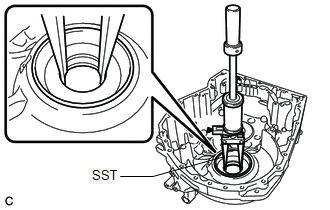

    1. Using SST, remove the differential case tapered roller bearing (rear side outer race) and shim from the automatic transaxle case sub-assembly.
      GTY633788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010
  53. REMOVE FRONT DRIVE SHAFT OIL SEAL LH
    1. Using SST and a hammer, remove the front drive shaft oil seal LH from the automatic transaxle case sub-assembly.
      GTY664818Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-60010
        1. 09951-00650
      • SST: 09950-70010
        1. 09951-07200

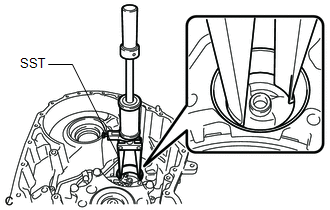

  54. REMOVE COUNTER DRIVEN GEAR TAPERED ROLLER BEARING (REAR SIDE OUTER RACE)
    1. Using SST, remove the counter driven gear tapered roller bearing (rear side outer race) and shim from the automatic transaxle case sub-assembly.
      GTY626058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09308-00010

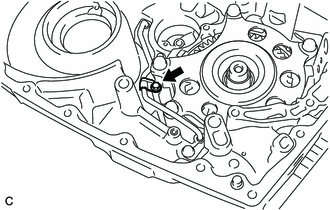

  55. REMOVE TRANSMISSION LUBE APPLY TUBE
    1. Remove the bolt and clamp from the automatic transaxle case sub-assembly.
      GTY653001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the transmission lube apply tube from the automatic transaxle case sub-assembly.

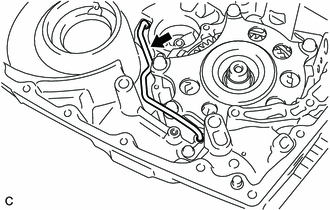

      GTY653002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

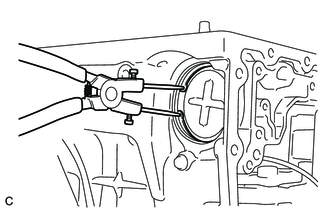

  56. REMOVE B-1 BRAKE PISTON
    1. Using snap ring pliers, remove the snap ring from the automatic transaxle case sub-assembly.
      GTY681426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Set the automatic transaxle case sub-assembly so that the B-1 brake piston is positioned downward.
    3. Apply compressed air (approximately 392 kPa (4.0 kgf/cm2 , 57 psi)) to the ATF hole.
      GTY407562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Make sure that the B-1 brake piston is positioned downward. Applying compressed air will remove the B-1 brake piston.
      • Use a piece of cloth to keep the B-1 brake piston from flying out.
    4. Remove the brake piston cover, B-1 brake piston and B-1 brake piston compression spring from the automatic transaxle case sub-assembly.
      GTY642649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 B-1 Brake Piston Compression Spring
      *2 B-1 Brake Piston
      *3 Brake Piston Cover
    5. Remove the 3 O-rings from the brake piston cover.
      GTY652931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Remove the O-ring from the B-1 brake piston.
      GTY652929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  57. REMOVE FRONT PLANETARY GEAR SUB-ASSEMBLY
    1. Disengage the wire harness clamp.

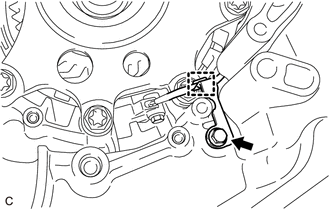

      GTY652939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and clamp from the automatic transaxle case sub-assembly.

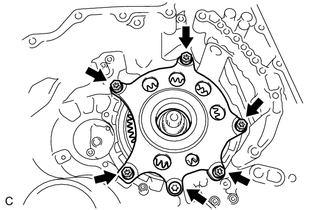

    3. Using a T55 "TORX" socket wrench, remove the 6 bolts.
      GTY652940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the front planetary gear sub-assembly from the automatic transaxle case sub-assembly.

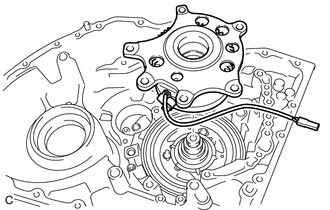

      GTY652937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the bolt, transmission revolution sensor (NC) and spacer from the front planetary gear sub-assembly.
      GTY661152Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Transmission Revolution Sensor (NC)
      *2 Spacer
  58. REMOVE PLANETARY SUN GEAR SUB-ASSEMBLY

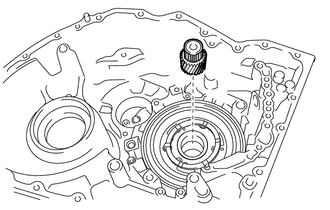

    1. Remove the planetary sun gear sub-assembly from the rear planetary gear assembly.
      GTY624129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

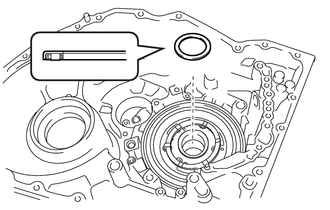

    2. Remove the thrust needle roller bearing from the rear planetary gear assembly.
      GTY675055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  59. REMOVE REAR PLANETARY GEAR ASSEMBLY

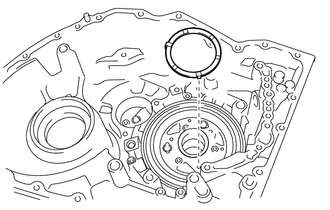

    1. Remove the No. 3 planetary carrier thrust washer from the rear planetary gear assembly.
      GTY624130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the automatic transaxle case sub-assembly.

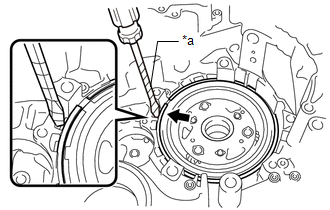

      GTY664262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the automatic transaxle case sub-assembly.

    3. Remove the one-way clutch assembly with rear planetary gear assembly from the C-2 clutch assembly.

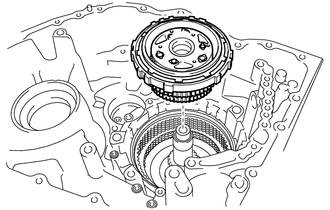

      GTY624125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the one-way clutch assembly from the rear planetary gear assembly.
      GTY624126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the No. 4 planetary carrier thrust washer from the rear planetary gear assembly.
      GTY624127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  60. INSPECT ONE-WAY CLUTCH ASSEMBLY

    See step  9, or see step  9, or see step  9

  61. INSPECT REAR PLANETARY GEAR ASSEMBLY

    See step  8, or see step  8, or see step  8

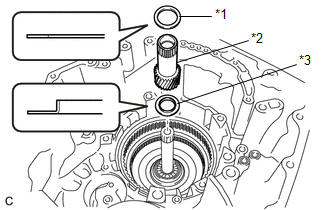

  62. REMOVE REAR PLANETARY SUN GEAR SUB-ASSEMBLY
    1. Remove the rear planetary sun gear sub-assembly from the C-2 clutch assembly.
      GTY685078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 4 Thrust Bearing Race
      *2 Rear Planetary Sun Gear Sub-assembly
      *3 No. 3 Thrust Bearing Race
    2. Remove the No. 4 thrust bearing race and No. 3 thrust bearing race from the rear planetary sun gear sub-assembly.
  63. INSPECT REAR PLANETARY SUN GEAR SUB-ASSEMBLY

    See step  6, or see step  6, or see step  6

  64. INSPECT CLEARANCE OF NO. 2 BRAKE

    See step  16, or see step  16, or see step  16

  65. INSPECT CLEARANCE OF C-2 CLUTCH

    See step  17, or see step  17, or see step  17

  66. REMOVE 1ST AND REVERSE BRAKE CLUTCH DISC

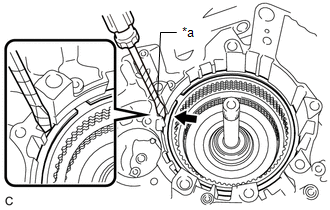

    1. Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the automatic transaxle case sub-assembly.
      GTY623022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the automatic transaxle case sub-assembly.

    2. Remove the 2 1st and reverse brake flanges, 5 1st and reverse brake clutch discs and 4 1st and reverse brake clutch plates from the automatic transaxle case sub-assembly.
      GTY617613Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 1st and Reverse Brake Flange
      *2 1st and Reverse Brake Clutch Disc
      *3 1st and Reverse Brake Clutch Plate
  67. INSPECT 1ST AND REVERSE BRAKE CLUTCH DISC

    See step  5, or see step  5, or see step  5

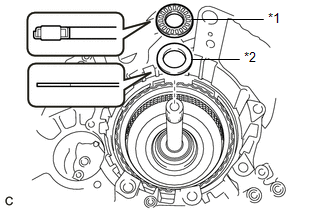

  68. REMOVE C-2 CLUTCH ASSEMBLY
    1. Remove the thrust needle roller bearing and No. 2 thrust bearing race from the C-2 clutch assembly.
      GTY683421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Thrust Needle Roller Bearing
      *2 No. 2 Thrust Bearing Race
    2. Remove the C-2 clutch assembly from the automatic transaxle case sub-assembly.

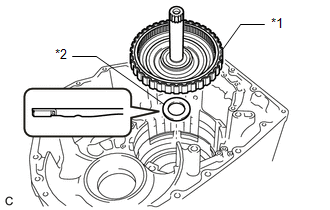

      GTY644628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 C-2 Clutch Assembly
      *2 Thrust Needle Roller Bearing
    3. Remove the thrust needle roller bearing from the C-2 clutch assembly.
  69. REMOVE NO. 2 CLUTCH DISC
    1. Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the intermediate shaft sub-assembly.
      GTY654339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the intermediate shaft sub-assembly.

    2. Remove the direct clutch flange, 4 No. 2 clutch discs and 4 No. 2 clutch plates from the intermediate shaft sub-assembly.
      GTY623543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Direct Clutch Flange
      *2 No. 2 Clutch Disc
      *3 No. 2 Clutch Plate
  70. INSPECT NO. 2 CLUTCH DISC

    See step  4, or see step  4, or see step  4

  71. REMOVE C-2 CLUTCH BALANCER
    1. Place SST on the C-2 clutch balancer and compress the clutch return with retainer spring sub-assembly with a press.
      GTY670496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09387-00020
    2. Using a snap ring expander, remove the snap ring from the intermediate shaft sub-assembly.
      NOTE:

      Do not expand the snap ring excessively.

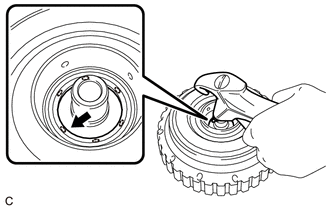

    3. Apply compressed air (approximately 392 kPa (4.0 kgf/cm2 , 57 psi)) to the ATF hole.
      GTY418625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

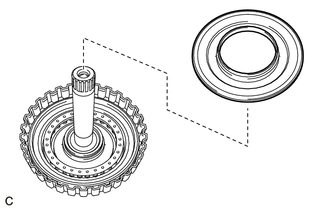

    4. Remove the C-2 clutch balancer from the intermediate shaft sub-assembly.
      GTY408097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  72. REMOVE CLUTCH RETURN WITH RETAINER SPRING SUB-ASSEMBLY
    1. Remove the clutch return with retainer spring sub-assembly from the intermediate shaft sub-assembly.

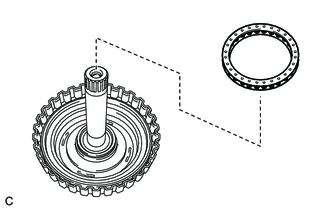

      GTY653258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  73. INSPECT CLUTCH RETURN WITH RETAINER SPRING SUB-ASSEMBLY

    See step  11, or see step  11, or see step  11

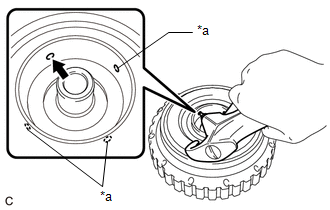

  74. REMOVE C-2 CLUTCH PISTON
    1. Cover the ATF holes shown in the illustration and apply compressed air (approximately 392 kPa (4.0 kgf/cm2 , 57 psi)) to the ATF hole.
      GTY642877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a ATF Hole

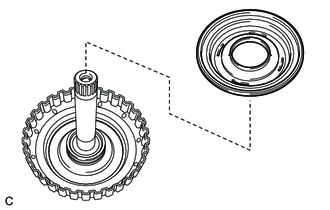

    2. Remove the C-2 clutch piston from the intermediate shaft sub-assembly.
      GTY408098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  75. REMOVE INTERMEDIATE SHAFT O-RING
    1. Remove the 2 intermediate shaft O-rings from the intermediate shaft sub-assembly.
      GTY652234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  76. REMOVE 1ST AND REVERSE BRAKE PISTON
    1. Place SST on the 1st and reverse brake return spring sub-assembly and compress it with a press.

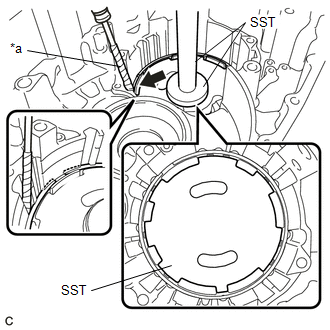

      GTY657280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      • SST: 09387-00140
      • SST: 09950-60010
        1. 09951-00650
      • SST: 09950-70010
        1. 09951-07200
      NOTE:
      • Place SST on the 1st and reverse brake return spring sub-assembly as shown in the illustration.
      • Make sure that SST does not interfere with the 1st and reverse brake piston.
    2. Using a screwdriver with its tip wrapped with protective tape, remove the snap ring from the automatic transaxle case sub-assembly.
      NOTE:

      Be careful not to damage the automatic transaxle case sub-assembly.

    3. Remove the 1st and reverse brake return spring sub-assembly from the 1st and reverse brake piston.

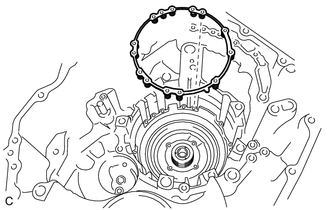

      GTY653170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

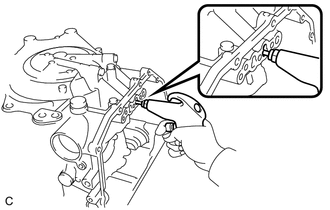

    4. Apply compressed air (approximately 392 kPa (4.0 kgf/cm2 , 57 psi)) to the ATF hole to remove the 1st and reverse brake piston from the automatic transaxle case sub-assembly.
      GTY418621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the 2 O-rings from the 1st and reverse brake piston.
      GTY653168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  77. INSPECT 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY

    See step  12, or see step  12, or see step  12

  78. REMOVE NO. 1 THRUST BEARING RACE
    1. Remove the No. 1 thrust bearing race from the automatic transaxle case sub-assembly.

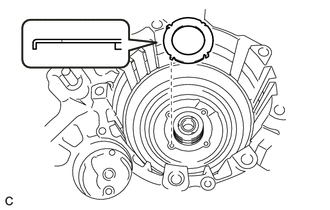

      GTY653172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  79. REMOVE DIRECT CLUTCH DRUM OIL SEAL RING
    1. Remove the 2 direct clutch drum oil seal rings from the automatic transaxle case sub-assembly.

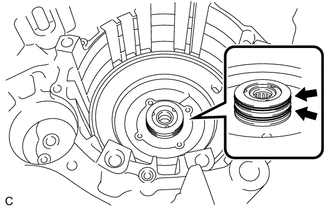

      GTY653169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  80. REMOVE BREATHER PLUG
    1. Disengage each claw and remove the breather plug from the automatic transaxle case sub-assembly.
      GTY656149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Push out
    2. Using a screwdriver with its tip wrapped with protective tape, remove the O-ring from the breather plug.
      GTY656720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Be careful not to damage the breather plug.

  81. REMOVE MANUAL VALVE LEVER SHAFT OIL SEAL
    1. Using a screwdriver with its tip wrapped with protective tape, remove the manual valve lever shaft oil seal from the automatic transaxle case sub-assembly.
      GTY654364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
      NOTE:

      Be careful not to damage the automatic transaxle case sub-assembly.

  82. REMOVE NO. 1 TRANSAXLE CASE PLUG
    1. Remove the 4 No. 1 transaxle case plugs from the automatic transaxle case sub-assembly.

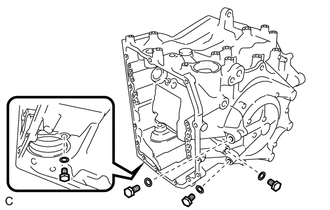

      GTY668356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 O-rings from the 4 No. 1 transaxle case plugs.
    3. Remove the 3 No. 1 transaxle case plugs from the transaxle housing.

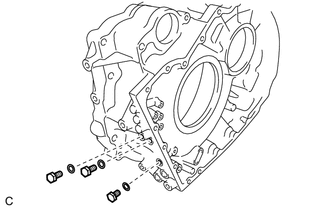

      GTY681468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 3 O-rings from the 3 No. 1 transaxle case plugs.
  83. REMOVE NO. 2 TRANSAXLE CASE PLUG
    1. Using a T55 "TORX" socket wrench, remove the 2 No. 2 transaxle case plugs from the transaxle housing.
      GTY653198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 O-rings from the 2 No. 2 transaxle case plugs.
    3. Using a T55 "TORX" socket wrench, remove the 2 No. 2 transaxle case plugs from the automatic transaxle case sub-assembly.

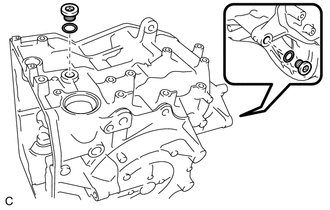

      GTY653195Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 O-rings from the 2 No. 2 transaxle case plugs.
scientia non olet · About LEMON Manuals
