Removal [09/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [09/2015 - 08/2016] , or refer to REMOVAL [08/2016 - 08/2019] , or refer to REMOVAL [08/2019 - ]

  2. REMOVE TRANSMISSION WIRE
    1. Disconnect the transmission revolution sensor (NC3) connector.
      GTY681389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

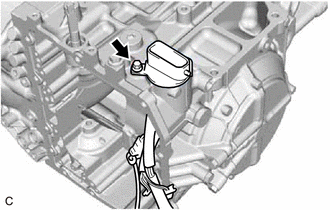

    2. Remove the bolt and transmission wire from the automatic transmission case sub-assembly.
      GTY671644Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
