Removal [09/2015 - ]: Procedure

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE TRANSMISSION VALVE BODY ASSEMBLY

    Refer to REMOVAL [09/2015 - 08/2016] , or refer to REMOVAL [08/2016 - 08/2019] , or refer to REMOVAL [08/2019 - ]

  2. REMOVE TRANSMISSION REVOLUTION SENSOR (NC3)
    1. Disconnect the transmission revolution sensor (NC3) connector.

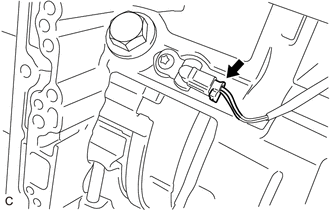

      GTY681389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a T30 "TORX" socket wrench, remove the bolt and transmission revolution sensor (NC3) from the automatic transaxle case sub-assembly.

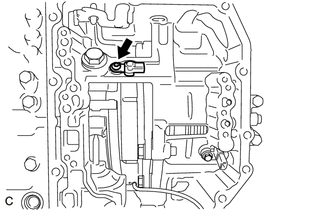

      GTY407682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE TRANSMISSION REVOLUTION SENSOR (NT)
    1. Remove the bolt and transmission revolution sensor (NT) from the automatic transaxle case sub-assembly.

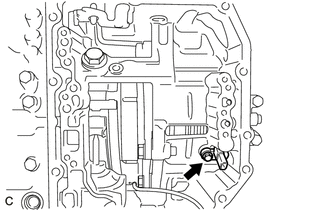

      GTY407681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
