Adjustment [11/2021 - ]: Procedure

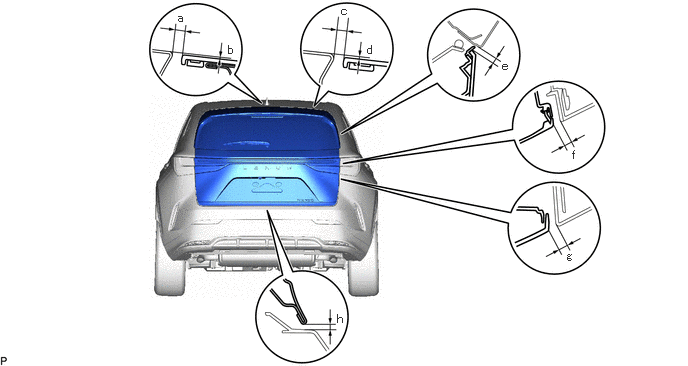

1. Check that the clearance measurements of areas a through h are within each standard range.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   STANDARD CLEARANCE



   Area	Measurement	Area	Measurement
   a	5.85 to 9.85 mm (0.23 to 0.388 in.)	b	-0.85 to 3.15 mm (-0.0335 to 0.124 in.)
   c	5.85 to 9.85 mm (0.23 to 0.388 in.)	d	-0.85 to 3.15 mm (-0.0335 to 0.124 in.)
   e	2.85 to 7.85 mm (0.112 to 0.309 in.)	f	3.50 to 7.50 mm (0.138 to 0.295 in.)
   g	2.75 to 6.75 mm (0.108 to 0.266 in.)	h	3.85 to 7.85 mm (0.152 to 0.309 in.)

Refer to PROCEDURE - Step 2 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 2 [03/2024 - ]

Refer to PROCEDURE - Step 3 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 3 [03/2024 - ]

Refer to PROCEDURE - Step 7 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 7 [03/2024 - ]

Refer to PROCEDURE - Step 8 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 8 [03/2024 - ]

Refer to PROCEDURE - Step 9 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 9 [03/2024 - ]

Refer to PROCEDURE - Step 10 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 10 [03/2024 - ]

Refer to PROCEDURE - Step 34 [11/2021 - 03/2024] , or refer to PROCEDURE - Step 34 [03/2024 - ]

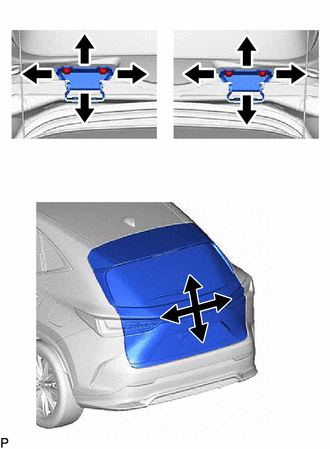

1. Loosen the 4 hinge bolts on the back door and adjust the back door position.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Tighten the 4 hinge bolts on the vehicle body after adjustment.

   Torque: 19.5 N.m (199 kgf/cm, 14 ft.lbf)

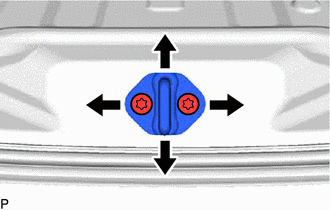

3. Using a T40 "TORX" socket wrench, slightly loosen the 2 striker mounting screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Using a brass bar and a hammer, hit the striker to adjust its position.
5. Using a T40 "TORX" socket wrench, tighten the 2 striker mounting screws after adjustment.

   Torque: 23 N.m (235 kgf/cm, 17 ft.lbf)
