Removal [12/2021 - ]: Procedure

DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

WARNING:

Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
If the airbag deploys for any reason, it may cause a serious accident.

GTY684647

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to REMOVAL [12/2021 - ]

REMOVE DOOR ASSIST GRIP COVER LH

Refer to PROCEDURE - Step 3
REMOVE FRONT DOOR INSIDE HANDLE BEZEL LH

Refer to PROCEDURE - Step 4
REMOVE COURTESY LIGHT ASSEMBLY

Refer to PROCEDURE - Step 1
REMOVE NO. 1 FRONT DOOR STIFFENER CUSHION
Refer to PROCEDURE - Step 6
REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
Refer to PROCEDURE - Step 7
REMOVE DOOR FRAME GARNISH LH

Refer to PROCEDURE - Step 23
REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP LH
Refer to PROCEDURE - Step 9
REMOVE FRONT DOOR SERVICE HOLE COVER LH

Refer to PROCEDURE - Step 27
REMOVE FRONT DOOR GLASS SUB-ASSEMBLY LH

Refer to PROCEDURE - Step 28
REMOVE FRONT DOOR GLASS RUN LH
Refer to PROCEDURE - Step 30

REMOVE FRONT DOOR BELT MOULDING ASSEMBLY LH

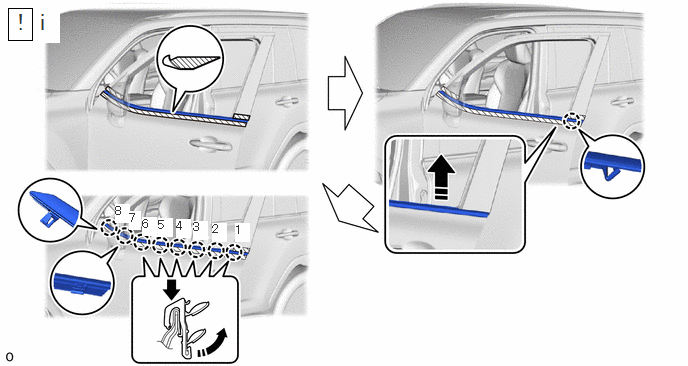

Fig 1: Front Door Belt Moulding Assembly LH Detachment Sequence

GTY1056587

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

Push in this Direction

Remove the front door belt moulding assembly LH by the following procedure.
1. Put protective tape around the front door belt moulding assembly LH.

2. Using moulding remover A, detach the claw as shown in the illustration.

3. Detach the claw and remove the front door belt moulding assembly LH in the order shown in the illustration.
