Removal [12/2021 - ]: Procedure

  1. PRECAUTION
    NOTE:

    After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

    Refer to BEFORE DISCONNECTING BATTERY [12/2021 - ]
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:
    • Wait at least 60 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    • If the airbag deploys for any reason, it may cause a serious accident.
    GTY684647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Refer to REMOVAL [12/2021 - ]

  3. REMOVE DOOR ASSIST GRIP COVER
    Refer to PROCEDURE - Step 3
  4. REMOVE FRONT DOOR INSIDE HANDLE BEZEL
    Refer to PROCEDURE - Step 4
  5. REMOVE COURTESY LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  6. REMOVE NO. 1 FRONT DOOR STIFFENER CUSHION

    Refer to PROCEDURE - Step 6

  7. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 7

  8. REMOVE DOOR FRAME GARNISH LH
    Refer to PROCEDURE - Step 23
  9. REMOVE FRONT DOOR GLASS INNER WEATHERSTRIP LH

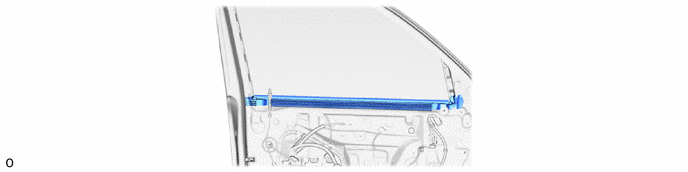

    1. GTY1058636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE FRONT DOOR SERVICE HOLE COVER LH
    Refer to PROCEDURE - Step 27
  11. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY LH
    Refer to PROCEDURE - Step 28
  12. REMOVE FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 29

  13. REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
    1. GTY1055602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a T25 "TORX" socket wrench, remove the 3 "TORX" screws and power window regulator motor assembly LH from the front door window regulator sub-assembly LH.
