Disassembly [04/2013 - 10/2017]: Procedure

  1. REMOVE BACK DOOR ASSIST GRIP
    1. Disengage the 2 claws and guide, and open the cover.
      GTY470311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and back door assist grip.
      GTY464343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE LUGGAGE COMPARTMENT DOOR COVER
    1. Remove the 14 clips.
      GTY469288Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

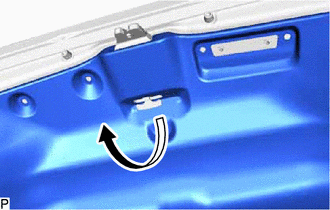

    2. Remove the luggage compartment door cover as shown in the illustration.
      GTY459626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER LH
    1. Remove the 3 clips and luggage compartment door hinge cover LH.
      GTY465309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE LUGGAGE COMPARTMENT DOOR HINGE COVER RH
    1. Remove the 3 clips and luggage compartment door hinge cover RH.
      GTY470528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE LUGGAGE COMPARTMENT DOOR CUSHION
    1. Disengage the 4 claws to remove the 4 luggage compartment door cushions.
      GTY470524Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE LUGGAGE COMPARTMENT KEY CYLINDER PROTECTOR
    1. Remove the nut and luggage compartment key cylinder protector.
      GTY465311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE LUGGAGE COMPARTMENT DOOR LOCK CYLINDER ASSEMBLY

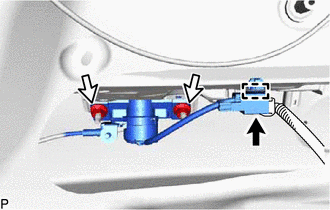

    1. Disconnect the connector.
      GTY465310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the clamp.
    3. Remove the 2 nuts.
    4. Disconnect the luggage compartment door lock assembly to remove the luggage compartment door lock cylinder assembly.
      GTY470527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the c-ring to remove the door unlock switch sub-assembly.
      GTY465305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE LUGGAGE COMPARTMENT DOOR LOCK ASSEMBLY

    Refer to PROCEDURE - Step 4

  9. REMOVE LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [04/2013 - 09/2020]

  10. REMOVE LUGGAGE ELECTRICAL KEY SWITCH

    See step  2

  11. REMOVE REAR TELEVISION CAMERA ASSEMBLY (w/ Rear View Monitor System)

    Refer to PROCEDURE - Step 2

  12. REMOVE LICENSE PLATE LIGHT ASSEMBLY (for LH Side)

    Refer to PROCEDURE - Step 2

  13. REMOVE LICENSE PLATE LIGHT ASSEMBLY (for RH Side)

    HINT:

    Use the same procedure as for the LH side.
